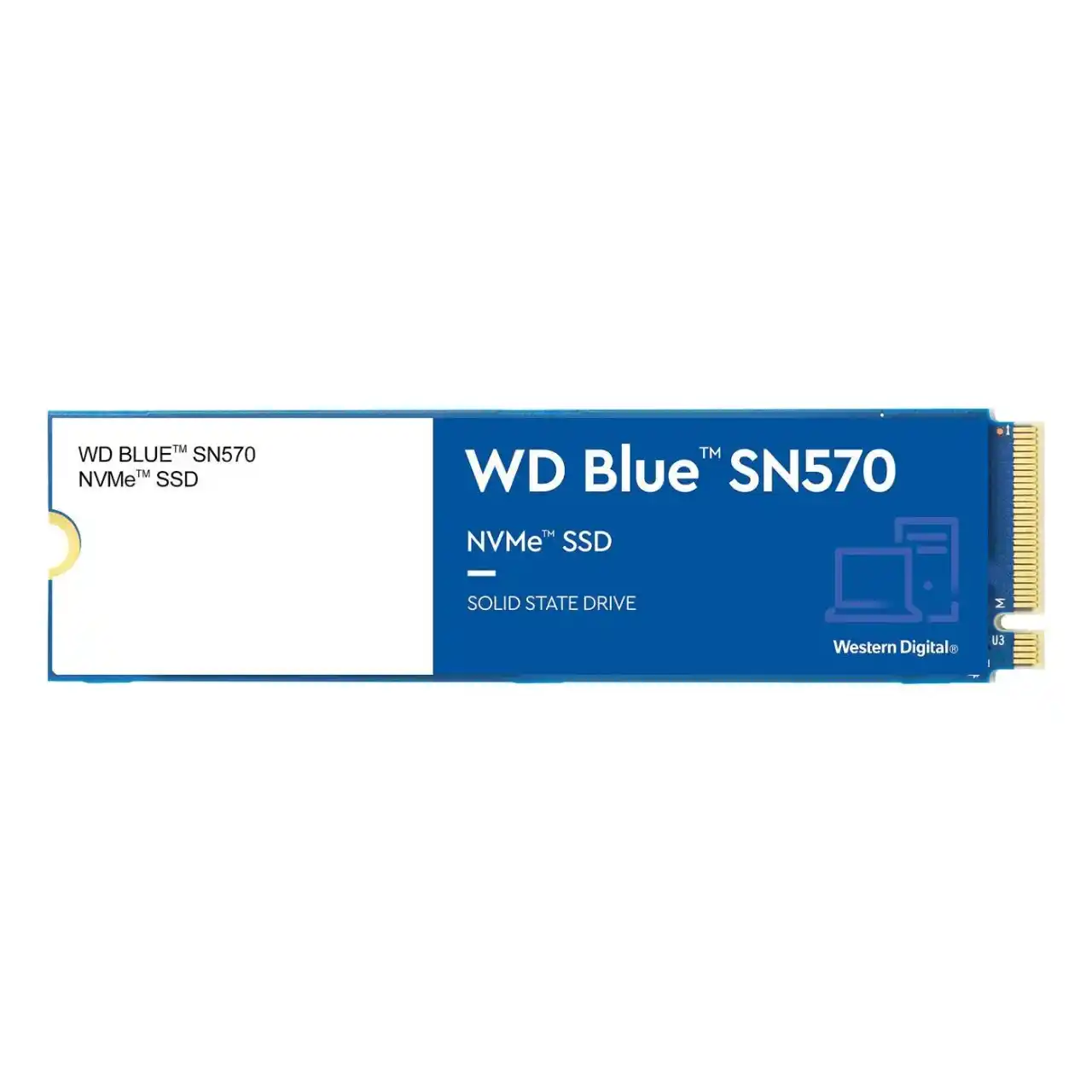

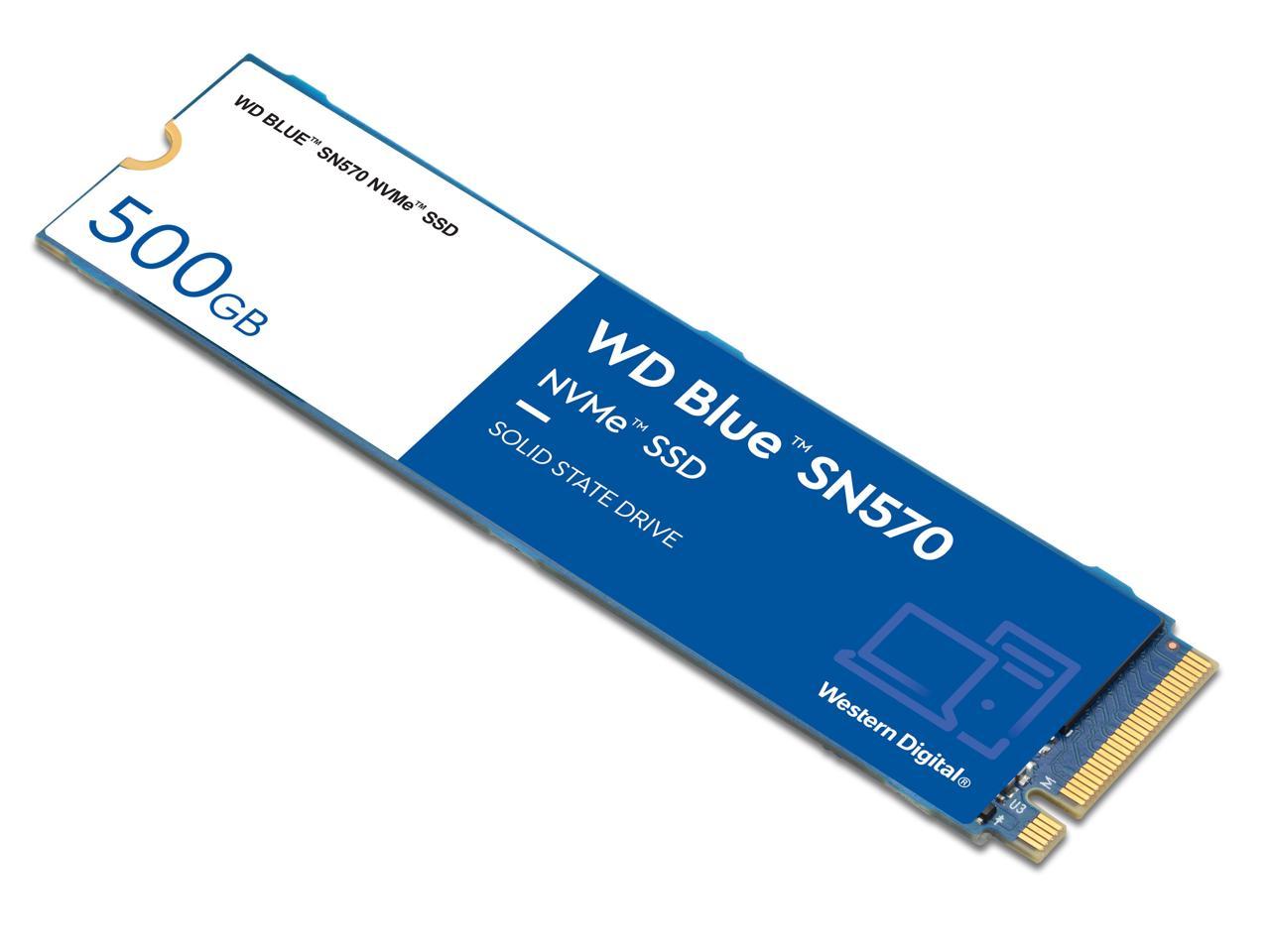

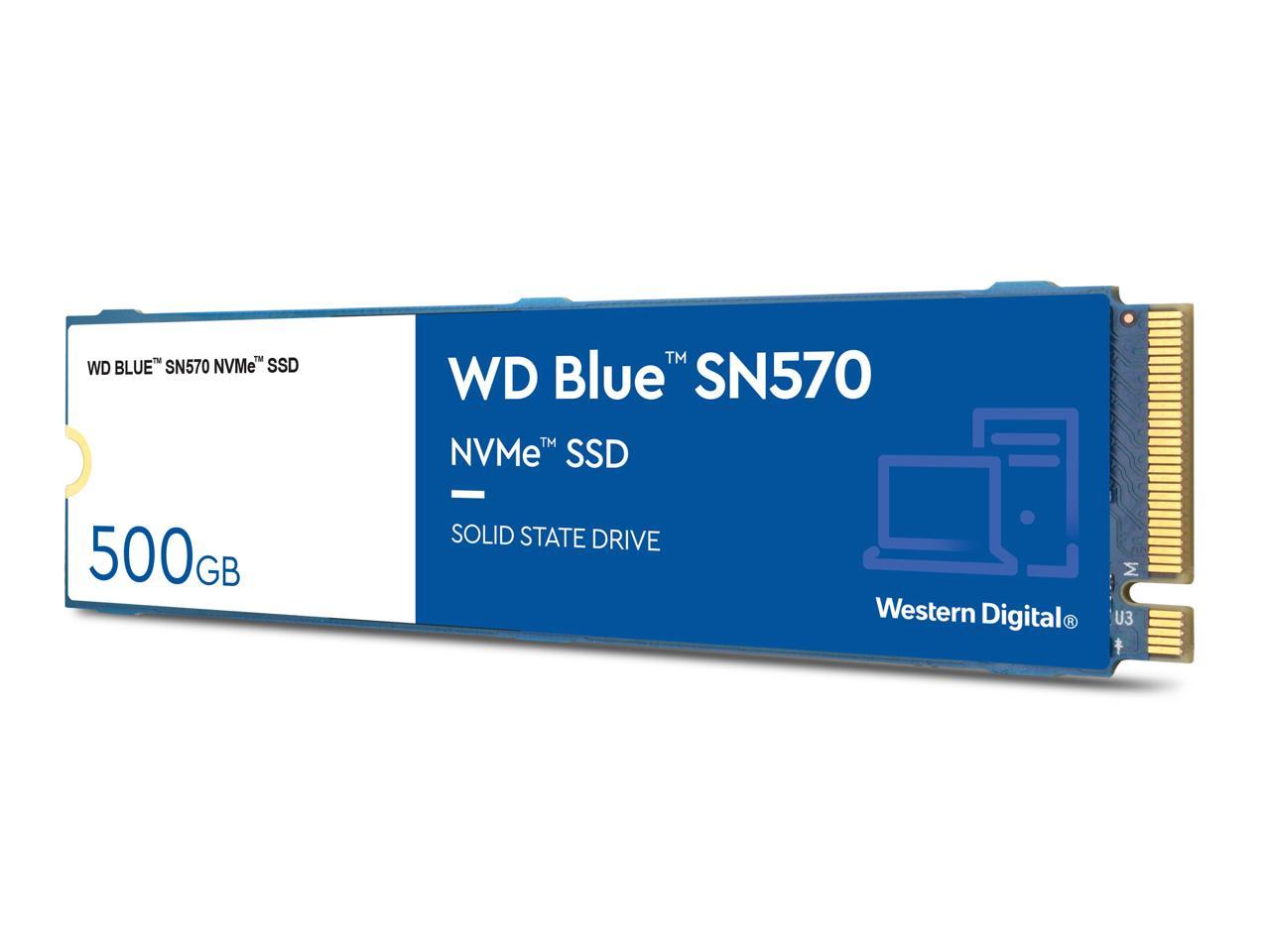

Western Digital WD Blue SN570 NVMe M.2 2280 500GB PCI-Express 3.0 x4 TLC Internal Solid State Drive (SSD) WDS500G3B0C wholesale

* NOTE: Image may not exactly match the product

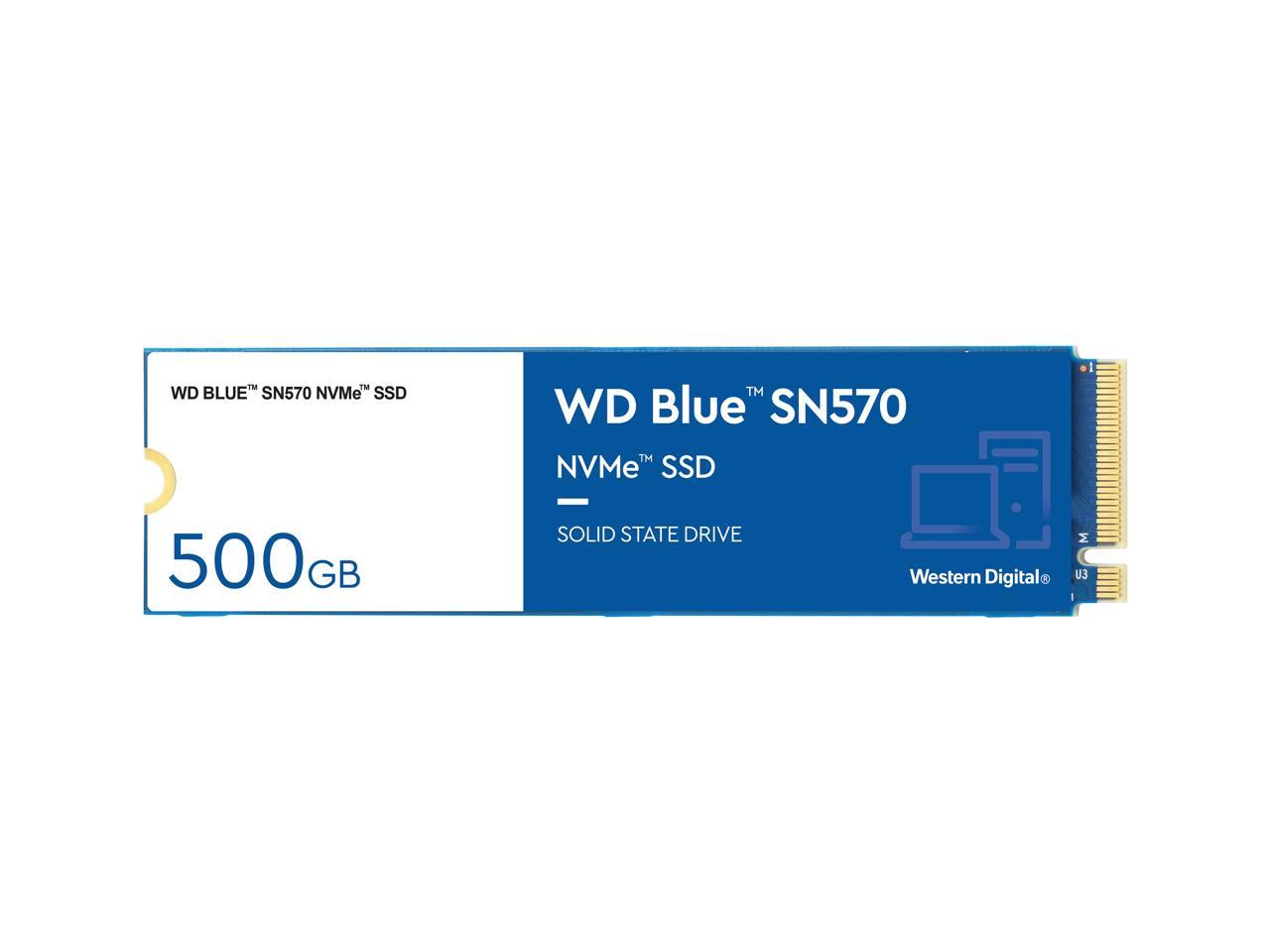

Western Digital WD Blue SN570 NVMe M.2 2280 500GB PCI-Express 3.0 x4 TLC Internal Solid State Drive (SSD) WDS500G3B0C

The Western Digital WD Blue SN570 is a high-performance 500GB NVMe M.2 SSD that delivers exceptional speed and reliability for everyday computing. Featuring PCIe 3.0 x4 interface and TLC NAND technology, it offers read speeds up to 3,500 MB/s – up to 5x faster than traditional SATA SSDs. The compact M.2 2280 form factor saves space while providing efficient power consumption for extended battery life in laptops. Built with WD’s proven reliability and backed by a 5-year limited warranty, this SSD accelerates boot times, application launches, and file transfers while offering excellent value for users upgrading from mechanical drives or older SSDs seeking mainstream NVMe performance.

Quote5 pcs(MOQ)

Inquiry

Height	2.38mm
Terabytes Written (TBW)	300TB
Width	22.00mm
Used For	Consumer
Device Type	Internal Solid State Drive (SSD)

Additional information

Height	2.38mm
Terabytes Written (TBW)	300TB
Width	22.00mm
Used For	Consumer
Device Type	Internal Solid State Drive (SSD)
Brand	Western Digital
Capacity	500GB
Max Shock Resistance	1 500G @0.5 ms half sine
Products Status	New
Depth	80.00mm
Storage Temperature	-40C ~ +85C
Application	Desktop
Series	Blue SN570 NVMe
MTTF	1.5M Hours
Interface	PCIe 3.0 x4
Max Sequential Write	Up to 2300 MB/s
Max Sequential Read	Up to 3500 MB/s
Power Consumption (Idle)	Average Active Power: 90 mW, PS3 (Low Power): 30 mW, PS4 (Sleep): 5 mW
4KB Random Write	Up to 390 000 IOPS
Max Vibration Resistance	Non-operating Vibration: 4.9 gRMS 7-800 Hz 3 axes, Operating Vibration: 5 gRMS 10-2000 Hz 3 axes
Model	WDS500G3B0C
Operating Temperature	0C ~ +70C
Power Consumption (Active)	4.0W
Weight	6.50g

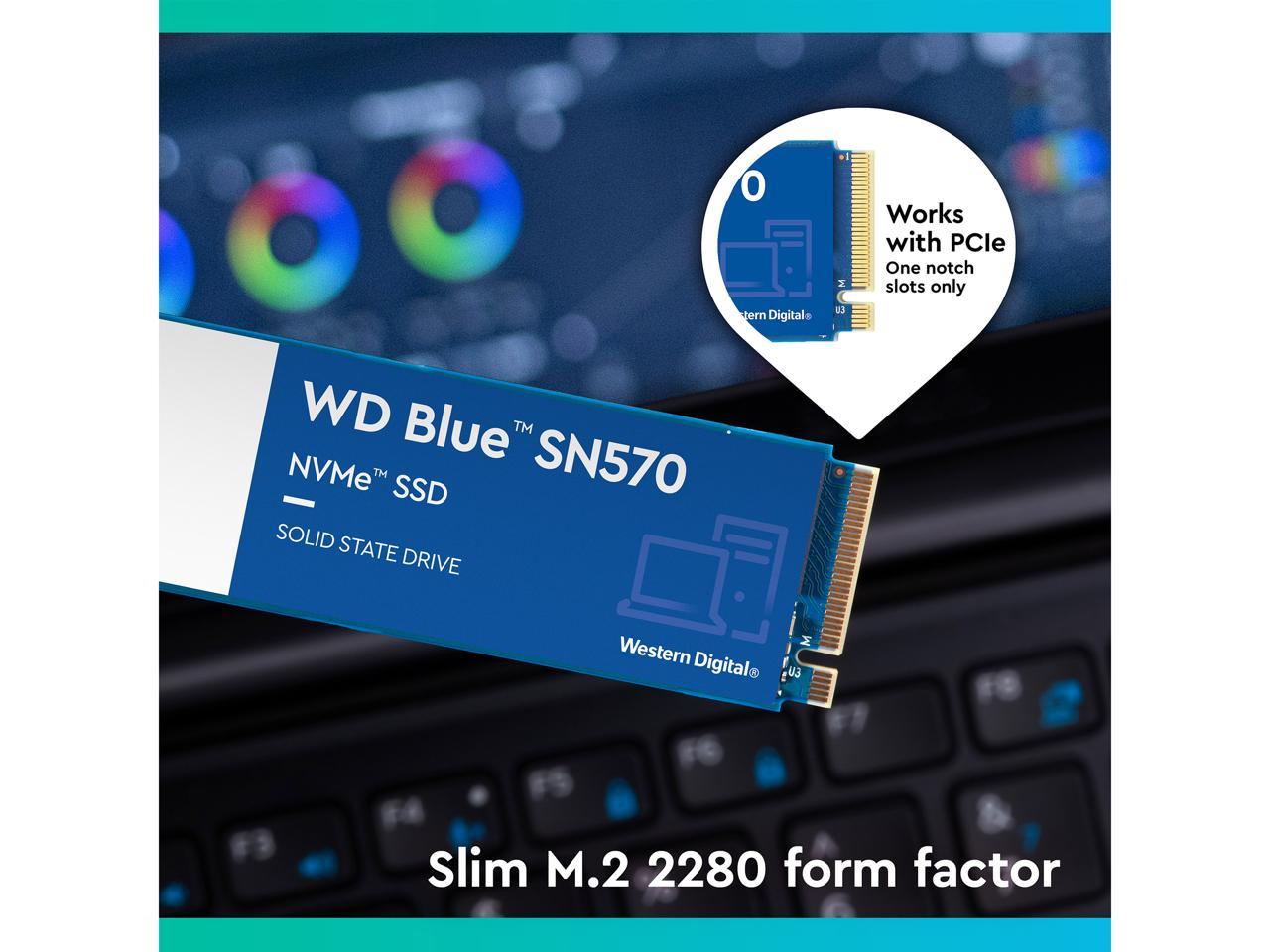

Form Factor	M.2 2280
Memory Components	TLC
4KB Random Read	Up to 360 000 IOPS
