Brand | Intel |
---|---|
Products Status | New |
Series | Intel Xeon W |
Part Number | W-2295 |
Model | CD8069504393000 |
Shipping Media | TRAY |
Application | Workstation |
CPU Socket Type | FCLGA2066 |
Code Name | Cascade Lake |
Total Cores | 18 |
Total Threads | 36 |
Max Turbo Frequency | 4.60 GHz |
Processor Base Frequency | 3.00 GHz |
Cache | 24.75 MB |
Bus Speed | 8 GT/s |
TDP | 165 W |
Manufacturing Tech | 14 nm |
64-Bit Support | Yes |
Hyper-Threading Support | Yes |
Embedded Options Available | No |
Max Memory Size | 1 TB |
Memory Types | DDR4 2933 |
Max # of Memory Channels | 4 |
ECC Memory Supported | Yes |
Scalability | 1S Only |
PCI Express Revision | 3 |
PCI Express Configurations | x16, x4, x8 |
Max # of PCI Express Lanes | 48 |
Max CPU Configuration | 1 |
Instruction Set | 64-bit |
Package Size | 45mm x 52.5mm |
Max Memory Bandwidth | 93.85 GB/s |
Physical Address Extensions | 46-bit |

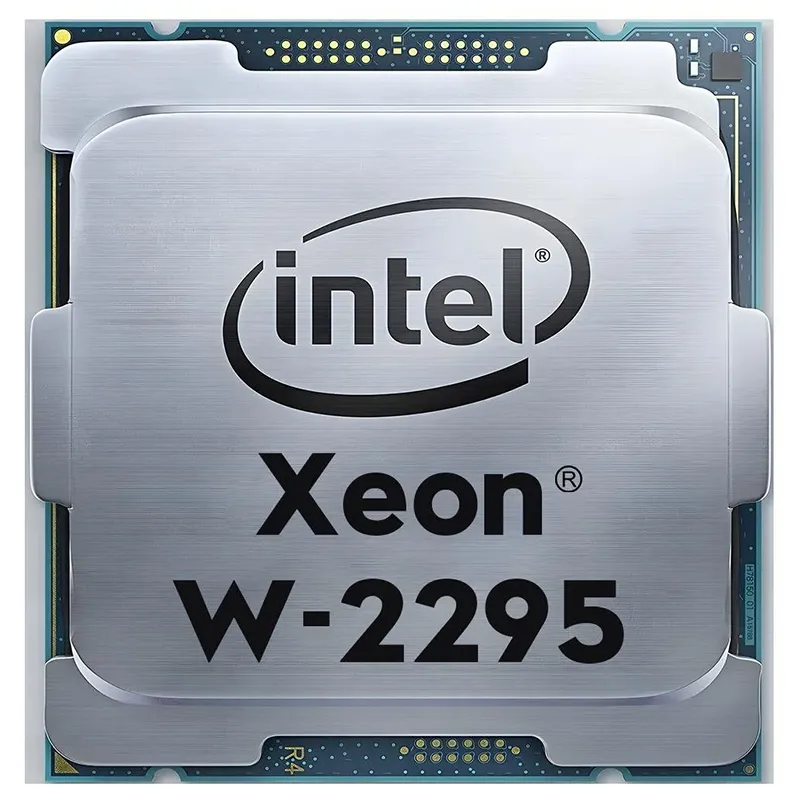

Intel Xeon W-2295 Processor (24.75M Cache, 3.00 GHz)
The Intel Xeon W-2295 is a high-performance 18-core, 36-thread workstation processor designed for demanding professional applications. Operating at 3.0 GHz base frequency with turbo boost up to 4.6 GHz, it delivers exceptional computational power backed by 24.75MB of smart cache for rapid data access. Built on 14nm architecture with support for up to 1TB of ECC memory across 6 channels, this processor excels in memory-intensive workloads while ensuring data integrity. Key features include 44 PCIe 3.0 lanes for extensive expansion capabilities, advanced security technologies, and optimized performance for CAD, 3D rendering, scientific computing, and content creation. The W-2295 represents the pinnacle of Intel’s workstation processor lineup, offering professional users uncompromising performance, reliability, and scalability for mission-critical applications.
