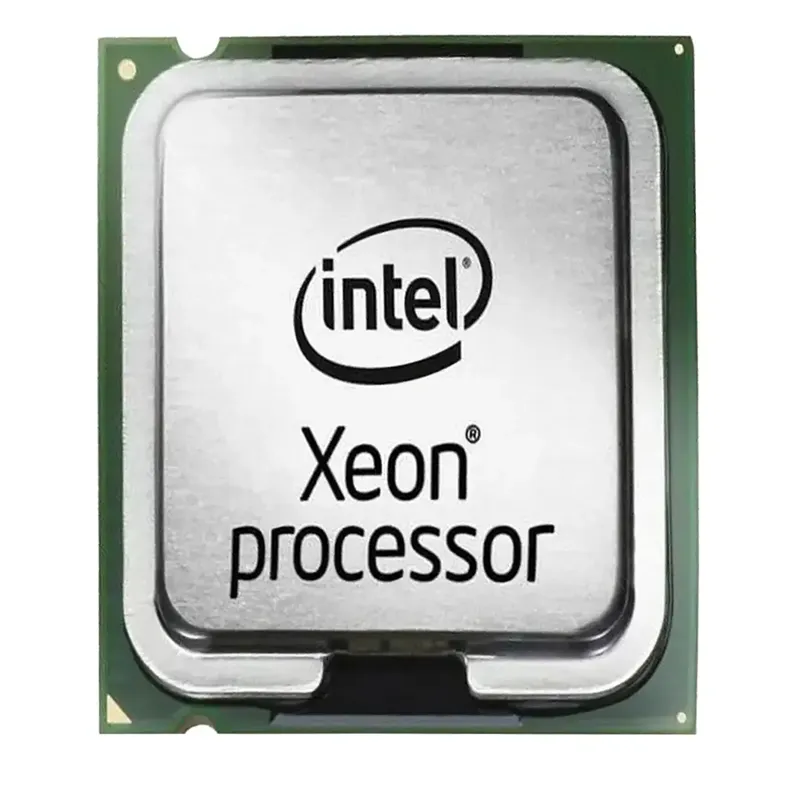

Intel Xeon W-2225 Processor (8.25M Cache, 4.10 GHz)

The Intel Xeon W-2225 is a professional-grade 4-core, 8-thread processor designed for demanding workstation applications. Operating at a base frequency of 4.10 GHz with 8.25MB of smart cache, it delivers exceptional single-threaded performance for CAD, content creation, and engineering workflows. Built on Intel’s advanced architecture, it supports ECC memory for mission-critical reliability, PCIe 3.0 lanes for high-speed connectivity, and Intel’s advanced security features. The processor excels in professional applications requiring both computational power and system stability, making it ideal for architects, engineers, and creative professionals who need workstation-class performance with enterprise-grade reliability in a compact, energy-efficient package.

$413.251 Piece(MOQ)

Premium Client Discounts Available

BrandIntel
Products StatusNew
SeriesIntel Xeon W
Part NumberW-2225
ModelCD8069504394102
Brand

Intel

Products Status

New

Series

Intel Xeon W

Part Number

W-2225

Model

CD8069504394102

Shipping Media

TRAY

Application

Workstation

CPU Socket Type

FCLGA2066

Code Name

Cascade Lake

Total Cores

4

Total Threads

8

Max Turbo Frequency

4.60 GHz

Processor Base Frequency

4.10 GHz

Cache

8.25 MB

Bus Speed

8 GT/s

TDP

105 W

Manufacturing Tech

14 nm

64-Bit Support

Yes

Hyper-Threading Support

Yes

Embedded Options Available

No

Max Memory Size

1 TB

Memory Types

DDR4 2933

Max # of Memory Channels

4

ECC Memory Supported

Yes

Scalability

1S Only

PCI Express Revision

3

PCI Express Configurations

x16, x4, x8

Max # of PCI Express Lanes

48

Max CPU Configuration

1

Instruction Set

64-bit

Package Size

45mm x 52.5mm

Max Memory Bandwidth

93.85 GB/s

Physical Address Extensions

46-bit
