| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon W |
| Part Number | W-1390T |
| Model | CM8070804497518 |
| Shipping Media | TRAY |
| Application | Workstation |
| CPU Socket Type | FCLGA1200 |
| Code Name | Rocket Lake |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.90 GHz |
| Processor Base Frequency | 1.50 GHz |
| Cache | 16 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 35 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 128 GB |
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 4 |
| PCI Express Configurations | 1×8+3×4, 2×8+1×4, Up to 1×16+1×4 |
| Max # of PCI Express Lanes | 20 |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| Execution Units | 32 |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Intel Quick Sync Video | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x4C90 |
| T JUNCTION | 100C |
| Package Size | 37.5 mm x 37.5 mm |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
| Max Memory Bandwidth | 50 GB/s |
* NOTE: Image may not exactly match the product

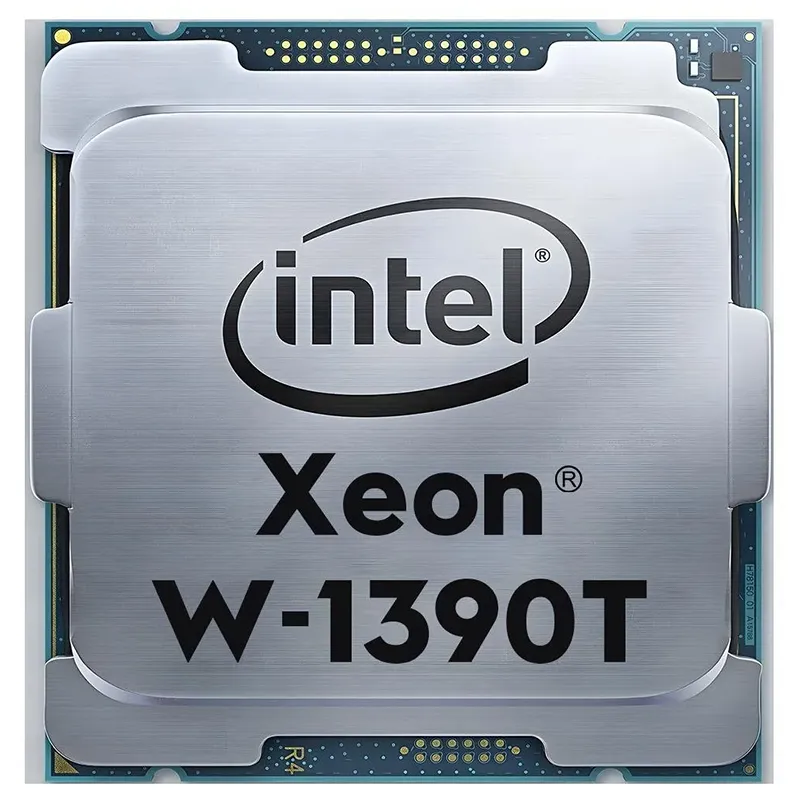

Intel Xeon W-1390T Processor (16M Cache, up to 4.90 GHz)
The Intel Xeon W-1390T is a high-performance 8-core, 16-thread workstation processor designed for professional applications requiring exceptional computing power with energy efficiency. Operating at a base frequency of 1.5 GHz and boosting up to 4.9 GHz, this 35W TDP processor delivers enterprise-grade performance in a thermally constrained package. With 16MB of Intel Smart Cache, support for up to 128GB of ECC memory, and integrated Intel UHD Graphics P750, it excels in CAD, content creation, virtualization, and data analysis workloads. The processor features Intel vPro technology for enhanced security and remote management, making it ideal for compact workstations, embedded systems, and professional applications where space, power consumption, and heat generation are critical considerations while maintaining uncompromising performance standards.
