| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Workstation |
| CPU Socket Type | FCLGA1200 |
| Total Threads | 16 |
| Total Cores | 8 |
| Cache | 16 MB |
| TDP | 80 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 2.80 GHz |
| Memory Types | DDR4-3200 |
| Series | Intel Xeon W |
| Part Number | W-1390 |
| Model | CM8070804497319 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 128 GB |
| Code Name | Rocket Lake |
| Max Turbo Frequency | 5.20 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 2 |
| Max # of PCI Express Lanes | 20 |
| PCI Express Revision | 4 |
| Package Size | 37.5 mm x 37.5 mm |
| Embedded Options Available | No |
| Scalability | 1S Only |
| ECC Memory Supported | Yes |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| PCI Express Configurations | 1×8+3×4, 2×8+1×4, Up to 1×16+1×4 |
| Max Memory Bandwidth | 50 GB/s |
| Bus Speed | 8 GT/s |
| T JUNCTION | 100C |
| # of Displays Supported | 3 |
| Intel Quick Sync Video | Yes |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| Device ID | 0x4C90 |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
| Execution Units | 32 |
| OpenCL* Support | 3 |
* NOTE: Image may not exactly match the product

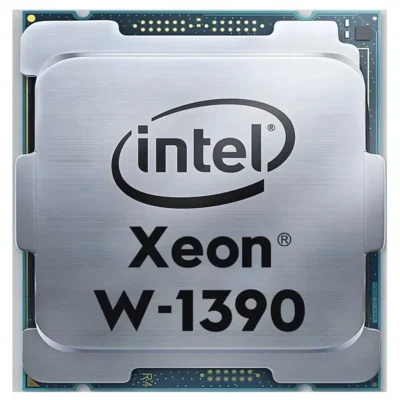

Intel Xeon W-1390 Processor (16M Cache, up to 5.20 GHz)
The Intel Xeon W-1390 is a high-performance 8-core, 16-thread workstation processor designed for demanding professional applications. With a base clock of 2.8 GHz and turbo boost up to 5.2 GHz, it delivers exceptional single-threaded performance while maintaining robust multi-core capabilities. The processor features 16MB of Intel Smart Cache, support for up to 128GB of ECC memory, and advanced security features including Intel vPro technology. Built on Intel’s 14nm process, it offers superior reliability and stability for mission-critical workloads in content creation, engineering, data analysis, and virtualization. The W-1390 provides workstation-grade performance with enterprise-level features, making it ideal for professionals who require both computational power and system reliability without the complexity of dual-socket configurations.
