| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Workstation |
| CPU Socket Type | FCLGA1200 |
| Total Threads | 20 |
| Total Cores | 10 |
| Cache | 20 MB |
| TDP | 80 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 3.20 GHz |
| Memory Types | DDR4-2933 |
| Series | Intel Xeon W |
| Part Number | W-1290 |
| Model | CM8070104379111 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 128 GB |
| Code Name | Comet Lake |
| Max Turbo Frequency | 5.20 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 2 |
| Max # of PCI Express Lanes | 16 |
| PCI Express Revision | 3 |
| Package Size | 37.5mm x 37.5mm |
| Embedded Options Available | No |
| Scalability | 1S Only |
| ECC Memory Supported | Yes |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| PCI Express Configurations | 1×8+2×4, 2×8, Up to 1×16 |
| Max Memory Bandwidth | 45.8 GB/s |
| Bus Speed | 8 GT/s |
| T JUNCTION | 100C |
| # of Displays Supported | 3 |
| Intel Quick Sync Video | Yes |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Device ID | 0x9BC6 |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
* NOTE: Image may not exactly match the product

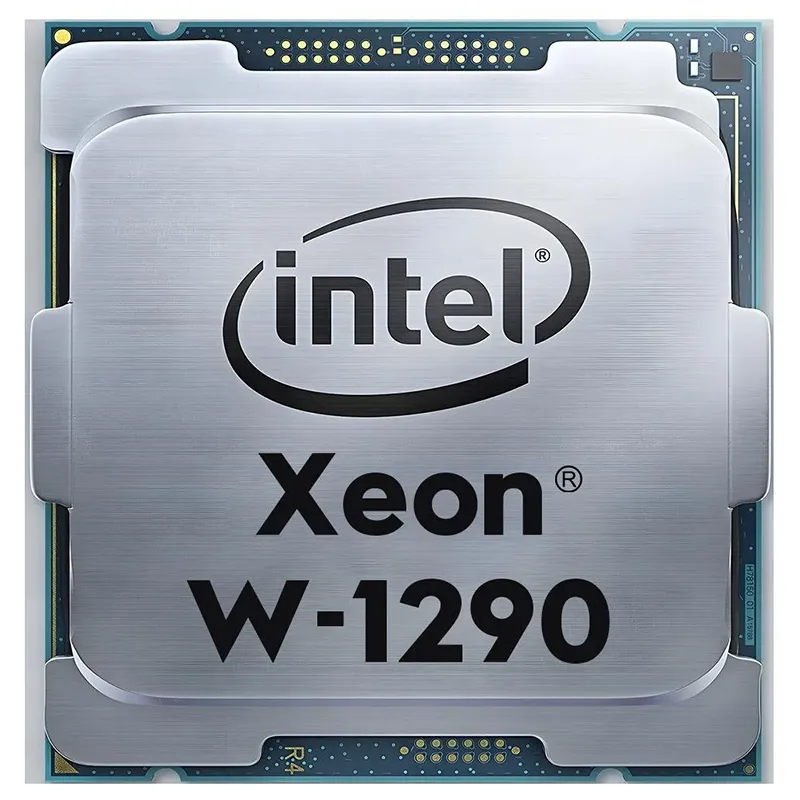

Intel Xeon W-1290 Processor (20M Cache, 3.20 GHz)
The Intel Xeon W-1290 is a professional-grade 10-core, 20-thread processor designed for demanding workstation applications. Operating at 3.20 GHz base frequency with boost speeds up to 5.20 GHz, it delivers exceptional performance for content creation, engineering simulations, and data analysis. The processor features 20MB of Intel Smart Cache, support for up to 128GB of ECC memory, and advanced security technologies including Intel vPro. Built on 14nm architecture, it offers enterprise-level reliability with error-correcting code memory support, making it ideal for mission-critical workflows. Key advantages include superior multi-threaded performance, professional graphics support, and Intel’s Turbo Boost Max Technology 3.0 for optimized single-threaded tasks. This processor excels in CAD/CAM applications, video editing, 3D rendering, and scientific computing where stability, performance, and data integrity are paramount.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
