| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Workstation |
| CPU Socket Type | FCLGA1200 |
| Total Threads | 16 |
| Total Cores | 8 |
| Cache | 16 MB |
| TDP | 125 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 3.80 GHz |
| Memory Types | DDR4-2933 |
| Series | Intel Xeon W |
| Part Number | W-1270P |
| Model | CM8070104380809 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 128 GB |
| Code Name | Comet Lake |
| Max Turbo Frequency | 5.10 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 2 |
| Max # of PCI Express Lanes | 16 |
| PCI Express Revision | 3 |
| Package Size | 37.5mm x 37.5mm |
| Embedded Options Available | No |
| Scalability | 1S Only |
| ECC Memory Supported | Yes |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| PCI Express Configurations | 1×8+2×4, 2×8, Up to 1×16 |
| Max Memory Bandwidth | 45.8 GB/s |
| Bus Speed | 8 GT/s |
| T JUNCTION | 100C |
| # of Displays Supported | 3 |
| Intel Quick Sync Video | Yes |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Device ID | 0x9BC6 |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
* NOTE: Image may not exactly match the product

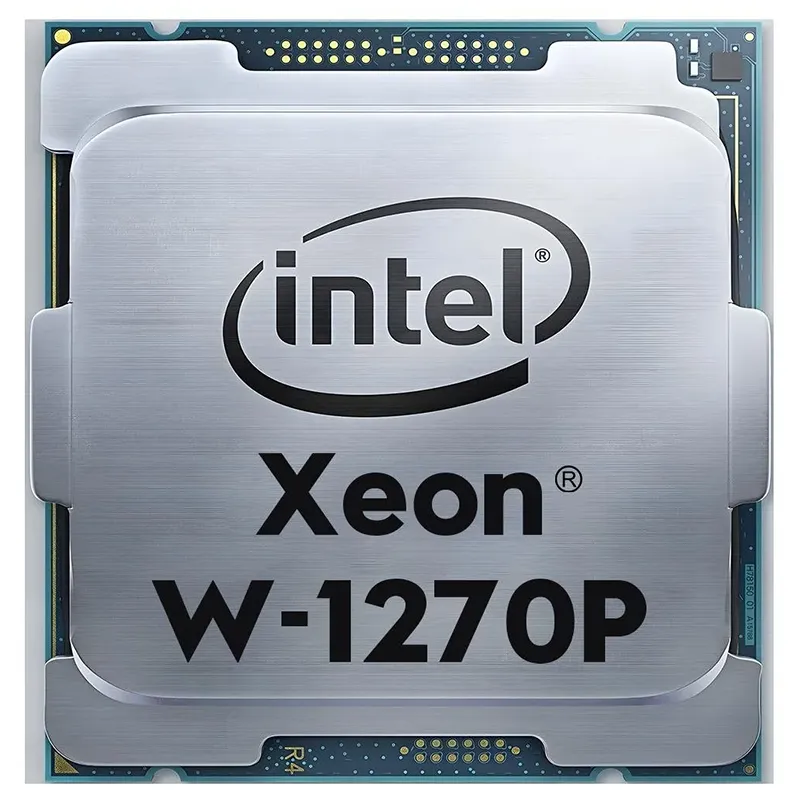

Intel Xeon W-1270P Processor (16M Cache, 3.80 GHz)
The Intel Xeon W-1270P is a professional-grade 8-core, 16-thread processor designed for demanding workstation applications. Operating at a base frequency of 3.80 GHz with boost speeds up to 5.10 GHz, it delivers exceptional single and multi-threaded performance. The processor features 16MB of Intel Smart Cache, supports up to 128GB of ECC memory, and includes integrated Intel UHD Graphics P630. Built on 14nm technology with a 125W TDP, it offers enterprise-level reliability with Intel vPro technology, hardware-enhanced security features, and optimized performance for CAD, content creation, data analysis, and virtualization workloads. The W-1270P stands out with its combination of high clock speeds, professional graphics capabilities, and robust error correction support, making it ideal for mission-critical applications requiring both performance and stability.
