| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Workstation |
| CPU Socket Type | FCLGA1200 |
| Total Threads | 16 |
| Total Cores | 8 |
| Cache | 16 MB |
| TDP | 80 W |
| Manufacturing Tech | 14 nm |
| Processor Base Frequency | 3.40 GHz |
| Memory Types | DDR4-2933 |
| Series | Intel Xeon W |
| Part Number | W-1270 |
| Model | CM8070104380910 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 128 GB |
| Code Name | Comet Lake |
| Max Turbo Frequency | 5.00 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 2 |
| Max # of PCI Express Lanes | 16 |
| PCI Express Revision | 3 |
| Package Size | 37.5mm x 37.5mm |
| Embedded Options Available | No |
| Scalability | 1S Only |
| ECC Memory Supported | Yes |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| PCI Express Configurations | 1×8+2×4, 2×8, Up to 1×16 |
| Max Memory Bandwidth | 45.8 GB/s |
| Bus Speed | 8 GT/s |
| T JUNCTION | 100C |
| # of Displays Supported | 3 |
| Intel Quick Sync Video | Yes |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Device ID | 0x9BC6 |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
* NOTE: Image may not exactly match the product

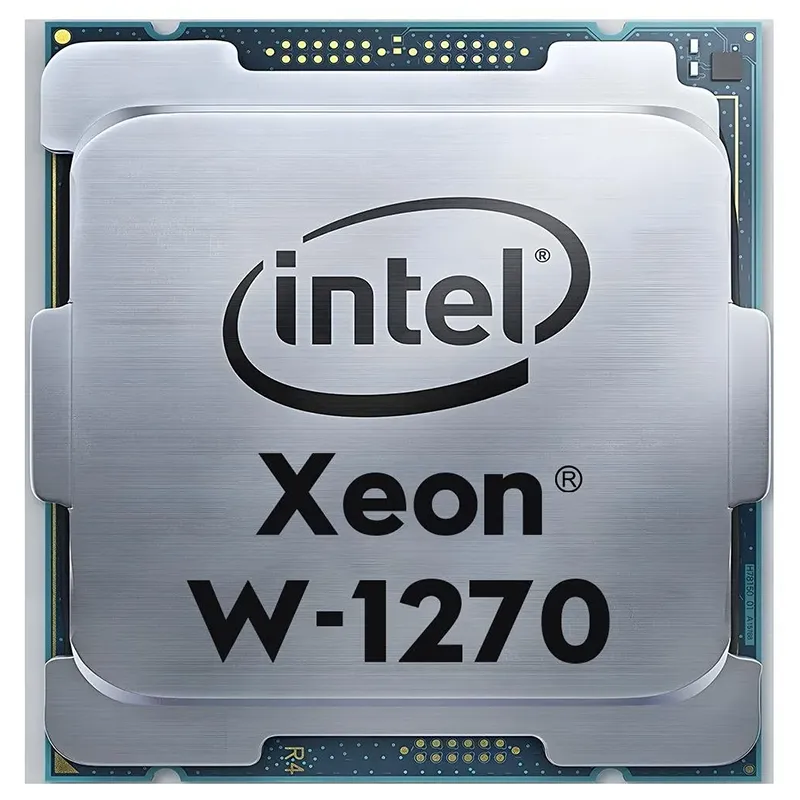

Intel Xeon W-1270 Processor (16M Cache, 3.40 GHz)
The Intel Xeon W-1270 is a professional-grade 8-core, 16-thread processor designed for demanding workstation applications. Operating at a base frequency of 3.4 GHz with boost speeds up to 5.1 GHz, it delivers exceptional single and multi-threaded performance. The processor features 16MB of Intel Smart Cache, supports up to 128GB of ECC memory for enhanced reliability, and includes integrated Intel UHD Graphics P630. Built on 14nm technology with advanced security features like Intel vPro and Intel TXT, the W-1270 excels in content creation, CAD/CAM applications, data analysis, and virtualization workloads. Its combination of high clock speeds, robust error correction capabilities, and professional-grade features makes it ideal for mission-critical applications where reliability and performance are paramount.
