- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
- 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
- Intel Ethernet Controller X550 2x 10GbE RJ45
- 45x Top-loading hot-swap 3.5″ SAS3/SATA3 drive bays, 2x Hot-swap 2.5″ SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ SATA3/NVMe (rear, optional)
- Redundant Platinum 1600W Power Supply
* NOTE: Image may not exactly match the product

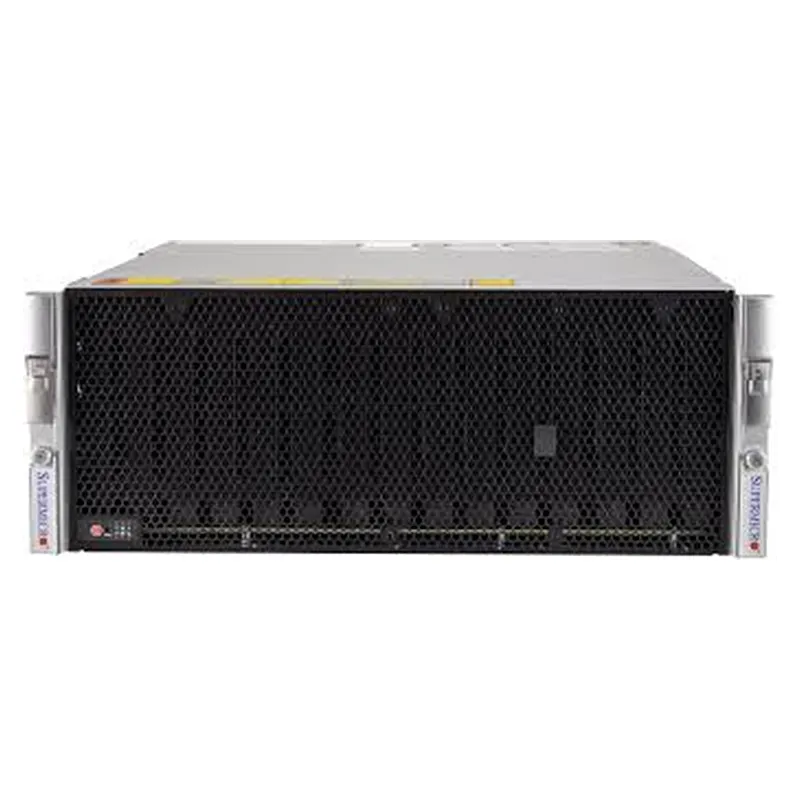

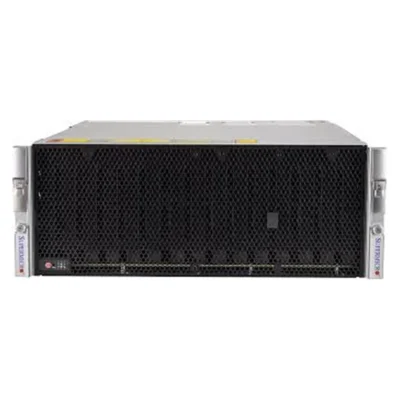

UP Storage SuperServer SSG-540P-E1CTR45H (Complete System Only )
The UP Storage SuperServer SSG-540P-E1CTR45H is a high-performance, enterprise-grade storage server designed for demanding data center environments. This complete system features exceptional storage density with support for up to 45 hot-swappable drive bays, delivering massive capacity for data-intensive applications. Built on Supermicro’s proven architecture, it offers enterprise-class reliability with redundant power supplies and advanced thermal management. The server provides flexible connectivity options, scalable performance for growing storage needs, and optimized power efficiency to reduce operational costs. Its tool-less drive installation and comprehensive management features ensure minimal downtime and simplified maintenance. Ideal for cloud storage, backup solutions, content distribution, and big data analytics, this turnkey system combines industrial-grade durability with cost-effective total ownership, making it perfect for organizations requiring robust, high-capacity storage infrastructure with enterprise support and warranty coverage.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Product SKUs | SuperServer SSG-540P-E1CTR45H (Black) |
|---|---|
| Motherboard | Super X12SPI-TF |
| CPU | Single Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| Product SKUs | SuperServer SSG-540P-E1CTR45H (Black) |
|---|---|
| Motherboard | Super X12SPI-TF |
| CPU | Single Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 8 DIMM slots, Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support |
| SAS | SAS3 (12Gbps) via Broadcom 3908; RAID 0, 1, 5, 6, 10, 50, 60 support |
| Chipset | Intel C621A |
| Network Connectivity | 2x 10GbE BaseT with X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Chassis Form Factor | 4U Rackmount |
| Chassis Model | CSE-946LTS-R1K66P1 |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 26" (660mm) |
| Package | 22" (H) x 28" (W) x 42" (D) |
| Weight | Net Weight: 85 lbs (38.56 kg), Gross Weight: 120 lbs (54.43 kg) |
