Ultra A+ Server AS -2024US-TRT (Complete System Only wholesale

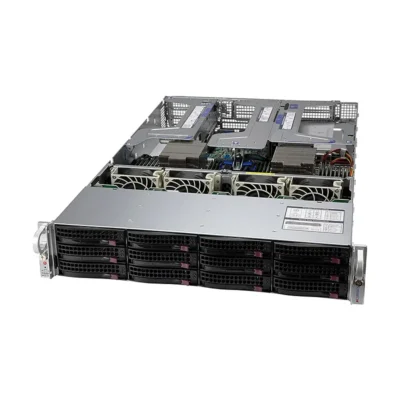

* NOTE: Image may not exactly match the product

Ultra A+ Server AS -2024US-TRT (Complete System Only

**Ultra A Server AS-2024US-TRT Complete System**

High-performance enterprise server delivering exceptional computing power and reliability for demanding business applications. Features dual-socket architecture supporting latest-generation processors, extensive memory capacity up to 1TB DDR4/DDR5, and multiple storage configurations including NVMe SSD support for lightning-fast data access.

**Key Features:**
– Dual-socket design for maximum processing capability
– Hot-swappable drive bays for zero-downtime maintenance
– Redundant power supplies ensuring 99.9% uptime
– Advanced thermal management with intelligent cooling
– Multiple PCIe expansion slots for customization
– Remote management capabilities via IPMI/BMC

**Benefits:**
– Scales seamlessly with growing business demands
– Minimizes operational disruptions through redundant components
– Reduces total cost of ownership with energy-efficient design
– Accelerates data-intensive workloads and virtualization
– Simplifies IT management with comprehensive monitoring tools

**Unique Selling Points:**
– Complete turnkey solution requiring no additional components
– Enterprise-grade reliability at competitive pricing
– Optimized for virtualization, databases, and cloud computing
– Tool-less chassis design for rapid deployment and servicing
– Comprehensive warranty and technical support included

Quote1 Piece(MOQ)

Premium Client Discounts Available

BrandSupermicro
Products StatusNew
ApplicationsCloud Computing, Flexible Networking Options, High End Enterprise Server, Hyperconverged Storage, Virtualization
Max GPU2
CPU TypeAMD EPYC 7002/7003 Series Processors

Product SKUs

  • A+ ServerAS -2024US-TRT

Motherboard

  • Super H12DSU-iN

Processor

  • CPU
    Dual Socket SP3
    AMD EPYC 7002/7003 Series Processors

GPU

  • Max GPU Count
    Up to 2 double-width or 4 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, RTX A2000, RTX 8000, RTX 6000, RTX 4000, A40, A16, A2, A100, A10
    AMD PCIe: Instinct MI210, Instinct MI100

System Memory

  • Memory
    Slot Count: 32 DIMM slots/8 Channels
    Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

  • SATA
    SATA (6Gbps)
  • Chipset
    System on Chip
  • Network Connectivity
    2 RJ45 10GbE
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    3 USB 3.0 Type-A ports(Rear)
  • Video
    1 VGA port
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM
  • BIOS Features
    Plug and Play (PnP)
    USB Keyboard support
    ACPI 5.1
    DMI 2.3
    PCI 2.2
    SMBIOS 3.1.1

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-829U2TS-R1K62P3-T

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    28.46″ (723 mm)
  • Package
    10.28″ (H) x 24.65″ (W) x 45.39″ (D)
  • Weight
    Gross Weight: 72 lbs (32.7 kg)
    Net Weight: 36 lbs (16.4 kg)
  • Available Color

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FH/10.5″L slots 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 LP slot 1 PCIe 4.0 x16 FH, 9.5″L slot 1 PCIe 4.0 x8 FH, 9.5″L, in x16 slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 12 bays 12 front hot-swap 3.5″ SATA drive bays
    Option A: Total 12 bays 8 front hot-swap 3.5″ SATA drive bays 4 front hot-swap 3.5″/2.5″ NVMe* drive bays
    Option B: Total 12 bays 12 front hot-swap 3.5″ SAS* drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2

System Cooling

  • Fans
    4 heavy duty fans with optimal fan speed control

Power Supply

  • 2x 1600W
    2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 203 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1600W: 200-240Vac
    1600W: 200-240Vac / 50-60Hz
    +12V
    Max: 83.3A / Min: 0A (100Vac-127Vac)
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 133A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 2.1A / Min: 0A
    Output Type
    Backplanes (gold finger)
    Certification
    Titanium Level
    [
    Test Report
    ]
Brand

Supermicro
Products Status

New
Applications

Cloud Computing, Flexible Networking Options, High End Enterprise Server, Hyperconverged Storage, Virtualization
Max GPU

2
CPU Type

AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots

6
Drives

12
Drive Form Factors

3.5"
Form Factor

2U
Generation

H12
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
SATA

SATA (6Gbps)
Max GPU Count

Up to 2 double-width or 4 single-width GPUs
Supported GPU

A100, A10AMD PCIe: Instinct MI210, A16, A2, A40, Instinct MI100View GPU Options, NVIDIA PCIe: T4, RTX 4000, RTX 6000, RTX 8000, RTX A2000, RTX A4000, RTX A5000, RTX A6000
Network Connectivity

2 RJ45 10GbEView Network Card (AOC) OptionsView AOC Options
BIOS Features

Plug and Play (PnP)USB Keyboard supportACPI 5.1DMI 2.3PCI 2.2SMBIOS 3.1.1
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI Flash EEPROM
Package

10.28" (H) x 24.65" (W) x 45.39" (D)
Depth

28.46" (723 mm)
Fans

4 heavy duty fans with optimal fan speed control
Height

3.5" (89 mm)
Memory

Slot Count: 32 DIMM slots/8 ChannelsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Note

Supports up to 280W TDP CPUs (Air Cooled)
Weight

Gross Weight: 72 lbs (32.7 kg)Net Weight: 36 lbs (16.4 kg)
Drive Bays Configuration

Default: Total 12 baysOption A: Total 12 baysOption B: Total 12 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB

3 USB 3.0 Type-A ports(Rear)
PCI-Express (PCIe) Configuration

Default
IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
TPM

1 TPM Header
CPU

Dual Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset

System on Chip
