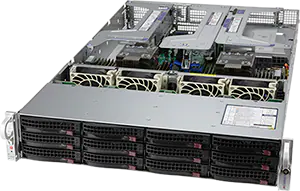

SYS-620U-TNR SuperMicro Rackmount server X12 H12 Hyper and Ultra PCIe 4.0 2U Dual Processor

* NOTE: Image may not exactly match the product

SYS-620U-TNR SuperMicro Rackmount server X12 H12 Hyper and Ultra PCIe 4.0 2U Dual Processor

The SYS-620U-TNR SuperMicro Rackmount Server delivers enterprise-grade performance in a compact 2U form factor, featuring dual processor capability for maximum computational power. Built on the advanced X12/H12 platform, it supports cutting-edge PCIe 4.0 technology for ultra-fast data transfer speeds and superior I/O performance. The Hyper and Ultra configurations provide exceptional scalability and flexibility for demanding workloads including virtualization, data analytics, and high-performance computing. Key advantages include space-efficient rackmount design, redundant processing power for reliability, future-proof PCIe 4.0 connectivity, and SuperMicro’s proven enterprise reliability. This server excels in data centers requiring maximum performance per rack unit, offering superior price-to-performance ratio while supporting the latest hardware standards for long-term investment protection.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor2U
Products StatusNew
MemorySlot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors3.5"

Product SKUs

  • SuperServerSYS-620U-TNR

Motherboard

  • Super X12DPU-6

Processor

  • CPU
    Dual Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache per CPU

GPU

  • Max GPU Count
    Up to 4 double-width or 6 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10

System Memory

  • Memory
    Slot Count: 32 DIMM slots
    Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support
  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 10GBASE-T with Intel X710-AT2 (optional)
    2 RJ45 10GBASE-T with Intel X710-TM4 (optional)
    2 SFP+ 10GbE with Intel X710-TM4 (optional)
    No NIC option supported

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • DOM
    2 Super DOM (Disk on Module) ports

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-829U3TS-R1K22P-T

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    29.05″ (737.9 mm)
  • Package
    10.07″ (H) x 23.81″ (W) x 37.28″ (D)
  • Weight
    Gross Weight: 57.5 lbs (26.2 kg)
    Net Weight: 35.5 lbs (16.2 kg)
  • Available Color
    Black Front & Silver Body

Front Panel

  • LED
    HDD activity
    Power status
  • Buttons
    Power On/Off

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 1 PCIe 4.0 x16 (in x16) FH/10.5″L slot 5 PCIe 4.0 x8 (in x8) FH/10.5″L slots 1 PCIe 4.0 x8 (in x8) LP slot 1 PCIe 4.0 x16 (in x16) LP slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 12 bays 12 front hot-swap 3.5″ NVMe/SAS*/SATA drive bays
    (*SAS support may require additional storage controller and/or cables)
  • M.2

System Cooling

  • Fans
    4x 8cm heavy duty fans with optimal fan speed control
  • Air Shroud
    2 Air Shrouds

Power Supply

  • 1x 1200W
    1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
    Dimension (WxHxL)
    73.5 x 40 x 203 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vdc (For CCC Only)
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
    12V SB
    Max: 2.1A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Form Factor

2U
Products Status

New
Memory

Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors

3.5"
Chipset

Intel C621A
CPU

Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
CPU Type

3rd Gen Intel Xeon Scalable processors
Generation

X12
Total PCI-E Slots

8
Drives

12
Max GPU

2
Fans

4x 8cm heavy duty fans with optimal fan speed control
Depth

29.05" (737.9 mm)
Height

3.5" (89 mm)
Width

17.2" (437 mm)
Package

10.07" (H) x 23.81" (W) x 37.28" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 57.5 lbs (26.2 kg)Net Weight: 35.5 lbs (16.2 kg)
Drive Bays Configuration

Default: Total 12 bays(*SAS support may require additional storage controller and/or cables)
Video

1 VGA port
BIOS Type

AMI 32MB SPI Flash EEPROM
Note

Supports up to 270W TDP CPUs (Air Cooled)
Available Color

Black front & silver body
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
Buttons

Power On/Off
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
USB

2 USB 3.0 ports(rear)
LED

HDD activityPower status
Application

5G/Telco, Application Tier Service Provider, Cloud Computing, High End Enterprise Server, HPC, Software Defined Storage, Virtualization
Max GPU Count

Up to 4 double-width or 6 single-width GPUs
Core Count

Up to 40C/80T; Up to 60MB Cache per CPU
Memory Voltage

1.2V
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
Supported GPU

A100, A10View GPU Options, A16, A2, A30, A40, NVIDIA PCIe: T4, RTX A4000, RTX A5000, RTX A6000
NVMe

NVMe; RAID 0/1/5/10 supportView NVMe Options
DOM

DOM
Air Shroud

2 Air Shrouds
