Product SKUs
- SYS-6029P-TR

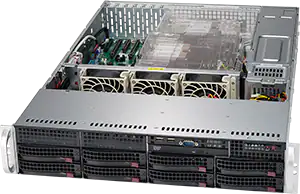

SuperServer 6029P-TR ( Black )
Motherboard
- Super X11DPi-N
Processor
- CPU
Dual Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors , Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W - Cores
Up to 28 Cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel Optane DCPMM - Memory Type
2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
Intel C621 chipset
- SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
- Network Controllers
Dual 1GbE LAN with Intel X722
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Graphics
ASPEED AST2500 BMC
Input / Output
- SATA
8 SATA3 (6Gbps) ports
- LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port - USB
Rear USB: 2 USB 3.0 + 2 USB 2.0
Front USB: 2 USB 2.0
USB Header: 1 Type A - VGA
1 VGA port
- Serial Port / Header
2 Fast UART 16550 serial
2 COM Ports (1 rear, 1 header) - DOM
2 Super DOM (Disk on Module) ports
System BIOS
- BIOS Type
AMI UEFI
Management
- Power Configurations
ACPI / APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-825TQC-R1K03LPB
Dimensions and Weight
- Width
17.2″ (437mm)
- Height
3.5″ (89mm)
- Depth
25.5″ (647mm)
- Package
26.7″ (H) x 11.4″ (W) x 34.5″ (D)
- Weight
Net Weight: 35.5 lbs (16.1 kg)
Gross Weight: 69 lbs (31.2 kg) - Available Colors
Black
Front Panel
- Buttons
Power On/Off button
System Reset button
UID button - LEDs
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
Expansion Slots
- PCI-Express
4 PCI-E 3.0 x16 (Low-profile)
2 PCI-E 3.0 x8 (Low-profile)
Drive Bays
- Hot-swap
8 Hot-swap 3.5″ SATA drive bays
Backplane
- 2U SAS/SATA backplane
System Cooling
- Fans
3 Heavy duty 80mm fans with PWM fan speed control
Power Supply (76mm Width)
- 1000W Redundant Power Supplies with PMBus
- Total Output Power
800W/1000W
- Dimension
(W x H x L)76 x 40 x 336 mm - Input
100-127Vac / 12-9A / 50-60Hz
200-240Vac / 7.2-6A / 50-60Hz
200-240Vdc / 7.2-6A (for CCC only) - +12V
Max: 66.7A / Min. 0A (100-127Vac)
Max: 83A / Min. 0A (200-240Vac)
Max: 83A / Min. 0A (200-240Vdc) - 5Vsb
Max: 4A / Min: 0A
- Output Type
19 Pairs Gold Finger Connector
