Product SKUs

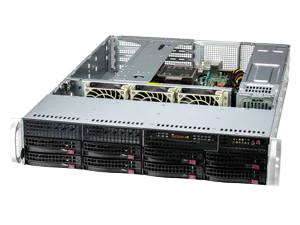

- SuperServerSYS-521E-WR
Motherboard
- Super X13SEW-F
Processor
- CPU
Single Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors - Core Count
Up to 52C/104T; Up to 300MB Cache
GPU
- Max GPU Count
Up to 1 double-width or 2 single-width GPUs
- Supported GPU
NVIDIA PCIe: T400, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000
- CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
- Memory
Slot Count: 8 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM - Memory Voltage
1.1V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- Chipset
Intel C741
- Network Connectivity
2 RJ45 1GbE with Intel I210
Input / Output
- LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
1 USB 2.0 Type-A port(Header)
2 USB 3.2 Gen1 ports(Header) - Video
1 VGA port
- Serial
1 COM port(Rear)
1 COM port(Header) - TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-825B2TS-R0WNP
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
25.5″ (647 mm)
- Package
11″ (H) x 26.5″ (W) x 34″ (D)
- Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 34 lbs (15.42 kg) - Available Color
Black
Front Panel
- LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information - Buttons
Power On/Off
System Reset
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x8 LP slots
Option A* 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x8 LP slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 4 front hot-swap 3.5″ SAS*/SATA drive bays 4 front hot-swap 3.5″ PCIe 5.0 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables) - M.2
1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
- Peripheral Bays
2 2.5″ bays (optional)
System Cooling
- Fans
3 heavy duty PWM 80x80x38mm Fan(s)
Power Supply
- 2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vdc / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (200Vdc-240Vdc)
Max: 83A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
