Product SKUs

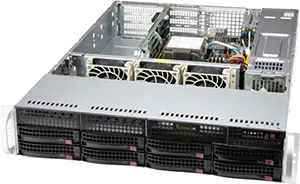

- SuperServerSYS-520P-WTRStandard version with PWS-609P-1R2 (Platinum Level)
- SuperServerSYS-520P-WTR-EUEuropean version with PWS-802A-1R (Titanium Level)
Motherboard
- Super X12SPW-TF
Processor
- CPU
Single Socket P+ (LGA-4189)
Intel Xeon Scalable Processors - Core Count
Up to 40C/80T; Up to 60MB Cache
GPU
- Max GPU Count
Up to 1 double-width or 1 single-width GPU
- Supported GPU
NVIDIA PCIe: T400, T1000, RTX A4000, RTX A2000
- CPU-GPU Interconnect
PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
- Memory
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1 support(Intel VROC RAID key required)
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 10GbE with Intel X550
Input / Output
- LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB
2 USB 2.0 ports(header)
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port - Video
1 VGA 2.0 port
- Serial
1 COM port(Rear)
1 COM port(Header) - DOM
2 Super DOM (Disk on Module) portswith built-in power
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-825BTS-R609WP
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
25.5″ (647 mm)
- Package
11″ (H) x 26.5″ (W) x 34″ (D)
- Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 34 lbs (15.42 kg) - Available Color
Black
Front Panel
- LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information - Buttons
Power On/Off
System Reset
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FHFL slots 2 PCIe 4.0 x8 LP slots
Option A* 1 PCIe 4.0 x16 FHFL double-width slot 2 PCIe 4.0 x8 FHFL slots 2 PCIe 4.0 x8 LP slots
Option B* 4 PCIe 4.0 x8 FHFL slots 2 PCIe 4.0 x8 LP slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 3.5″ SAS*/SATA drive bays
Option A: Total 10 bays 8 front hot-swap 3.5″ SAS*/SATA drive bays 2 rear hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110; VROC required for RAID)
System Cooling
- Fans
3 heavy duty PWM 80x80x38mm Fan(s)
Power Supply
- 2x 650W
2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Total Output Power
Input
600W: 100-127Vac / 50-60Hz
650W: 200-240Vac
650W: 200-240Vac / 50-60Hz
650W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 50A / Min: 0A (100Vac-127Vac)
Max: 54.16A / Min: 0A (200Vac-240Vac)
Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)
Max: 54A / Min: 0.5A
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
