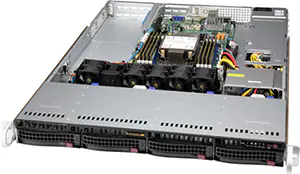

SYS-510P-WT SuperMicro Rackmount server X12 H12 1U CloudDC and WIO PCIe 4.0 Single Processor

* NOTE: Image may not exactly match the product

SYS-510P-WT SuperMicro Rackmount server X12 H12 1U CloudDC and WIO PCIe 4.0 Single Processor

The SYS-510P-WT is SuperMicro’s cutting-edge 1U rackmount server engineered for high-density cloud data centers and edge computing environments. Built on the latest X12/H12 platform, this single-processor powerhouse delivers exceptional performance per rack unit with PCIe 4.0 connectivity for ultra-fast data transfer speeds. Its CloudDC-optimized design maximizes compute density while minimizing power consumption and cooling requirements. The WIO (Workload Optimized) architecture provides flexible I/O configurations to handle diverse enterprise workloads, from virtualization to AI inference. Key advantages include space-efficient 1U form factor, next-generation PCIe 4.0 bandwidth, energy-efficient operation, and SuperMicro’s proven reliability for mission-critical applications. This server is ideal for organizations seeking maximum performance density, reduced total cost of ownership, and future-ready infrastructure scalability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor1U
Products StatusNew
MemorySlot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors3.5"

Product SKUs

  • SuperServerSYS-510P-WT

Motherboard

  • Super X12SPW-TF

Processor

  • CPU
    Single Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache

GPU

  • Max GPU Count
    Up to 1 single-width GPU
  • Supported GPU
    NVIDIA PCIe: T1000, A2
  • CPU-GPU Interconnect
    PCIe 4.0 x16 CPU-to-GPU Interconnect

System Memory

  • Memory
    Slot Count: 8 DIMM slots
    Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 10GbE with Intel X550

Input / Output

  • LAN
    2 RJ45 1 GBASE-T LAN ports
    1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
  • USB
    2 USB 2.0 ports(header)
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 2.0 Type-A ports(rear)
    2 USB 3.2 Gen1 ports(Header)
    1 USB 3.2 Gen1 Type-A port
  • Video
    1 VGA 2 port
  • Serial
    1 COM port(Rear)
    1 COM port(Header)
  • DOM
    2 Super DOM (Disk on Module) portswith built-in power
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-815TS-605WBP2

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    25.6″ (650 mm)
  • Package
    8.5″ (H) x 23.5″ (W) x 33.7″ (D)
  • Weight
    Gross Weight: 46 lbs (20.87 kg)
    Net Weight: 22 lbs (9.98 kg)
  • Available Color
    Black

Front Panel

  • LED
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power status
    System information
  • Buttons
    Power On/Off
    System Reset
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 LP slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 4 bays 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables)
  • M.2
    1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110; VROC required for RAID)
  • Peripheral Bays
    2 2.5″ bays (optional)

System Cooling

  • Fans
    5 counter-rotation PWM 40x40x56mm Fan(s)
    1 AOC cooling Fan(s) (optional)

Power Supply

  • 1x 600W
    1x 600W Platinum Level (92%) power supply
    Dimension (WxHxL)
    76 x 40.4 x 279.4 mm
    Total Output Power
    Input
    600W: 100-240Vac
    600W: 100-240Vac / 50-60Hz
    +12V
    Max: 49A / Min: 0.5A (100Vac-240Vac)
    Max: 49A / Min: 0.5A
    5V SB
    Max: 3A / Min: 0A
    Output Type
    24pin ATX
    Certification
    Platinum Level
    [
    Test Report
    ]
Brand

Supermicro
Form Factor

1U
Products Status

New
Memory

Slot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors

3.5"
Chipset

Intel C621A
CPU

Single Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
CPU Type

3rd Gen Intel Xeon Scalable processors
Generation

X12
Total PCI-E Slots

3
Drives

4
Max GPU

1
Fans

5 counter-rotation PWM 40x40x56mm Fan(s)1 AOC cooling Fan(s) (optional)
Depth

25.6" (650 mm)
Height

1.7" (43 mm)
Width

17.2" (437 mm)
Package

8.5" (H) x 23.5" (W) x 33.7" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 46 lbs (20.87 kg)Net Weight: 22 lbs (9.98 kg)
Drive Bays Configuration

Default: Total 4 bays(*NVMe/SAS support may require additional storage controller and/or cables)
Video

1 VGA 2 port
Network Connectivity

2 RJ45 10GbE with Intel X550View AOC Options
BIOS Type

AMI 32MB SPI Flash EEPROM
Note

Supports up to 270W TDP CPUs (Air Cooled)
Available Color

Black
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
Buttons

Power On/OffSystem ResetUID button
M.2

1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110; VROC required for RAID)
LAN

2 RJ45 1 GBASE-T LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB

2 USB 2.0 ports(header)2 USB 3.2 Gen1 Type-A ports(rear)2 USB 2.0 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)1 USB 3.2 Gen1 Type-A port
LED

Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Application

Cloud Computing, Data Center Optimized, Enterprise Server, Virtualization
Max GPU Count

Up to 1 single-width GPU
Core Count

Up to 40C/80T; Up to 60MB Cache
Memory Voltage

1.2V
CPU-GPU Interconnect

PCIe 4.0 x16 CPU-to-GPU Interconnect
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
TPM

1 TPM Header
Serial

1 COM port(Rear)1 COM port(Header)
Supported GPU

A2View GPU Options, NVIDIA PCIe: T1000
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
DOM

DOM
Peripheral Bays

2 2.5" bays (optional)
