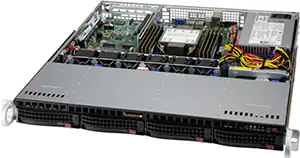

SYS-510P-M SuperMicro Rackmount server X12 1U Mainstream PCIe 4.0 Single Processor

* NOTE: Image may not exactly match the product

SYS-510P-M SuperMicro Rackmount server X12 1U Mainstream PCIe 4.0 Single Processor

The SYS-510P-M SuperMicro Rackmount server delivers enterprise-grade performance in a space-efficient 1U form factor, featuring cutting-edge PCIe 4.0 connectivity for maximum data throughput and future-proof expandability. This mainstream single-processor system leverages Intel’s latest X12 platform architecture to provide exceptional compute density while maintaining optimal power efficiency. Key advantages include reduced rack space requirements, high-speed storage and network capabilities through PCIe 4.0 slots, simplified management with single-socket design, and SuperMicro’s renowned reliability for mission-critical applications. Ideal for virtualization, cloud computing, edge deployments, and data-intensive workloads requiring compact yet powerful infrastructure with room for growth.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor1U
Products StatusNew
MemorySlot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors3.5"

Product SKUs

  • SuperServerSYS-510P-M

Motherboard

  • Super X12SPO-F

Processor

  • CPU
    Single Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 36C/72T; Up to 54MB Cache

GPU

  • Max GPU Count
    Up to 1 single-width GPU
  • Supported GPU
    NVIDIA PCIe: T400

System Memory

  • Memory
    Slot Count: 8 DIMM slots
    Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 1GbE with Intel I350

Input / Output

  • LAN
    2 RJ45 1 GbE LAN ports
    1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
  • USB
    4 USB 2.0 ports(header)
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 2.0 Type-A ports(rear)
    2 USB 3.2 Gen1 ports(Header)
    1 USB 3.2 Gen1 Type-A port(Header)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
    1 COM port(Header)
  • DOM
    2 Super DOM (Disk on Module) portswith built-in power
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-813MF2TS-505CBP

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    19.98″ (507 mm)
  • Package
    8.5″ (H) x 24″ (W) x 29.5″ (D)
  • Weight
    Gross Weight: 30.4 lbs (13.8 kg)
    Net Weight: 17.6 lbs (8 kg)
  • Available Color
    Black

Front Panel

  • LED
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power status
    System information
  • Buttons
    Power On/Off
    System Reset

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 1 PCIe 4.0 x16 FHHL slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 4 bays 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables)
  • M.2
    2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID)
  • Peripheral Bays
    2 2.5″ bays (optional)

System Cooling

  • Fans
    4 middle cooling PWM 40x40x28mm Fan(s)
    2 AOC cooling Fan(s) (optional)

Power Supply

  • 1x 500W
    1x 500W Platinum Level (93%) power supply
    Dimension (WxHxL)
    100 x 40 x 180 mm
    Total Output Power
    Input
    500W: 100-240Vac
    500W: 100-240Vac / 50-60Hz
    +12V
    Max: 41A / Min: 0.5A (100Vac-240Vac)
    Max: 41A / Min: 0.5A
    5V SB
    Max: 3A / Min: 0A
    Output Type
    24pin ATX
    Certification
    Platinum Level
    [
    Test Report
    ]
Brand

Supermicro
Form Factor

1U
Products Status

New
Memory

Slot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors

3.5"
Chipset

Intel C621A
CPU

Single Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
CPU Type

3rd Gen Intel Xeon Scalable processors
Generation

X12
Total PCI-E Slots

1
Drives

4
Max GPU

1
Fans

4 middle cooling PWM 40x40x28mm Fan(s)2 AOC cooling Fan(s) (optional)
Depth

19.98" (507 mm)
Height

1.7" (43 mm)
Width

17.2" (437 mm)
Package

8.5" (H) x 24" (W) x 29.5" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 30.4 lbs (13.8 kg)Net Weight: 17.6 lbs (8 kg)
Drive Bays Configuration

Default: Total 4 bays(*NVMe/SAS support may require additional storage controller and/or cables)
Video

1 VGA port
Network Connectivity

2 RJ45 1GbE with Intel I350View AOC Options
BIOS Type

AMI 32MB SPI Flash EEPROM
Note

Supports up to 220W TDP CPUs (Air Cooled)
Available Color

Black
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
Buttons

Power On/OffSystem Reset
M.2

2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID)
LAN

2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB

4 USB 2.0 ports(header)2 USB 3.2 Gen1 Type-A ports(rear)2 USB 2.0 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)1 USB 3.2 Gen1 Type-A port(Header)
LED

Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Application

Email/Firewall/Print Server, Small Business, Web/Hosting Application
Max GPU Count

Up to 1 single-width GPU
Core Count

Up to 36C/72T; Up to 54MB Cache
Memory Voltage

1.2V
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
TPM

1 TPM Header
Serial

1 COM port(Rear)1 COM port(Header)
Supported GPU

NVIDIA PCIe: T400View GPU Options
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
DOM

DOM
Peripheral Bays

2 2.5" bays (optional)
