Product SKUs

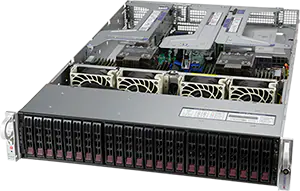

- SuperServerSYS-220U-TNR
Motherboard
- Super X12DPU-6
Processor
- CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 40C/80T; Up to 60MB Cache per CPU
GPU
- Max GPU Count
Up to 4 double-width or 6 single-width GPUs
- Supported GPU
NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 10GBASE-T with Intel X710-AT2 (optional)
2 RJ45 10GBASE-T with Intel X710-TM4 (optional)
2 SFP+ 10GbE with Intel X710-TM4 (optional)
No NIC option supported
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
- Video
1 VGA port
- DOM
2 Super DOM (Disk on Module) ports
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-219U3TS-R1K62P-T
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
28.2″ (717.2 mm)
- Package
9.96″ (H) x 24.6″ (W) x 45.43″ (D)
- Weight
Gross Weight: 63 lbs (28.6 kg)
Net Weight: 37 lbs (16.8 kg) - Available Color
Black Front & Silver Body
Front Panel
- LED
HDD activity
LAN1 activity
LAN2 acticity
Power Fail
Power status
System information (overheat/UID) - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 FH/10.5″L slot 5 PCIe 4.0 x8 FH/10.5″L slots 1 PCIe 4.0 x8 LP slot 1 PCIe 4.0 x16 LP slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 24 bays 22 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays 2 front hot-swap 2.5″ SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables) - M.2
System Cooling
- Fans
4x 8cm heavy duty fans with optimal fan speed control
- Air Shroud
2 Air Shrouds
Power Supply
- 1x 1600W
1x 1600W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
