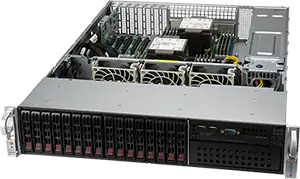

SYS-220P-C9R SuperMicro Rackmount server X13 X12 H12 X11 Mainstream 2U Dual Processor

* NOTE: Image may not exactly match the product

SYS-220P-C9R SuperMicro Rackmount server X13 X12 H12 X11 Mainstream 2U Dual Processor

The SYS-220P-C9R is a versatile 2U rackmount server supporting multiple SuperMicro motherboard generations (X13, X12, H12, X11), offering exceptional flexibility for diverse computing environments. This dual-processor mainstream server maximizes performance density with its compact 2U form factor while providing scalable processing power for demanding workloads. Key benefits include multi-generational motherboard compatibility for easy upgrades, space-efficient design ideal for data centers with limited rack space, and robust dual-CPU architecture for high-performance computing, virtualization, and enterprise applications. Its unique selling proposition lies in the rare combination of backward and forward motherboard compatibility, allowing organizations to future-proof their infrastructure investments while maintaining consistent hardware platforms across different technology generations.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor2U
Products StatusNew
MemorySlot Count: 16 DIMM slotsMax Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors2.5"

Product SKUs

  • SuperServerSYS-220P-C9R

Motherboard

  • Super X12DPi-N6

Processor

  • CPU
    Dual Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 36C/72T; Up to 60MB Cache per CPU

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series

On-Board Devices

  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 1GbE

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 2.0 ports(front)
    4 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • DOM
    2 Super DOM (Disk on Module) ports

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-213BTS-R1K23LPBP3-1

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    24.8″ (630 mm)
  • Package
    11″ (H) x 29″ (W) x 38.7″ (D)
  • Weight
    Gross Weight: 63 lbs (28.8 kg)
    Net Weight: 38 lbs (17.4 kg)
  • Available Color
    Black

Front Panel

  • LED
    HDD activity
    Network activity
    Power status
    System information (overheat/UID)
  • Buttons
    Power On/Off
    System Reset

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 16 bays 8 front hot-swap 2.5″ SAS drive bays 4 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe*/SATA drive bays
    (*NVMe support may require additional storage controller and/or cables)
  • Peripheral Bays
    1 5.25″ DVD bay (optional)
  • M.2

System Cooling

  • Fans
    3 heavy duty fans with optimal fan speed control

Power Supply

  • 1x 1200W
    1x 1200W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL)
    76 x 40 x 336 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Form Factor

2U
Products Status

New
Memory

Slot Count: 16 DIMM slotsMax Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors

2.5"
Chipset

Intel C621A
CPU

Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
CPU Type

3rd Gen Intel Xeon Scalable processors
Generation

X12
Total PCI-E Slots

5
Drives

16
Max GPU

2
Fans

3 heavy duty fans with optimal fan speed control
Depth

24.8" (630 mm)
Height

3.5" (89 mm)
Width

17.2" (437 mm)
Package

11" (H) x 29" (W) x 38.7" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 63 lbs (28.8 kg)Net Weight: 38 lbs (17.4 kg)
Drive Bays Configuration

Default: Total 16 bays(*NVMe support may require additional storage controller and/or cables)
Video

1 VGA port
Network Connectivity

2 RJ45 1GbEView AOC Options
BIOS Type

AMI 32MB SPI Flash EEPROM
Note

Supports up to 270W TDP CPUs (Air Cooled)
Available Color

Black
Interface

NVMe (Optional), SAS (Native), SATA (Native)
Buttons

Power On/OffSystem Reset
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
USB

2 USB 2.0 ports(front)4 USB 3.0 ports(rear)
LED

HDD activityNetwork activityPower statusSystem information (overheat/UID)
Application

Application-Optimized Solutions, Data Center Optimized, Database Processing and High Density Storage, Enterprise Server, High Performance Computing
Core Count

Up to 36C/72T; Up to 60MB Cache per CPU
DOM

DOM
ROHS

RoHS Compliant
Peripheral Bays

1 5.25" DVD bay (optional)
