Product SKUs

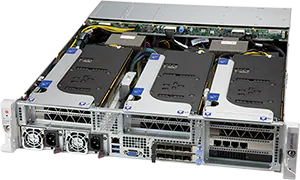

- SuperServerSYS-220HE-FTNR
Motherboard
- Super X12DHM-6
Processor
- CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors
GPU
- Max GPU Count
Up to 3 double-width or 3 single-width GPUs
- Supported GPU
NVIDIA PCIe: T4, A40, A100, A10
- CPU-GPU Interconnect
PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 1GbE with Intel I350-AM2 (optional)
4 SFP 1GbE with Intel I350-AM4 (optional)
2 RJ45 10GBASE-T with Intel X550-AT2 (optional)
2 SFP+ 10GbE with Intel X710-BM2 (optional)
4 SFP+ 10GbE with Intel XL710-BM1 (optional)
4 SFP+ 10GbE with Intel X710-TM4 (optional)
2 SFP28 25GbE with Broadcom BCM57414 (optional)
4 SFP28 25GbE (optional)
2 QSFP28 100GbE with Broadcom BCM57508 (optional)
4 RJ45 1GbE with Intel I350-AM4 (optional)
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 2.0 ports(front)
- Video
1 VGA port
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-HE211-R000NFP
Dimensions and Weight
- Height
3.5″ (88.9 mm)
- Width
17.2″ (436.88 mm)
- Depth
22.6″ (574 mm)
- Package
9.7″ (H) x 23.5″ (W) x 36.9″ (D)
- Weight
Gross Weight: 47.4 lbs (21.5 kg)
Net Weight: 34.4 lbs (15.6 kg) - Available Color
Silver
Front Panel
- LED
HDD activity LED
LAN1 activity
LAN2 activity
Power Fail
Power status LED
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 3 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 FHHL slot
Option A 6 PCIe 4.0 x8 (in x16) FHFL slots 2 PCIe 4.0 x8 (in x16) FHHL slots
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 6 bays 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
- M.2
2 M.2 NVMe/SATA slots (M-key 2280/22110)
System Cooling
- Fans
6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s)
Power Supply
- 1x 2000W
1x 2000W Redundant Titanium (certification pending) Level (96%) power supply
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 83A (100Vac-127Vac)
Max: 150A (200Vac-220Vac)
Max: 166A / Min: 0A (200Vac-240Vac)
Max: 165A (220Vac-230Vac)
Max: 166A (230Vac-240Vac)
12V SB
Max: 3.5A
Output Type
Backplanes (gold finger)
