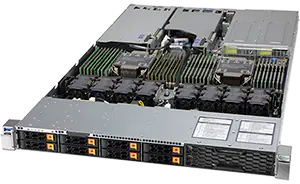

SYS-120H-TNR SuperMicro Rackmount server X12 H12 Hyper and Ultra PCIe 4.0 1U Dual Processor

* NOTE: Image may not exactly match the product

SYS-120H-TNR SuperMicro Rackmount server X12 H12 Hyper and Ultra PCIe 4.0 1U Dual Processor

The SYS-120H-TNR SuperMicro Rackmount Server delivers enterprise-grade performance in a compact 1U form factor, featuring dual processor capability with cutting-edge X12/H12 architecture. This powerhouse supports Hyper and Ultra configurations with PCIe 4.0 connectivity for maximum data throughput and expansion flexibility. Key benefits include space-efficient rackmount design ideal for data centers, superior processing power for demanding workloads, and future-proof PCIe 4.0 technology ensuring compatibility with next-generation hardware. The dual processor setup enables exceptional multitasking and parallel processing capabilities, while the 1U design maximizes rack density. Perfect for virtualization, cloud computing, high-performance computing applications, and enterprise environments requiring reliable, scalable server infrastructure with minimal footprint.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

Products StatusNew
Form Factor1U Rackmount
ApplicationServer
InterfaceNVMe (Optional), SAS (Optional), SATA (Optional)
MemorySlot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4Supports Intel Optane persistent memory 200 seriesView Memory Options

Product SKUs

  • SuperServerSYS-120H-TNR

Motherboard

  • Super X12DHM-6

Processor

  • CPU
    Dual Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache per CPU

GPU

  • Max GPU Count
    Up to 2 double-width GPUs

System Memory

  • Memory
    Slot Count: 32 DIMM slots
    Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 1GbE with Intel I350-AM2 (optional)
    4 RJ45 1GbE with Intel I350-AM4 (optional)
    4 SFP 1GbE with Intel I350-AM4 (optional)
    2 RJ45 10GBASE-T with Intel X550-AT2 (optional)
    2 SFP+ 10GbE with Intel X710-BM2 (optional)
    4 SFP+ 10GbE with Intel XL710-BM1 (optional)
    4 SFP+ 10GbE with Intel X710-TM4 (optional)
    2 SFP28 25GbE with Broadcom BCM57414 (optional)
    4 SFP28 25GbE (optional)
    2 QSFP28 100GbE with Broadcom BCM57508 (optional)

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(rear)
    1 USB 3.0 port(front)
  • Video
    1 VGA port

System BIOS

  • BIOS Type
    AMI 256MB SPI Flash

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-HS119-R1K24P

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    29.4″ (747 mm)
  • Package
    8.1″ (H) x 23.8″ (W) x 40.6″ (D)
  • Weight
    Gross Weight: 49 lbs (22.2 kg)
    Net Weight: 34 lbs (15.4 kg)
  • Available Color

Front Panel

  • LED
    HDD activity
    LAN1 activity
    Power
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 1 PCIe 4.0 x16 FHHL slot 2 PCIe 4.0 x16 FH/10.5″L slots 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
    Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
    (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 NVMe/SATA slots (M-key 2280/22110)

System Cooling

  • Fans
    8 counter-rotating 40x40x56mm Fan(s)

Power Supply

  • 2x 1200W
    2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    12V SB
    Max: 2.1A / Min: 0A
    Output Type
    Backplanes (gold finger)
Products Status

New
Form Factor

1U Rackmount
Application

Server
Interface

NVMe (Optional), SAS (Optional), SATA (Optional)
Memory

Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4Supports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors

2.5"
Chipset

Intel C621A
Generation

X12
CPU

Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
Total PCI-E Slots

3
CPU Type

3rd Gen Intel Xeon Scalable processors
Drives

8
Max GPU

2
Model

SYS-120H-TNR
Fans

8 counter-rotating 40x40x56mm Fan(s)
BIOS Type

AMI 256MB SPI Flash
Depth

29.4" (747 mm)
Height

1.7" (43 mm)
Width

17.2" (437 mm)
Package

8.1" (H) x 23.8" (W) x 40.6" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 49 lbs (22.2 kg)Net Weight: 34 lbs (15.4 kg)
Drive Bays Configuration

Default: Total 8 baysOption A: Total 12 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
Video

1 VGA port
Note

Supports up to 270W TDP CPUs (Air Cooled)
M.2

2 M.2 NVMe/SATA slots (M-key 2280/22110)
LED

HDD activityLAN1 activityPowerSystem information
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
USB

2 USB 3.0 ports(rear)1 USB 3.0 port(front)
Core Count

Up to 40C/80T; Up to 60MB Cache per CPU
Max GPU Count

Up to 2 double-width GPUs
Memory Voltage

1.2V
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
