SYS-120C-TR SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor

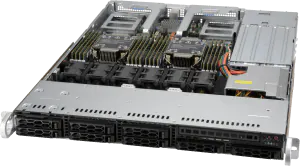

* NOTE: Image may not exactly match the product

SYS-120C-TR SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor

The SYS-120C-TR SuperMicro Rackmount server delivers enterprise-grade performance in a compact 1U form factor, featuring dual processor capability and cutting-edge PCIe 4.0 connectivity. Built on the X12 CloudDC platform, this server maximizes data center efficiency with superior processing power, enhanced bandwidth, and optimized thermal management. Key advantages include space-saving design ideal for high-density deployments, future-proof PCIe 4.0 slots for next-generation storage and networking cards, and SuperMicro’s renowned reliability for mission-critical applications. The dual processor architecture enables exceptional scalability and workload distribution, making it perfect for virtualization, cloud computing, and data-intensive applications where performance per rack unit is paramount.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor1U
Products StatusNew
MemorySlot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors2.5"

Product SKUs

  • SuperServerSYS-120C-TRStandard version with PWS-860P-1R2 (Platinum Level)
  • SuperServerSYS-120C-TR-EUEuropean version with PWS-861A-1R (Titanium Level)

Motherboard

  • Super X12DDW-A6

Processor

  • CPU
    Dual Socket P4 (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache per CPU

GPU

  • Max GPU Count
    Up to 2 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: L4, A2
    Intel PCIe: Intel Data Center GPU Flex 140

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • Chipset
    Intel C621A
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.2 Gen1 Type-A ports(rear)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
  • DOM
    1 Super DOM (Disk on Module) port
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI FLASH ROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-LB13TS-R860AWP

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    23.5″ (597 mm)
  • Package
    7.8″ (H) x 23.8″ (W) x 32.4″ (D)
  • Weight
    Gross Weight: 40 lbs (18.1 kg)
    Net Weight: 25 lbs (11.3 kg)
  • Available Color
    Black front & silver body

Front Panel

  • LED
    Drive activity
    Network activity
    Power status
    Universal Information
  • Buttons
    Power On/Off
    Reset button
    Unit Identifier (UID)

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FHHL slots
    Option A 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap 2.5″ SAS*/SATA drive bays
    (*SAS support may require additional storage controller and/or cables)
  • M.2
    2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
  • Peripheral Bays
    1 slim DVD bay (optional)

System Cooling

  • Fans
    6x 4cm heavy duty fans with optimal fan speed control
  • Air Shroud
    2 Air Shrouds

Power Supply

  • 2x 860W
    2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 322 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac
    860W: 200-240Vdc / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    +12V
    Max: 66.6A / Min: 0A (100Vac-127Vac)
    Max: 71.6A / Min: 0A (200Vdc-240Vdc)
    Max: 71.6A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Form Factor

1U
Products Status

New
Memory

Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors

2.5"
Chipset

Intel C621A
CPU

Dual Socket P4 (LGA-4189)3rd Gen Intel Xeon Scalable processors
CPU Type

3rd Gen Intel Xeon Scalable processors
Generation

X12
Total PCI-E Slots

2
Drives

8
Max GPU

2
Fans

6x 4cm heavy duty fans with optimal fan speed control
Depth

23.5" (597 mm)
Height

1.7" (43 mm)
Width

17.2" (437 mm)
Package

7.8" (H) x 23.8" (W) x 32.4" (D)
PCI-Express (PCIe) Configuration

DefaultOption A
Weight

Gross Weight: 40 lbs (18.1 kg)Net Weight: 25 lbs (11.3 kg)
Drive Bays Configuration

Default: Total 8 bays(*SAS support may require additional storage controller and/or cables)
Video

1 VGA port
Network Connectivity

Via AIOMView AIOM OptionsView AOC Options
BIOS Type

AMI 32MB SPI FLASH ROM
Note

Supports up to 270W TDP CPUs (Air Cooled)**Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
Available Color

Black front & silver body
Interface

SAS (Optional), SATA (Native)
Buttons

Power On/OffReset buttonUnit Identifier (UID)
M.2

2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
USB

2 USB 3.0 ports(rear)
LED

Drive activityNetwork activityPower statusUniversal Information
Application

CDN, Cloud Computing, Compact Server, Data Center Optimized, DNS & Gateway Servers, Edge Nodes, Firewall Application, Value IaaS, Web Server
Max GPU Count

Up to 2 single-width GPUs
Core Count

Up to 40C/80T; Up to 60MB Cache per CPU
Memory Voltage

1.2V
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
TPM

1 TPM Header
Serial

1 COM port(Rear)
Supported GPU

A2Intel PCIe: Intel Data Center GPU Flex 140View GPU Options, NVIDIA PCIe: L4
DOM

DOM
Air Shroud

2 Air Shrouds
ROHS

RoHS Compliant
Peripheral Bays

1 slim DVD bay (optional)
