Supermicro SYS-7049P-TR

The Supermicro SYS-7049P-TR is a high-performance 4U rackmount server designed for demanding enterprise workloads. It features dual Intel Xeon Scalable processor support with up to 28 cores per CPU, delivering exceptional computational power for virtualization, databases, and HPC applications. The system supports up to 3TB of DDR4 memory across 24 DIMM slots, ensuring superior multitasking capabilities and large dataset processing.

Key advantages include 8 hot-swappable 3.5″ drive bays supporting SAS3/SATA3 storage with optional NVMe capability, providing flexible storage configurations up to 128TB capacity. The server offers redundant 1200W 80 PLUS Platinum power supplies for maximum uptime and energy efficiency. Advanced thermal management through optimized airflow design ensures reliable 24/7 operation.

Unique selling points include Supermicro’s Server Management (IPMI 2.0) for remote monitoring, tool-less chassis design for easy maintenance, and extensive I/O expansion with multiple PCIe slots. The system’s enterprise-grade reliability, scalable architecture, and cost-effective total ownership make it ideal for data centers, cloud infrastructure, and mission-critical applications requiring robust performance and dependability.

Quote1 Piece(MOQ)

Premium Client Discounts Available

ApplicationGPU system

Product SKUs

  • SYS-7049P-TR
    SuperServer 7049P-TR ( Black )

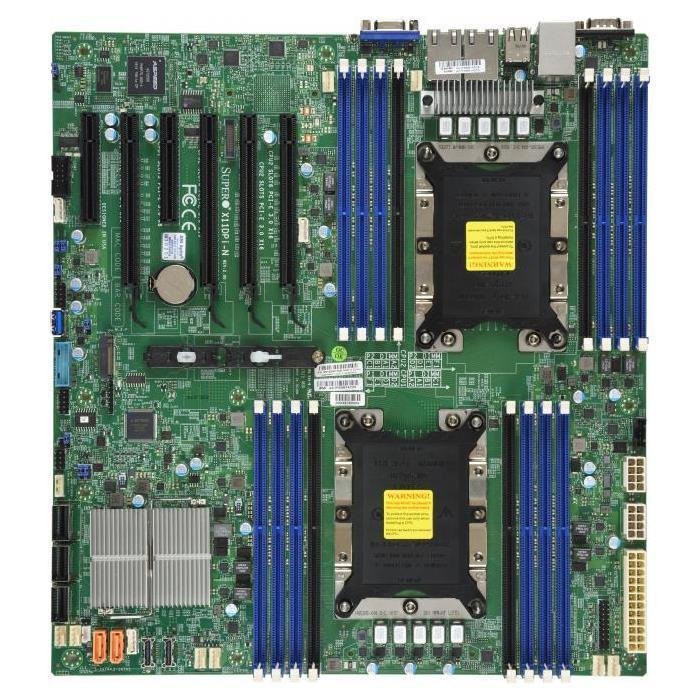

Motherboard

  • Super X11DPi-N

Processor

  • CPU
    Dual Socket P (LGA 3647)
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors , Dual UPI up to 10.4GT/s
    Support CPU TDP 70-205W
  • Cores
    Up to 28 Cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    Supports Intel Optane DCPMM
  • Memory Type
    2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

  • Chipset
    Intel C621 chipset
  • SATA
    SATA3 (6Gbps); RAID 0, 1, 5, 10
  • Network Controllers
    Dual 1GbE LAN with Intel X722
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Video
    ASPEED AST2500 BMC

Input / Output

  • SATA
    8 SATA3 (6Gbps) ports
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
    1 RJ45 Dedicated IPMI LAN port
  • USB
    Rear USB: 2 USB 3.0 + 2 USB 2.0
    Front USB: 2 USB 3.0
    USB Header: 1 Type A
  • Video
    1 VGA port
  • Serial Port / Header
    2 Fast UART 16550 serial
    2 COM Ports (1 rear, 1 header)
  • DOM
    2 Super DOM (Disk on Module) ports

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management

Chassis

  • Form Factor
    4U Rackmountable / Tower
    Optional Rackmount Kit
  • Model
    CSE-745BTS-R1K23B

Dimensions and Weight

  • Height
    17.8″ (452mm)
  • Width
    7.0″ (178mm)
  • Depth
    25.5″ (648mm)
  • Package
    24″ (H) x 14″ (W) x 26.5″ (D)
  • Weight
    Net Weight: 56 lbs (25.6 kg)
    Gross Weight: 73.5 lbs (33.6 kg)
  • Available Colors
    Black

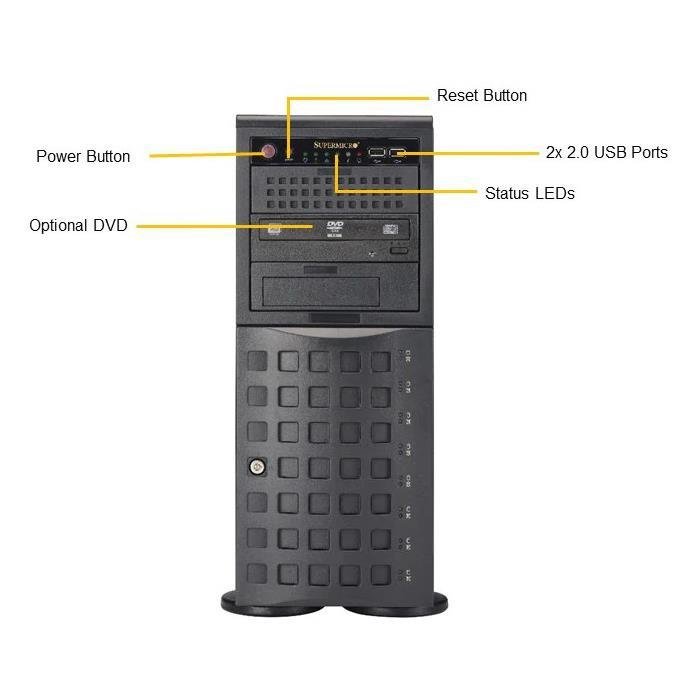

Front Panel

  • Buttons
    Power On/Off button
    System Reset button
  • LEDs
    Power LED
    Hard drive activity LED
    Network activity LEDs
    System Information LED
    Power Fail LED
  • Ports
    2 USB Ports

Expansion Slots

  • PCI-Express
    4 PCI-E 3.0 x16 slots
    2 PCI-E 3.0 x8 slots
    Support total of 6 Full-height AOC

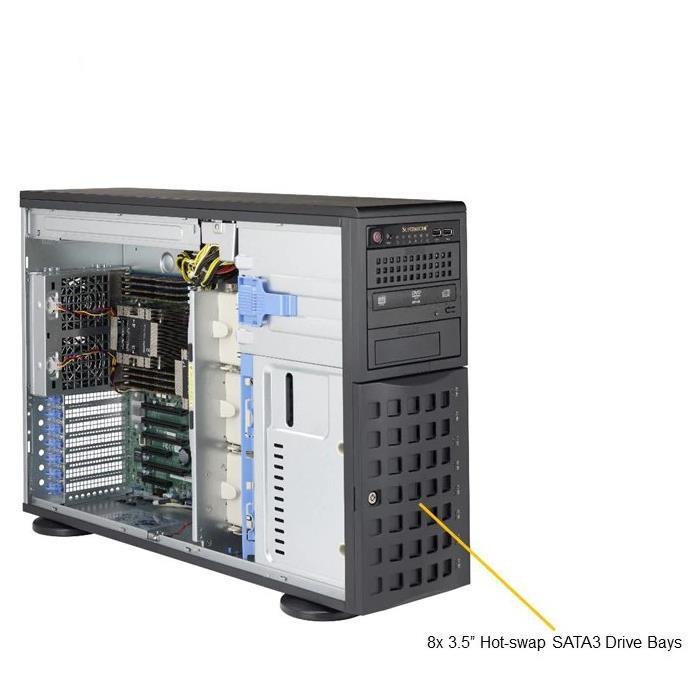

Drive Bays

  • Hot-swap
    8 Hot-swap 2.5″/3.5″ SATA3 (6Gbps) drive bays
  • Peripheral Bays
    3 Peripheral 5.25″ drive bays

SAS / SATA Backplane

  • SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling

  • Fans
    3x 80mm high-performance fans
    2x 80mm PWM Rear Chassis fans

Power Supply

  • 1200W Redundant High-efficiency Power Supplies
  • Total Output Power
    1000W with Input 100 – 127Vac
    1200W with Input 200 – 240Vac
    1200W with Input 200 – 240Vdc (for CCC only)
  • Dimension
    (W x H x L)
    76 x 40 x 336 mm
  • Input
    50-60Hz
  • +12V
    Max: 83A & Min: 0A (100Vac-127Vac)
    Max: 100A & Min: 0A (200Vac-240Vac)
Application

GPU system
