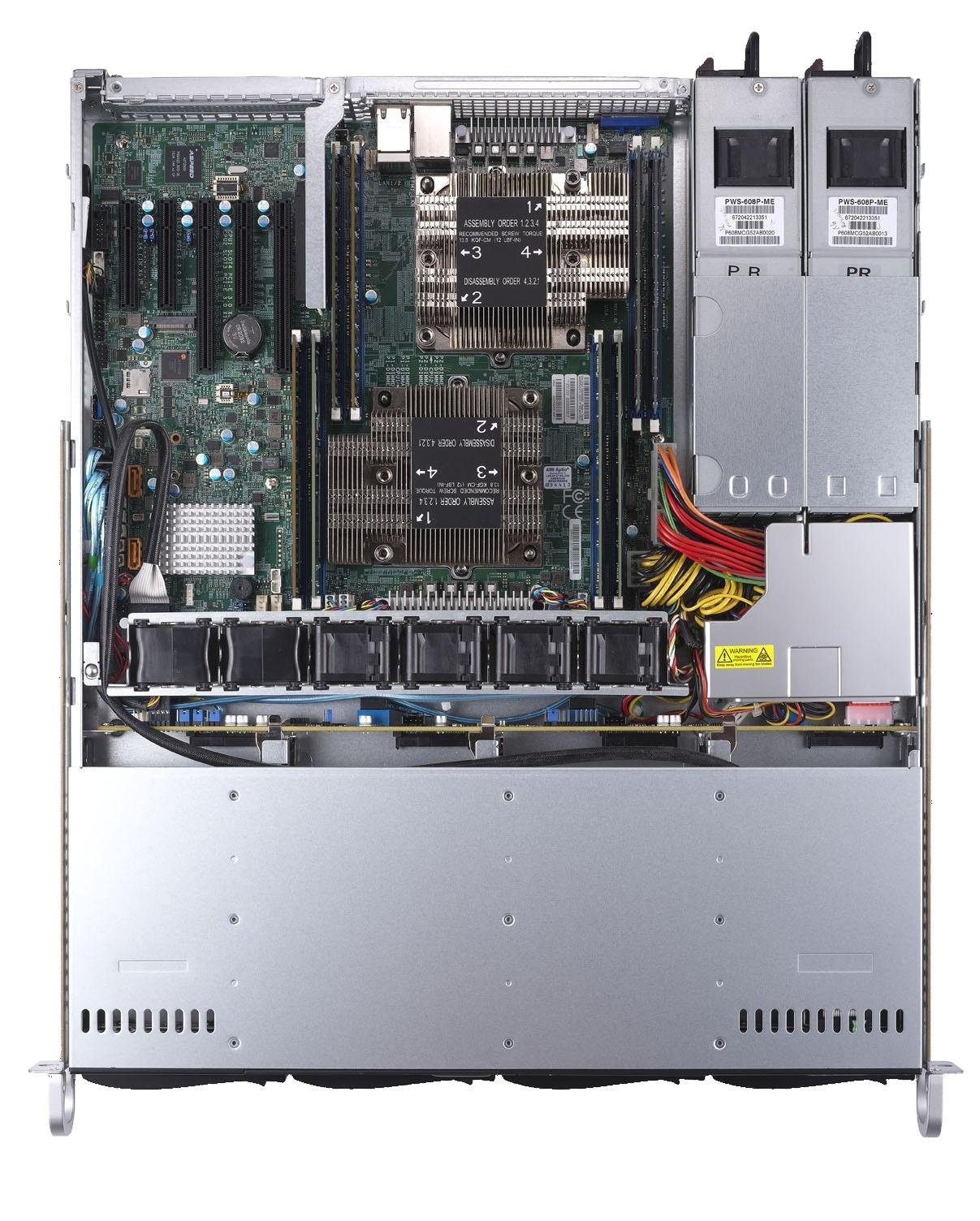

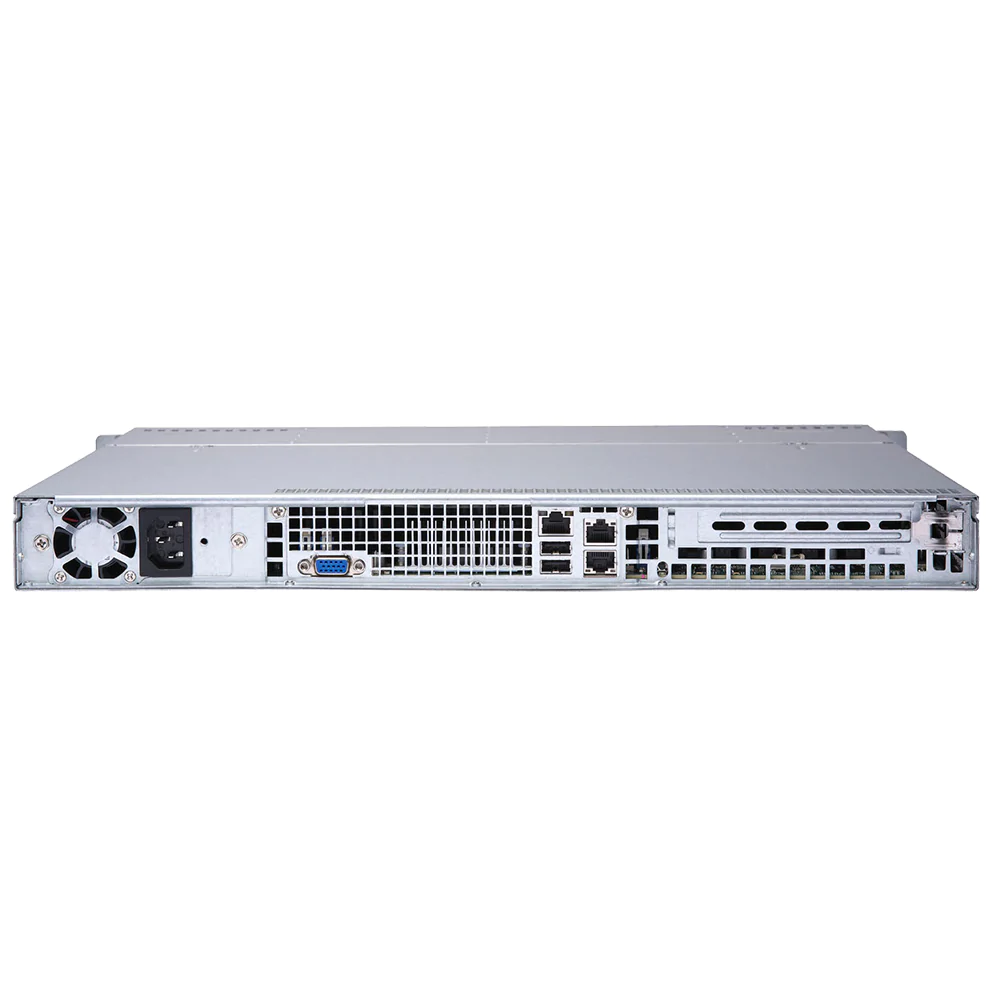

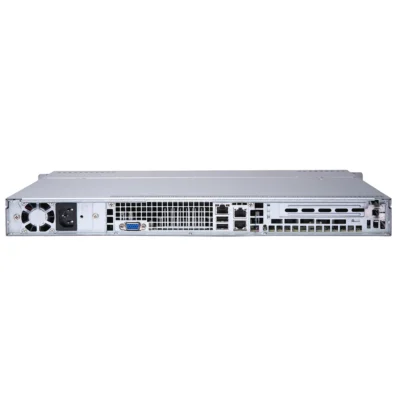

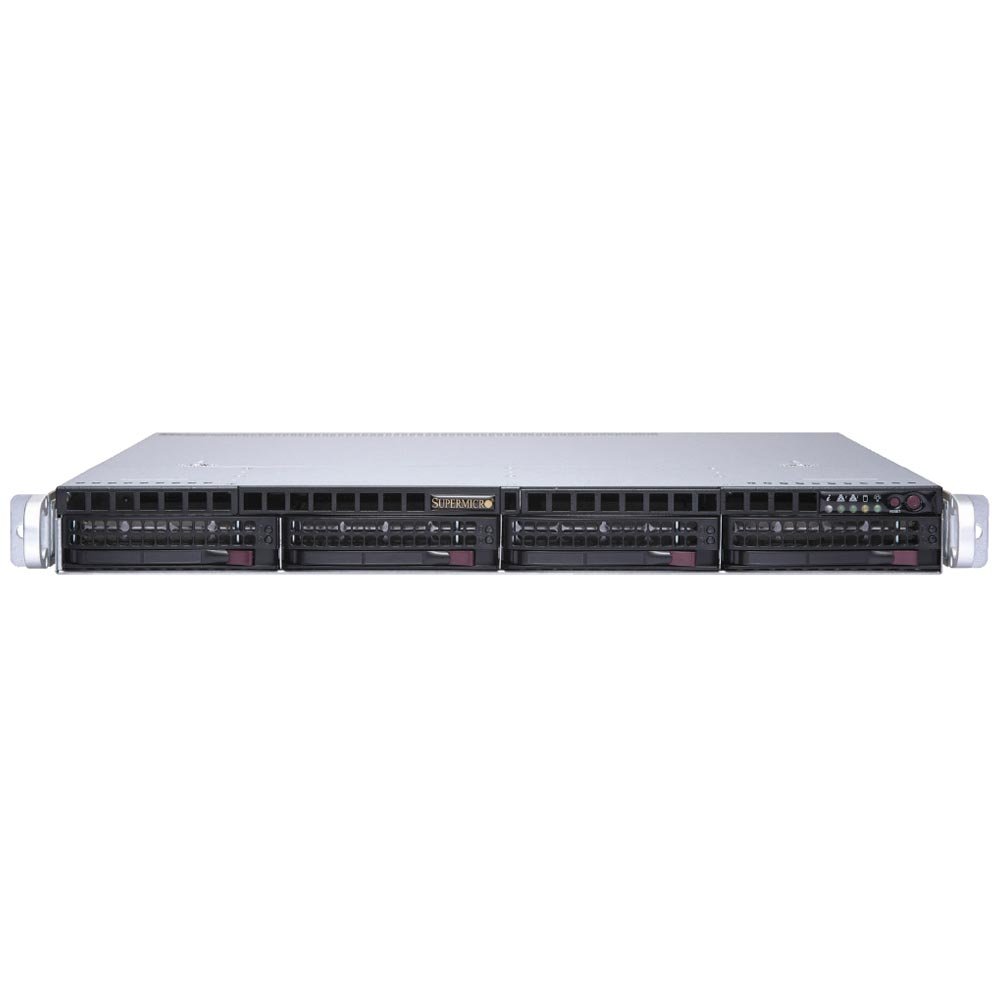

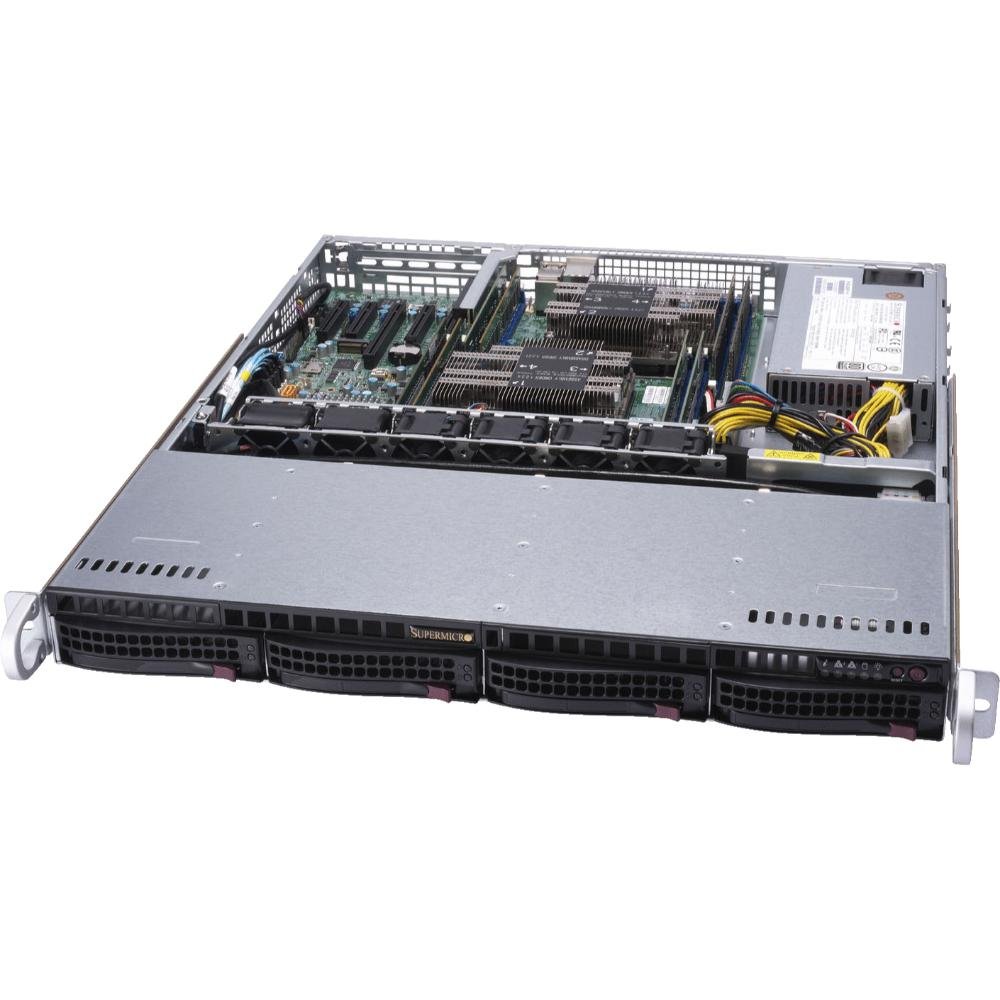

Supermicro SYS-6019P-MTR
Supermicro SYS-6019P-MTR - Image 2
Supermicro SYS-6019P-MTR - Image 3
Supermicro SYS-6019P-MTR - Image 4
Supermicro SYS-6019P-MTR - Image 5
Supermicro SYS-6019P-MTR - Image 6

* NOTE: Image may not exactly match the product

Supermicro SYS-6019P-MTR

The Supermicro SYS-6019P-MTR is a high-performance 1U rackmount server designed for demanding enterprise workloads. Built around Intel Xeon Scalable processors, it delivers exceptional computing power in a compact form factor. Key features include support for up to 1TB of DDR4 ECC memory across 6 DIMM slots, dual 10GbE networking ports for high-speed connectivity, and flexible storage options with 4x 3.5″ hot-swappable drive bays supporting SATA/SAS configurations. The system offers redundant 500W power supplies for maximum uptime and includes comprehensive remote management through IPMI 2.0. Its space-efficient design maximizes data center density while providing enterprise-grade reliability, making it ideal for virtualization, cloud computing, database applications, and edge computing deployments where performance and reliability are critical.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor1U
Products StatusNew
Product SKUsSYS-6019P-MTR
Product SKUs

SYS-6019P-MTR
  • SuperServer 6019P-MTR (Black)

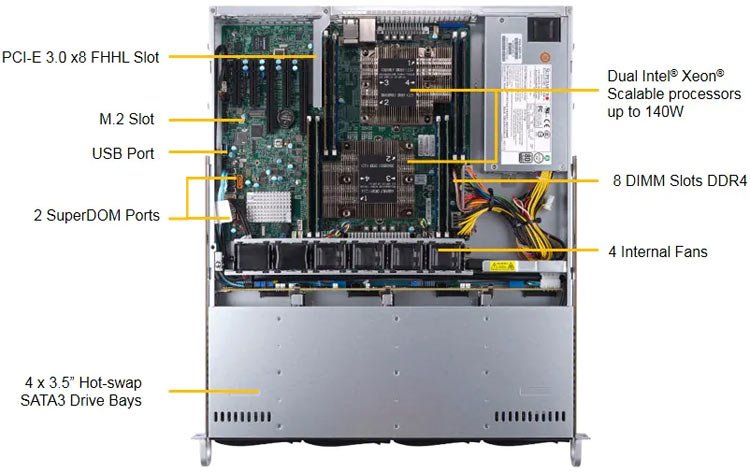

Motherboard


Super X11DPL-i

Processor/Cache

CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-140W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory

Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices

Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Marvell 88E1512 PHY Gigabit Ethernet controller
  • Supports 1000BASE-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS

BIOS Type
  • 256Mb SPI Flash EEPROM with AMI BIOS

Management

Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Brand

Supermicro
Form Factor

1U
Products Status

New
Product SKUs

SYS-6019P-MTR
