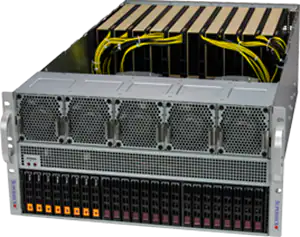

SuperMicro SYS-521GE-TNRT X13 GPU System

* NOTE: Image may not exactly match the product

SuperMicro SYS-521GE-TNRT X13 GPU System

The SuperMicro SYS-521GE-TNRT X13 GPU System is a high-performance 2U rackmount server engineered for AI, machine learning, and GPU-intensive workloads. This powerhouse supports up to 4 full-height, full-length GPUs with optimized cooling and power delivery, making it ideal for deep learning training, inference, and high-performance computing applications.

Key features include dual Intel Xeon Scalable processor support, up to 4TB of DDR4 memory capacity, and flexible storage options with multiple NVMe and SATA drive bays. The system’s advanced thermal management ensures sustained performance under heavy GPU loads, while redundant power supplies provide enterprise-grade reliability.

The X13 platform delivers exceptional compute density in a compact 2U form factor, offering superior price-to-performance ratio for data centers and research facilities. Its tool-less chassis design enables rapid deployment and maintenance, while comprehensive remote management capabilities streamline operations. This system excels in accelerating AI model training, scientific simulations, and parallel computing tasks where maximum GPU performance is critical.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor5U
Products StatusNew
MemorySlot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options
Drive Form Factors2.5"

Product SKUs

  • SuperServerSYS-521GE-TNRT
  • SuperServerSYS-521GE-TNRT-G1Gold Series version with pre-configured components

Motherboard

  • Super X13DEG-OA

Processor

  • CPU
    Dual Socket E (LGA-4677)
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
  • Core Count
    Up to 64C/128T; Up to 320MB Cache per CPU

GPU

  • Max GPU Count
    Up to 10 double-width or 10 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: H100 NVL, RTX 6000 Ada Generation, L40S, L4
  • CPU-GPU Interconnect
    PCIe 5.0 x16 Switch Dual-Root
  • GPU-GPU Interconnect
    NVIDIA NVLink Bridge (optional)

System Memory

  • Memory
    Slot Count: 32 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
  • Memory Voltage
    1.1V

On-Board Devices

  • Chipset
    Intel C741
  • Network Connectivity
    2 RJ45 10GbE with Intel X710-AT2

Input / Output

  • Video
    1 VGA port

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    5U Rackmount
  • Model
    CSE-528GTS-R5K40P

Dimensions and Weight

  • Height
    8.75″ (222.5 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    29″ (737 mm)
  • Package
    17.32″ (H) x 28.34″ (W) x 42.51″ (D)
  • Weight
    Gross Weight: 100 lbs (45.3 kg)
    Net Weight: 65.5 lbs (29.7 kg)
  • Available Color
    Black Front & Silver Body

Front Panel

  • LED
    Hard drive activity LED
    Network activity LEDs
    Power status LED
    System Overheat & Power Fail LED
  • Buttons
    Power On/Off button
    System Reset button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 13 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 16 bays 8 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ SATA drive bays
    Option A: Total 24 bays 8 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ NVMe* drive bays 8 front hot-swap 2.5″ SATA drive bays
    (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 NVMe slots (M-key)

System Cooling

  • Fans
    10 heavy duty fans with optimal fan speed control
  • Air Shroud
    1 Air Shroud
  • Liquid Cooling
    Direct to Chip (D2C) Cold Plate (optional)

Power Supply

  • 4x 2700W
    4x 2700W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 203 mm
    Input
    2700W: 200-240Vac
    2700W: 200-240Vac / 50-60Hz
    2700W: 240-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 225A / Min: 0A (200Vac-240Vac)
    Max: 225A / Min: 0A (240Vdc-240Vdc)
    12V SB
    Max: 3.5A / Min: 0A
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Form Factor

5U
Products Status

New
Memory

Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options
Drive Form Factors

2.5"
Chipset

Intel C741
CPU

Dual Socket E (LGA-4677)5th Gen Intel Xeon
CPU Type

5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors
Generation

X13
Total PCI-E Slots

13
Drives

16
Max GPU

Up to 10
Fans

10 heavy duty fans with optimal fan speed control
Depth

29" (737 mm)
Height

8.75" (222.5 mm)
Width

17.2" (437 mm)
Package

17.32" (H) x 28.34" (W) x 42.51" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 100 lbs (45.3 kg)Net Weight: 65.5 lbs (29.7 kg)
Drive Bays Configuration

Default: Total 16 baysOption A: Total 24 bays(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
Video

1 VGA port
Network Connectivity

2 RJ45 10GbE with Intel X710-AT2View AIOM OptionsView AOC Options
BIOS Type

AMI 32MB SPI Flash EEPROM
Note

Supports up to 350W TDP CPUs (Air Cooled)Supports up to 385W TDP CPUs (Liquid Cooled)
Available Color

Black front & silver body
Buttons

Power On/Off buttonSystem Reset button
M.2

2 M.2 NVMe slots (M-key)
LED

Hard drive activity LEDNetwork activity LEDsPower status LEDSystem Overheat & Power Fail LED
Application

3D Rendering, AI/Deep Learning Training, Animation and Modeling, Cloud Gaming, Design & Visualization, Diagnostic Imaging, High Performance Computing, Media/Video Streaming, VDI
Max GPU Count

Up to 10 double-width or 10 single-width GPUs
Core Count

Up to 64C/128T; Up to 320MB Cache per CPU
Memory Voltage

1.1V
CPU-GPU Interconnect

PCIe 5.0 x16 Switch Dual-Root
Supported GPUs

NVIDIA PCIe: H100 NVL, H100, L40S, A100
GPU-GPU Interconnect

NVIDIA NVLink Bridge (optional)
Air Shroud

1 Air Shroud
Liquid Cooling

Direct to Chip (D2C) Cold Plate (optional)
