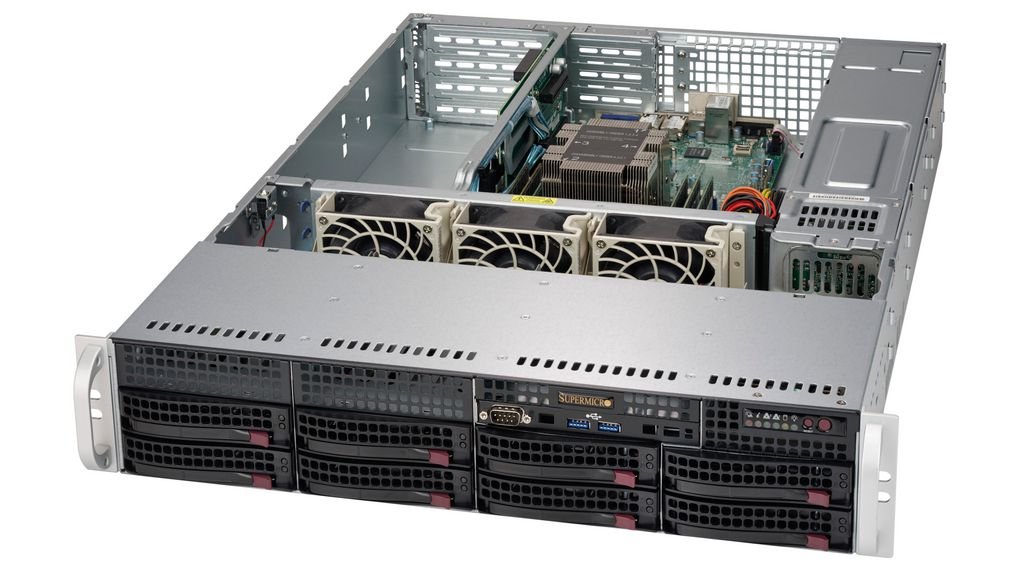

Supermicro SYS-5029P-WTR

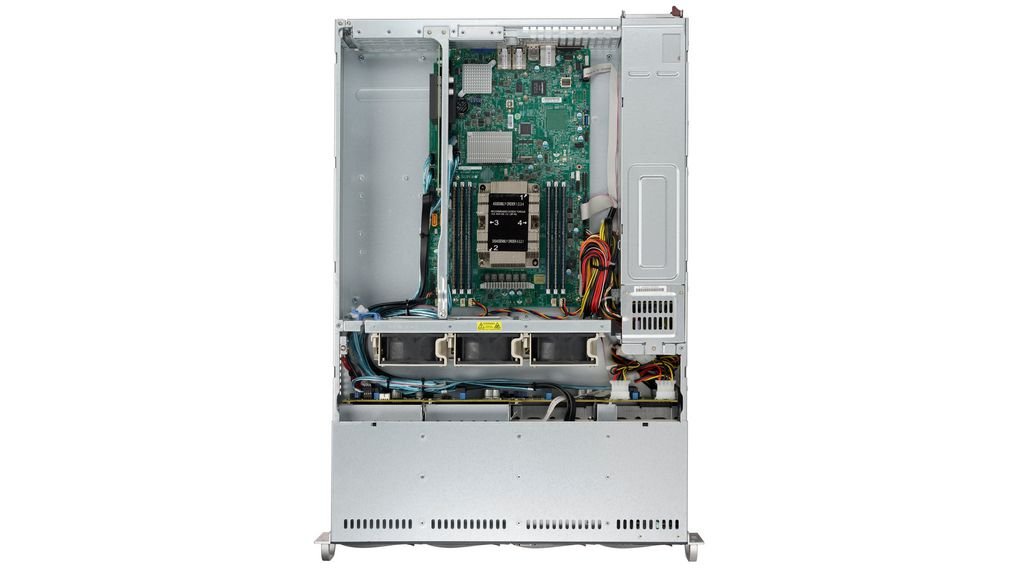

Supermicro SYS-5029P-WTR - Image 2

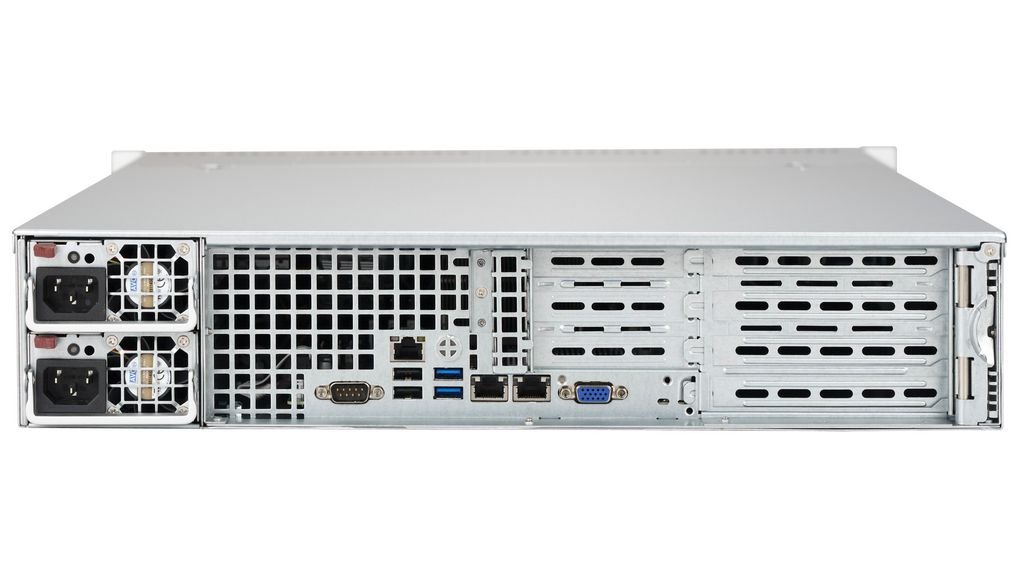

Supermicro SYS-5029P-WTR - Image 3

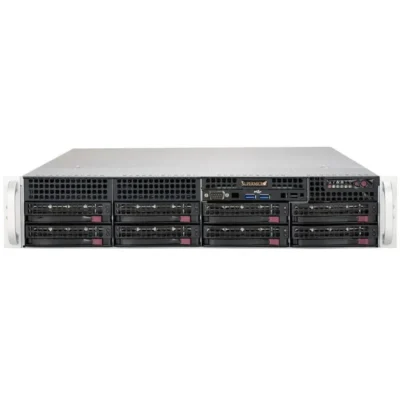

Supermicro SYS-5029P-WTR - Image 4

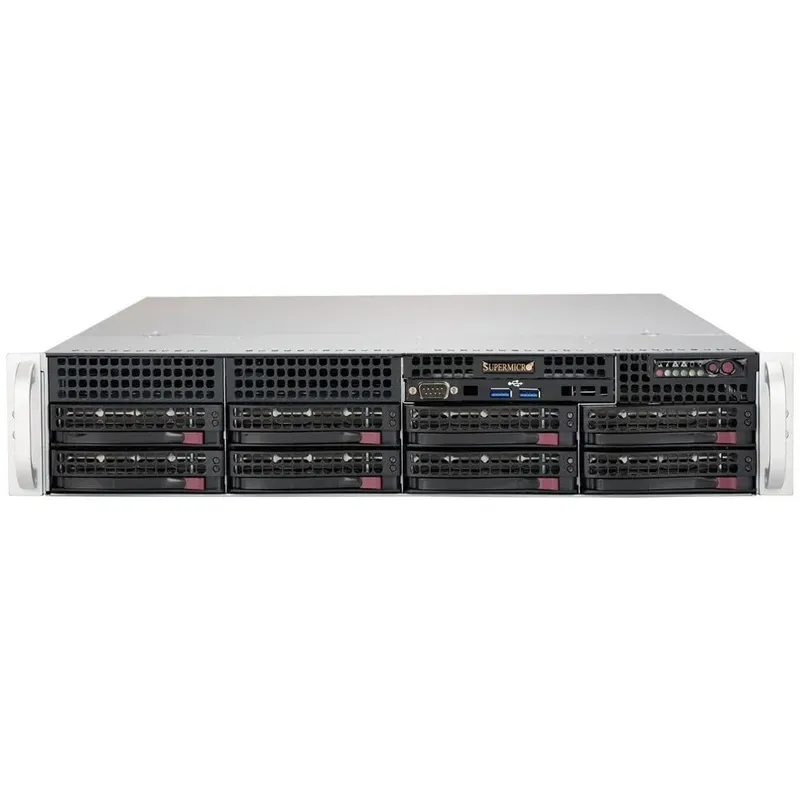

Supermicro SYS-5029P-WTR - Image 5

* NOTE: Image may not exactly match the product

Supermicro SYS-5029P-WTR

The Supermicro SYS-5029P-WTR is a high-performance 1U rackmount server designed for demanding enterprise workloads. Built on Intel’s Xeon Scalable processor platform, it delivers exceptional computing power in a compact form factor. Key features include support for up to 1TB of DDR4 ECC memory across 6 DIMM slots, dual 10GbE networking ports for high-speed connectivity, and flexible storage options with 4x 3.5″ hot-swappable drive bays supporting SATA/SAS configurations. The system features redundant 500W power supplies for enhanced reliability and includes IPMI 2.0 with dedicated management port for remote administration. Its tool-less chassis design enables rapid deployment and maintenance, while the optimized airflow and thermal management ensure reliable 24/7 operation. Ideal for virtualization, cloud computing, database applications, and edge computing deployments where space efficiency, performance, and reliability are critical requirements.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

ApplicationGPU system

Product SKUs

  • SYS-5029P-WTR
    SuperServer 5029P-WTR ( Black )

Motherboard

  • Super X11SPW-TF

Processor

  • CPU
    Single Socket P (LGA 3647)
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Support CPU TDP 70-205W *
  • Cores
    Up to 28 Cores

System Memory

  • Memory Capacity
    6 DIMM slots
    Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Memory Type
    2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

  • Chipset
    Intel C622 chipset
  • SATA
    SATA3 (6Gbps); RAID 0, 1, 5, 10
  • Network Controllers
    Dual 10GBase-T LAN with Intel X722 + X557
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Video
    ASPEED AST2500 BMC

Input / Output

  • SATA
    10 SATA3 (6Gbps) ports
  • LAN
    2 RJ45 10GBase-T LAN ports
    1 RJ45 dedicated IPMI LAN port
  • USB
    5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    7 USB 2.0 ports (2 rear + 5 headers)
  • Video
    1 VGA port
  • Serial Port / Header
    2 COM ports (1 rear, 1 front)
  • SuperDOM
    2 SuperDOM (Disk on Module) ports with built-in power

System BIOS

  • BIOS Type
    AMI 32Mb SPI Flash ROM

Management

  • Power Configurations
    ACPI / APM Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-825TQC-R609WB

Dimensions and Weight

  • Height
    3.5″ (89mm)
  • Width
    17.2″ (437mm)
  • Depth
    25.5″ (647mm)
  • Package
    26.5″ (W) x 11″ (H) x 34″ (L)
  • Weight
    Gross Weight: 59 lbs (26.76 kg)
    Net Weight: 34 lbs (15.42 kg)
  • Available Colors
    Black

Front Panel

  • Buttons
    Power On/Off button
    System Reset button
  • LEDs
    Power LED
    Hard drive activity LED
    Network activity LEDs
    System Information LED
    Information LED (temp., status)

Expansion Slots

  • PCI-Express
    4 PCI-E 3.0 x8 (FHFL) slots
    1 PCI-E 3.0 x8 (LP) slot
  • M.2
    1x M.2 Interface: PCI-E 3.0 x4 and SATA
    Form Factor: 2280, 22110
    Key: M-Key
    Double Height Connector

Drive Bays

  • Hot-swap
    8 Hot-swap 3.5″ SATA3 drive bays

Peripheral Drives

  • DVD-ROM
    1 Slim DVD-ROM drive bay

System Cooling

  • Fans
    3 Hot-swap 8cm PWM cooling fans

Power Supply

  • 600W/650W high-efficiency redundant power supplies with PMBus
  • AC Input
    100-127 Vac (600W)
    200-240 Vac (650W)
  • DC Output
    200-240 Vdc (650W)
  • +12V
    50 Amp (600W)
    54.16 Amp (650W)
    54.16 Amp (650W)
  • 12V Standby
    4A
Application

GPU system
