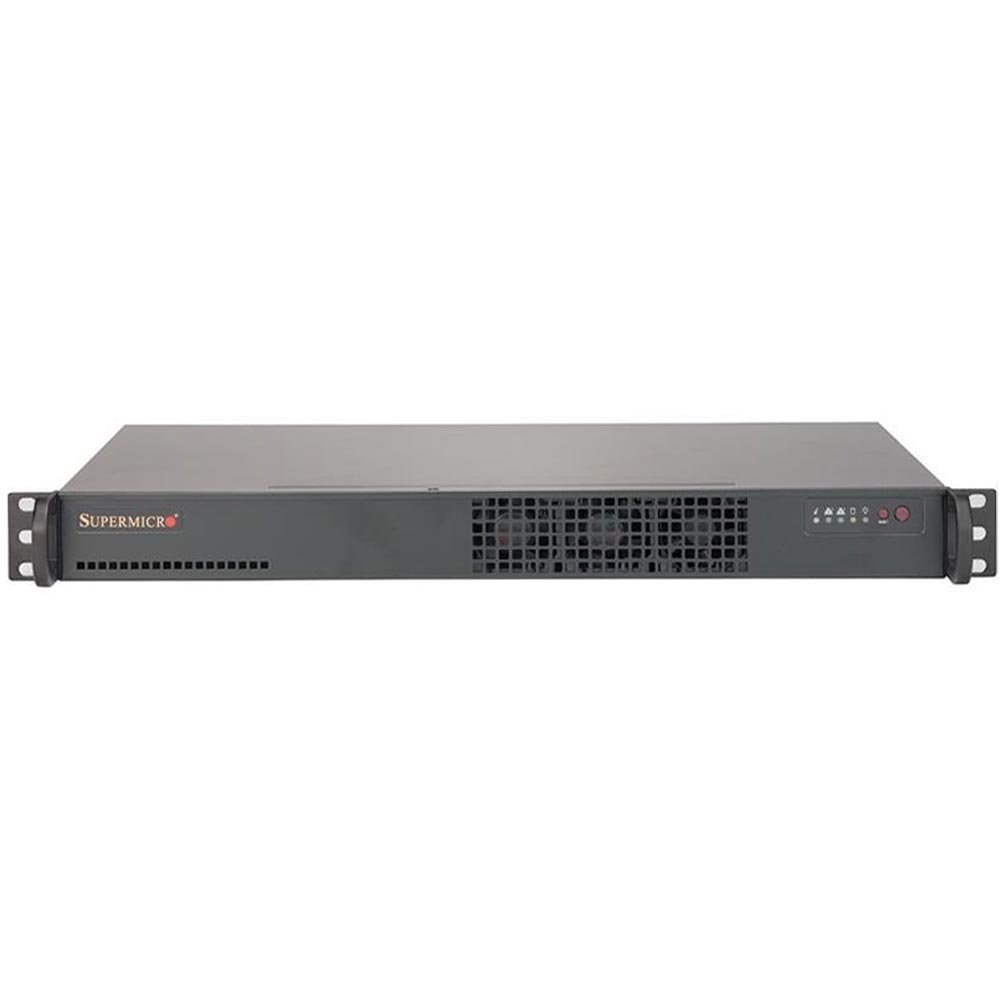

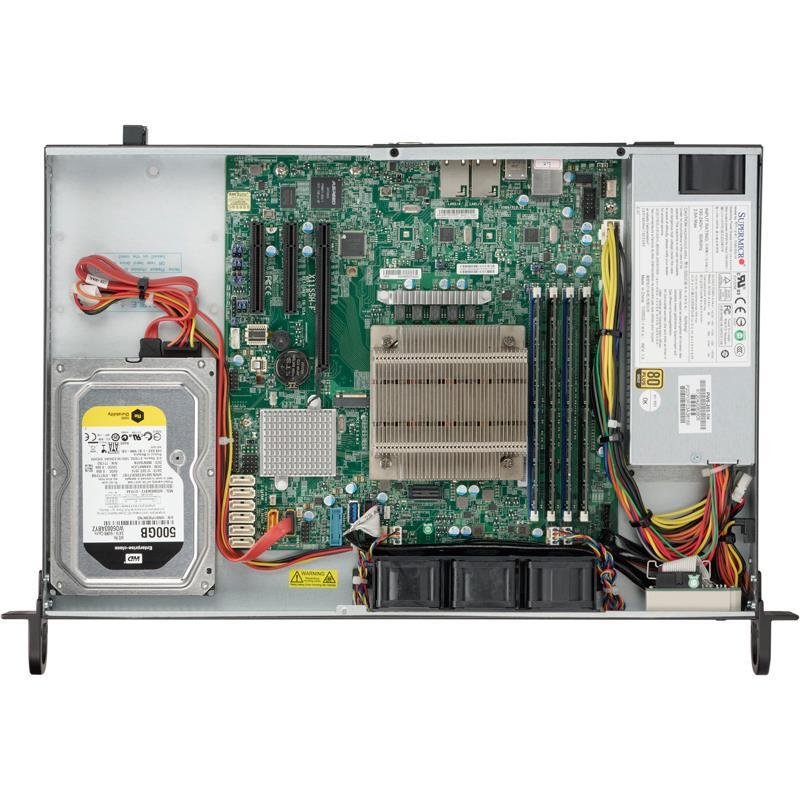

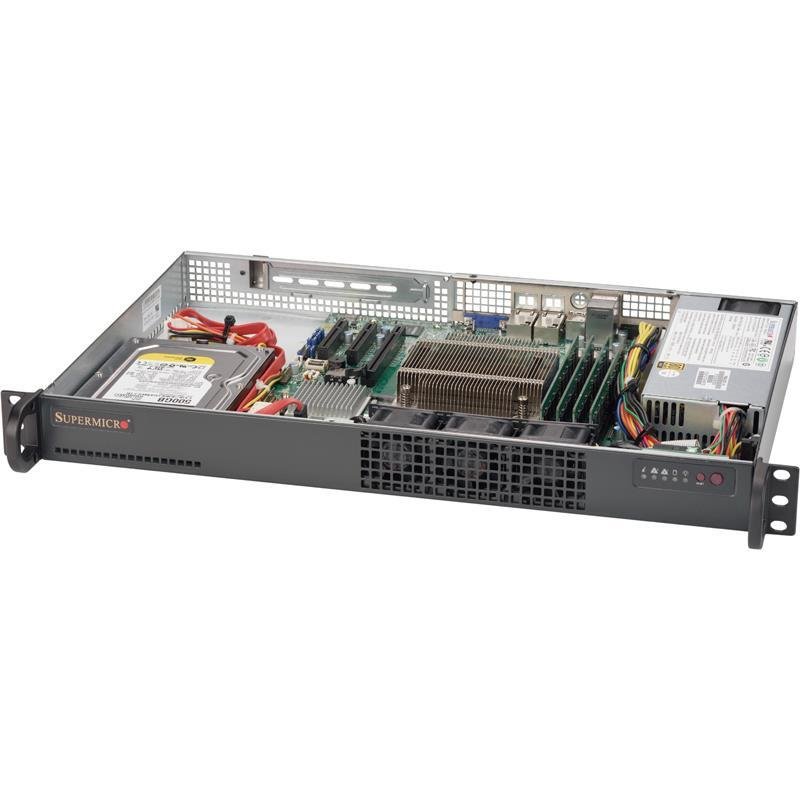

Supermicro SYS-5019S-L

The Supermicro SYS-5019S-L is a compact 1U rackmount server designed for small to medium businesses and edge computing applications. This single-socket system supports Intel Xeon E3-1200 v6/v5 and 8th/9th generation Core processors, delivering enterprise-grade performance in a space-efficient form factor.

**Key Features:**
– Single LGA1151 socket supporting up to 64GB DDR4 ECC memory
– Four 3.5″ hot-swappable drive bays for flexible storage configurations
– Dual Gigabit Ethernet ports with Intel controllers
– Integrated IPMI 2.0 for remote management
– 300W 80 PLUS Gold power supply for energy efficiency
– Tool-free chassis design for easy maintenance

**Benefits:**
– Cost-effective entry point into enterprise server infrastructure
– Excellent performance-per-watt ratio reduces operational costs
– Hot-swappable components minimize downtime
– Compact 1U design maximizes rack density
– Enterprise-grade reliability with ECC memory support

**Unique Selling Points:**
– Supermicro’s proven server expertise at an accessible price point
– Optimized thermal design ensures quiet operation suitable for office environments
– Comprehensive remote management capabilities typically found in higher-end systems
– Flexible storage options accommodate diverse workload requirements
– Strong upgrade path with support for latest Intel processors

Ideal for file servers, web hosting, virtualization, and small database applications requiring reliable, manageable infrastructure.

Quote1 Piece(MOQ)

Premium Client Discounts Available

Product SKUs

SYS-5019S-L
  • SuperServer 5019S-L (Black)

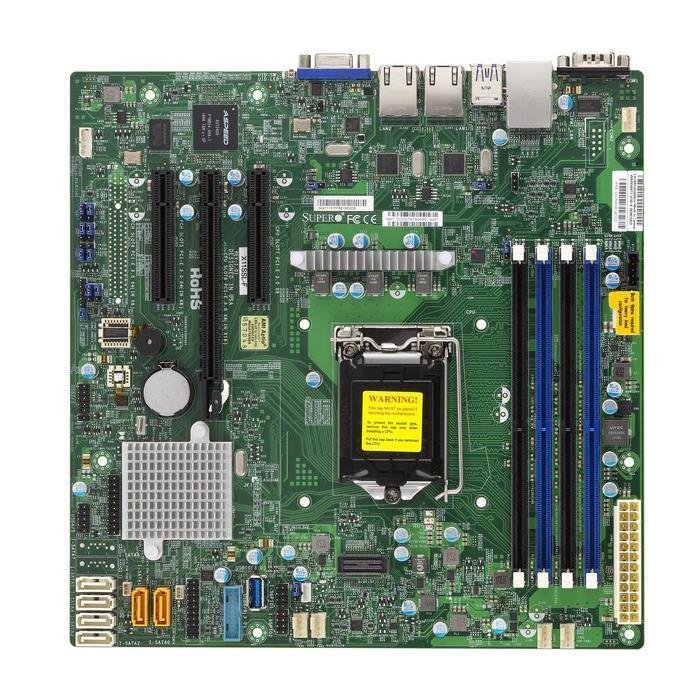

Motherboard


Super X11SSL-F

Processor

CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen Core™ i3
  • CPU TDP up to 45W, 80W option fan
Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory

Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
  • Intel® C232 chipset
SATA
  • SATA3 (6Gbps) via C232 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
  • ASPEED AST2400 BMC

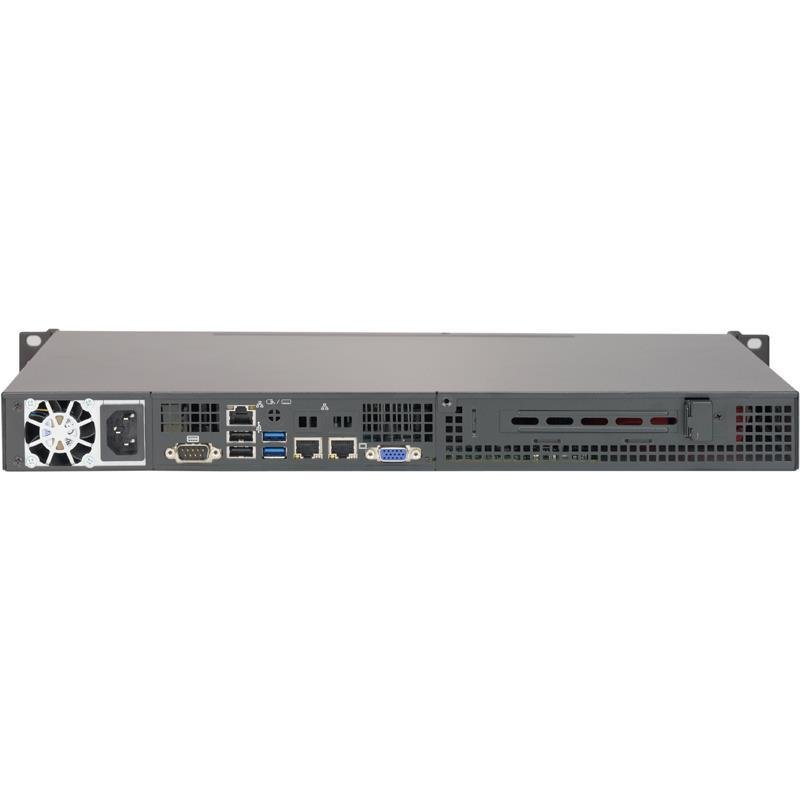

Input / Output

SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 DedicatedIPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • 6 USB 2.0 ports (2 rear + 4 headers)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (1 rear)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power

PC Health Monitoring

Voltage
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • 4 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System Information LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • RoHS, Halogen Free
