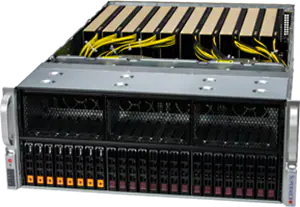

SuperMicro SYS-421GE-TNRT X13 GPU System

* NOTE: Image may not exactly match the product

SuperMicro SYS-421GE-TNRT X13 GPU System

The SuperMicro SYS-421GE-TNRT X13 GPU System is a high-performance 4U rackmount server engineered for AI, machine learning, and HPC workloads. This powerhouse supports up to 8 dual-slot GPUs with advanced cooling architecture, delivering exceptional computational density for data centers. Built on Intel’s latest Xeon processors with DDR5 memory support, it offers superior processing power and bandwidth. Key features include redundant power supplies for maximum uptime, flexible PCIe 5.0 expansion slots, and SuperMicro’s proven thermal management system that maintains optimal performance under heavy GPU loads. The system’s tool-less design enables rapid deployment and maintenance, while its energy-efficient architecture reduces operational costs. Ideal for organizations requiring massive parallel processing capabilities, this GPU-optimized platform accelerates deep learning training, scientific simulations, and rendering workloads while maintaining enterprise-grade reliability and scalability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor4U
Products StatusNew
MemorySlot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options
Drive Form Factors2.5"

Product SKUs

  • SuperServerSYS-421GE-TNRT

Motherboard

  • Super X13DEG-OA

Processor

  • CPU
    Dual Socket E (LGA-4677)
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
  • Core Count
    Up to 64C/128T; Up to 320MB Cache per CPU

GPU

  • Max GPU Count
    Up to 10 double-width or 10 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: RTX 5000 Ada, L40, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A10
  • CPU-GPU Interconnect
    PCIe 5.0 x16 Switch Dual-Root
  • GPU-GPU Interconnect
    NVIDIA NVLink Bridge (optional), Intel Xe Link Bridges

System Memory

  • Memory
    Slot Count: 32 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM
    Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
  • Memory Voltage
    1.1V

On-Board Devices

  • Chipset
    Intel C741
  • Network Connectivity
    2 RJ45 10GbE with Intel X710-AT2

Input / Output

  • Video
    1 VGA port

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    4U Rackmount
  • Model
    CSE-418G2TS-R5K40P

Dimensions and Weight

  • Height
    7″ (178 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    29″ (737 mm)
  • Package
    26.57″ (H) x 27″ (W) x 41″ (D)
  • Weight
    Gross Weight: 100 lbs (45.3 kg)
    Net Weight: 65.5 lbs (29.7 kg)
  • Available Color
    Black Front & Silver Body

Front Panel

  • LED
    Hard drive activity LED
    Network activity LEDs
    Power status LED
    System Overheat & Power Fail LED
  • Buttons
    Power On/Off button
    System Reset button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 13 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 16 bays 8 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ SATA drive bays
    Option A: Total 24 bays 8 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ NVMe* drive bays 8 front hot-swap 2.5″ SATA drive bays
    (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 NVMe slots (M-key)

System Cooling

  • Fans
    8 heavy duty fans with optimal fan speed control
  • Liquid Cooling
    Direct to Chip (D2C) Cold Plate (optional)

Power Supply

  • 4x 2700W
    4x 2700W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 203 mm
    Input
    2700W: 200-240Vac
    2700W: 200-240Vac / 50-60Hz
    2700W: 240-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 225A / Min: 0A (200Vac-240Vac)
    Max: 225A / Min: 0A (240Vdc-240Vdc)
    12V SB
    Max: 3.5A / Min: 0A
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Form Factor

4U
Products Status

New
Memory

Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options
Chipset

Intel C741
CPU

Dual Socket E (LGA-4677)5th Gen Intel Xeon
Total PCI-E Slots

13
Fans

8 heavy duty fans with optimal fan speed control
Depth

29" (737 mm)
Height

7" (178 mm)
Width

17.2" (437 mm)
Package

26.57" (H) x 27" (W) x 41" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 100 lbs (45.3 kg)Net Weight: 65.5 lbs (29.7 kg)
Drive Bays Configuration

Default: Total 16 baysOption A: Total 24 bays(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
Video

1 VGA port
Network Connectivity

2 RJ45 10GbE with Intel X710-AT2View AIOM OptionsView AOC Options
BIOS Type

AMI 32MB SPI Flash EEPROM
Note

Supports up to 350W TDP CPUs (Air Cooled)Supports up to 385W TDP CPUs (Liquid Cooled)
Available Color

Black front & silver body
Buttons

Power On/Off buttonSystem Reset button
M.2

2 M.2 NVMe slots (M-key)
LED

Hard drive activity LEDNetwork activity LEDsPower status LEDSystem Overheat & Power Fail LED
Application

3D Rendering, AI/Deep Learning Training, Animation and Modeling, Cloud Gaming, Design & Visualization, Diagnostic Imaging, High Performance Computing, Media/Video Streaming, VDI
Max GPU Count

Up to 10 double-width or 10 single-width GPUs
Core Count

Up to 64C/128T; Up to 320MB Cache per CPU
Memory Voltage

1.1V
CPU-GPU Interconnect

PCIe 5.0 x16 Switch Dual-Root
Supported GPUs

Intel PCIe: Data Center GPU Max 1100~ NVIDIA PCIe: H100, RTX A4000, RTX 6000 Ada Generation, L40S, A100, A10, L40
GPU-GPU Interconnect

Intel Xe Link Bridges, NVIDIA NVLink Bridge (optional)
Liquid Cooling

Direct to Chip (D2C) Cold Plate (optional)
