Product SKUs

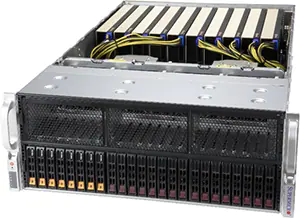

- SuperServerSYS-420GP-TNR
Motherboard
- Super X12DPG-OA6
Processor
- CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 40C/80T; Up to 60MB Cache per CPU
GPU
- Max GPU Count
Up to 10 double-width or 10 single-width GPUs
- Supported GPU
NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A40, A30, A16, A2, A100, A10
Intel PCIe: Intel Data Center GPU Flex 170 - CPU-GPU Interconnect
PCIe 4.0 x16 Switch Dual-Root
- GPU-GPU Interconnect
NVIDIA NVLink Bridge (optional)
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 1GbE with Intel I350
Input / Output
- Video
1 VGA port
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
4U Rackmount
- Model
CSE-418G2TS-R4016BP
Dimensions and Weight
- Height
7″ (178 mm)
- Width
17.2″ (437 mm)
- Depth
29″ (737 mm)
- Package
26.57″ (H) x 27″ (W) x 41″ (D)
- Weight
Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg) - Available Color
Black Front & Silver Body
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 12 PCIe 4.0 x16 FHFL slots
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 24 bays 8 front hot-swap 2.5″ NVMe drive bays 16 front hot-swap 2.5″ SAS/SATA drive bays
Option A: Total 24 bays 24 front hot-swap 2.5″ NVMe*/SAS/SATA drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 NVMe/SATA slots (M-key)
System Cooling
- Fans
8 heavy duty fans with optimal fan speed control
Power Supply
- 4x 2000W
4x 2000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Max: 3.5A
Output Type
Backplanes (gold finger)
