Supermicro SYS-210P-FRDN6T

The Supermicro SYS-210P-FRDN6T is a high-performance 2U rackmount server designed for demanding enterprise workloads. This dual-socket system supports 4th Gen Intel Xeon Scalable processors with up to 56 cores per CPU, delivering exceptional computational power for virtualization, databases, and HPC applications.

**Key Features:**
– Dual Intel Xeon Scalable processor support (4th Gen)
– 32 DIMM slots supporting up to 8TB DDR5 memory
– 6x 3.5″ hot-swappable drive bays for flexible storage
– Dual 10GbE networking ports
– Redundant 1200W 80 PLUS Titanium power supplies
– Advanced thermal management with optimal airflow design

**Benefits:**
– Maximizes performance density in compact 2U form factor
– Reduces operational costs through energy-efficient components
– Ensures high availability with redundant power and hot-swappable components
– Scales seamlessly to meet growing business demands
– Minimizes downtime with enterprise-grade reliability features

**Unique Selling Points:**
– Supermicro’s proven server architecture with over 25 years of innovation
– Optimized for both general-purpose computing and specialized workloads
– Tool-less chassis design for simplified maintenance
– Comprehensive management through Supermicro Server Manager (SSM)
– Cost-effective solution without compromising performance or reliability

Ideal for data centers, cloud infrastructure, and enterprise environments requiring robust, scalable computing power.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor1U
Products StatusNew
Product SKUsSYS-210P-FRDN6T
Product SKUs

SYS-210P-FRDN6T
  • SuperServer SYS-210P-FRDN6T (Silver/Black)

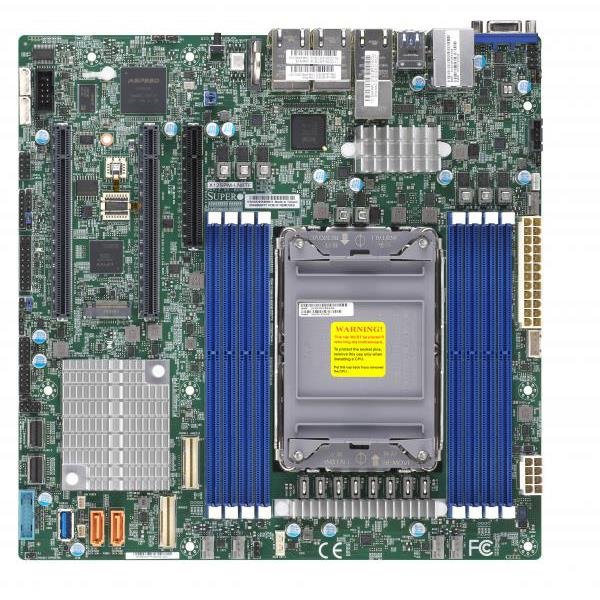

Motherboard



Super X12SPM-LN6TF

Processor

CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 85-270W
  • Please contact Supermicro Technical Support for supporting conditions of high power (TDP >205W) processors.
Cores
  • Up to 36C/72T; Up to 60MB Cache

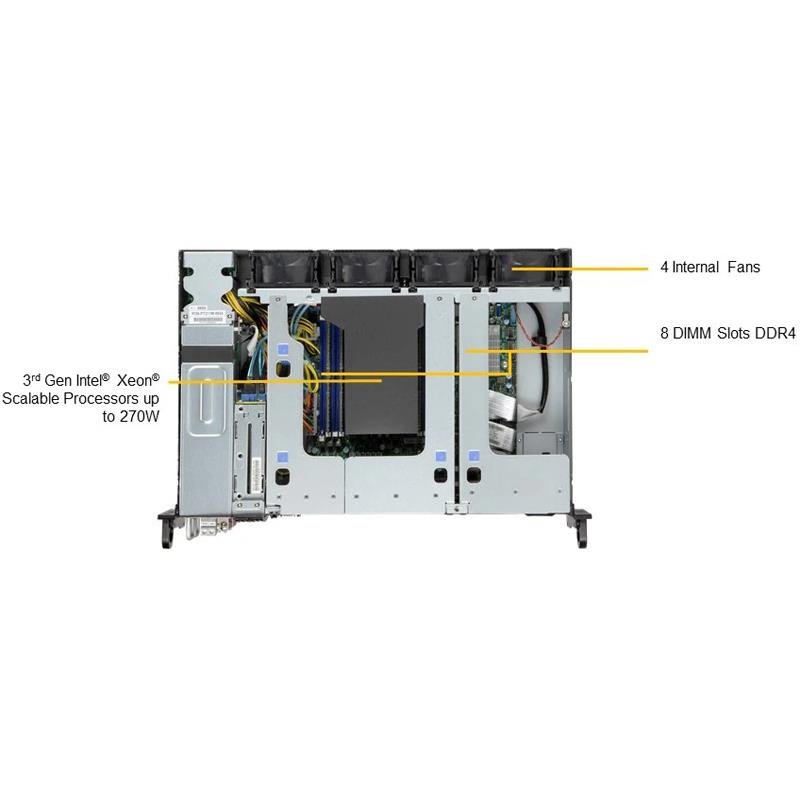

System Memory

Memory
  • Memory Capacity: 8 DIMM slots
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices

SATA
  • SATA3 (6Gbps); RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1/10GbE port(s); 4x 1GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

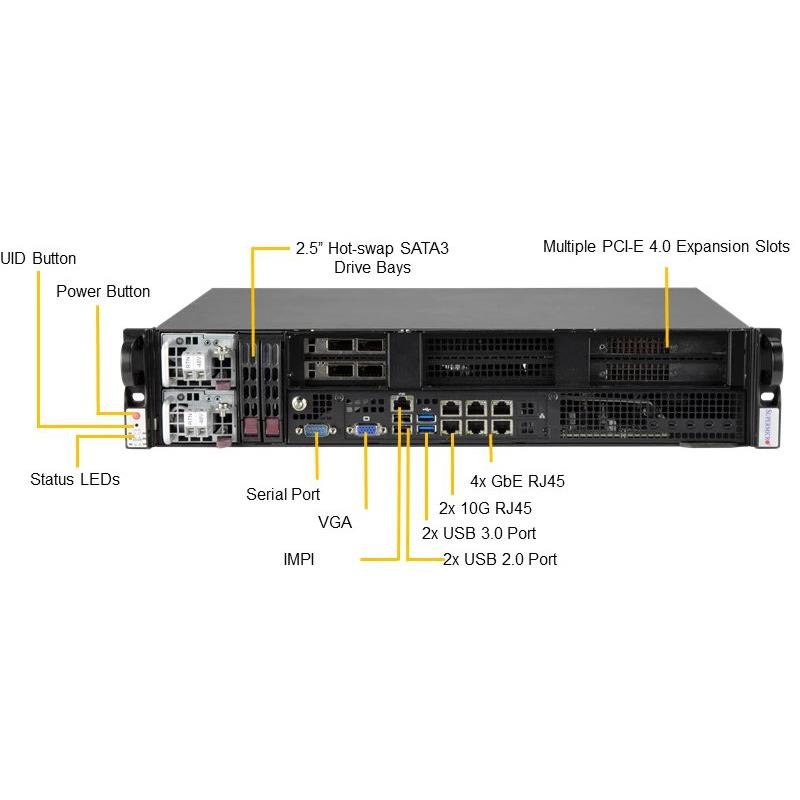

Input / Output

USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 front)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)

Management

Software
  • SUM
  • SSM
  • Redfish API
  • IPMI 2.0
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory

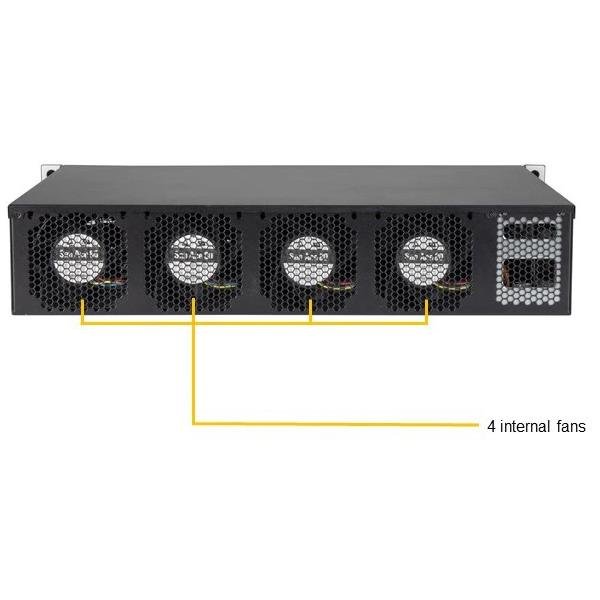

FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI
  • Monitoring for CPU and chassis environment
Brand

Supermicro

Form Factor

1U

Products Status

New

Product SKUs

SYS-210P-FRDN6T
