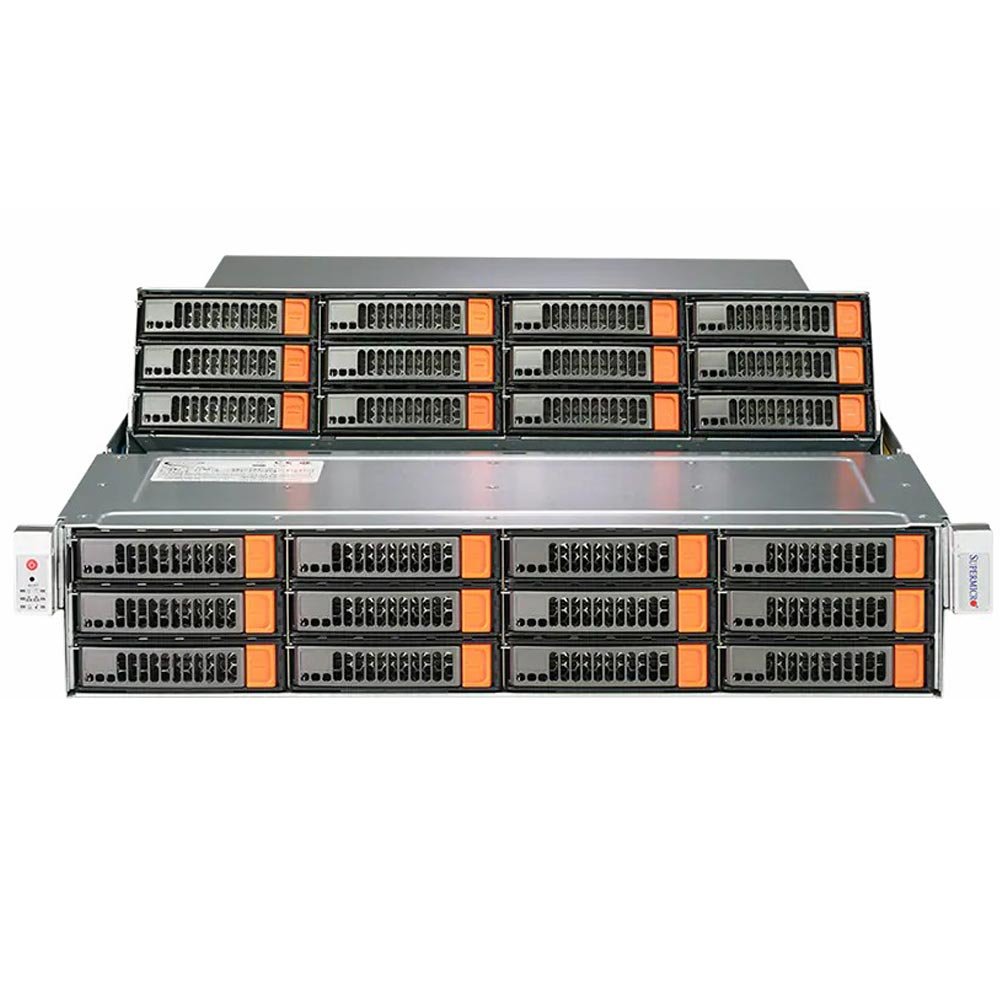

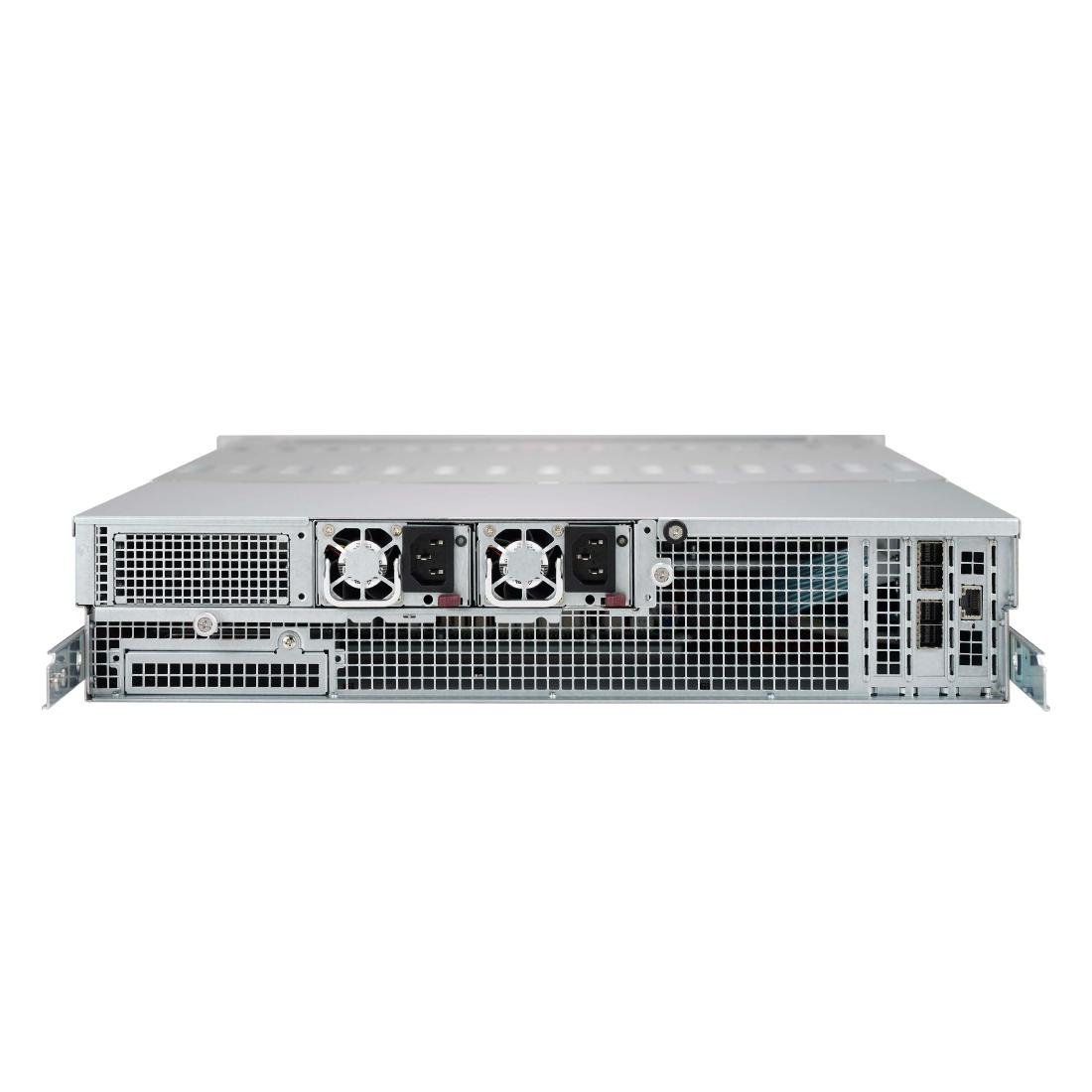

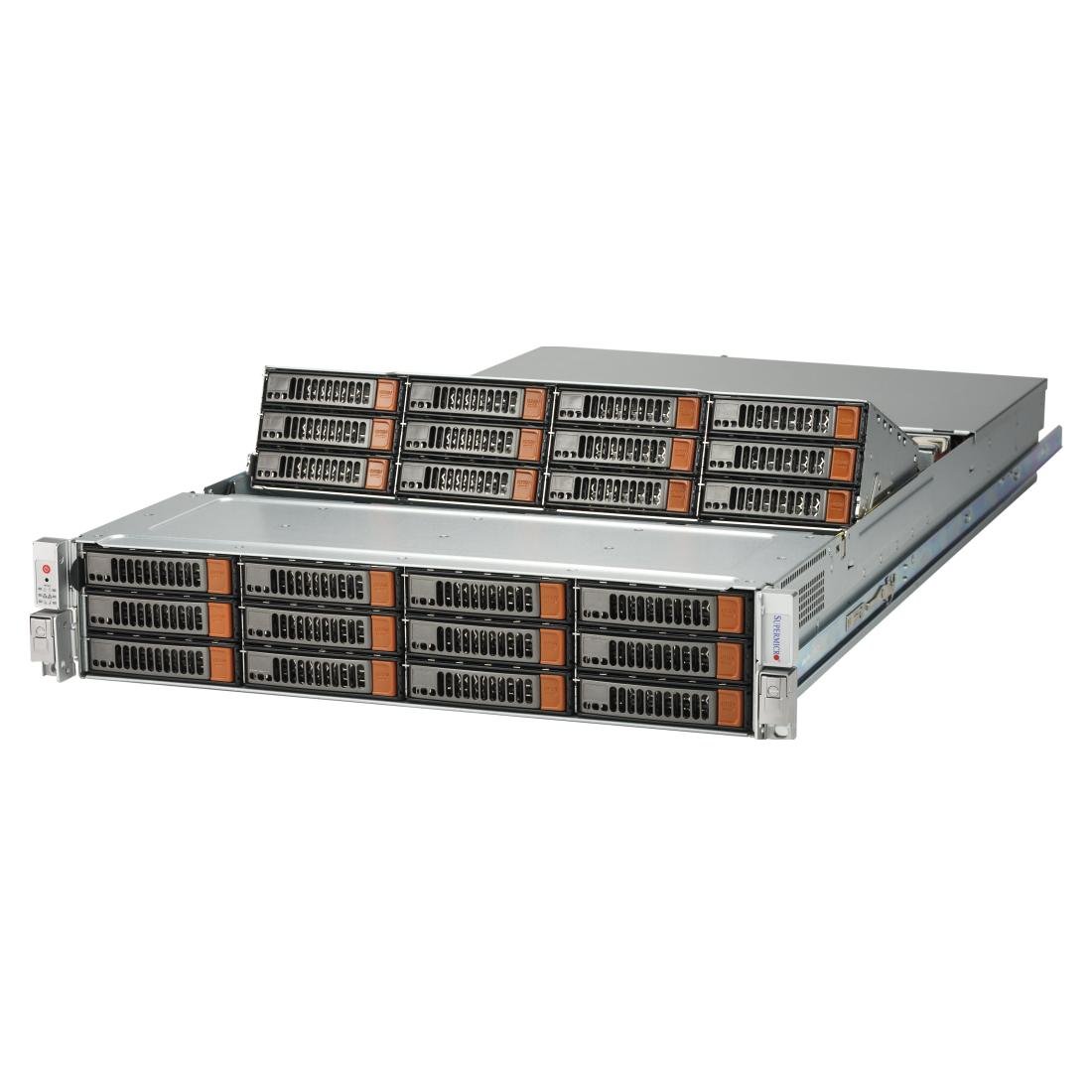

Supermicro SSG-6029P-E1CR24H

The Supermicro SSG-6029P-E1CR24H is a high-performance 2U rackmount storage server designed for enterprise data centers requiring massive storage capacity and exceptional reliability. This powerhouse features dual Intel Xeon Scalable processor support, accommodating up to 24 hot-swappable 2.5″ drive bays for maximum storage density. Key highlights include redundant 920W platinum-level power supplies for 94% efficiency, comprehensive IPMI management capabilities, and flexible networking options with multiple PCIe expansion slots. The server excels in virtualization, cloud computing, and big data applications, offering enterprise-grade ECC memory support up to 2TB and advanced thermal management. Its tool-less chassis design ensures rapid deployment and maintenance, while the compact 2U form factor maximizes rack space utilization. Ideal for organizations demanding scalable storage infrastructure with minimal downtime, this server delivers exceptional price-to-performance ratio for mission-critical workloads requiring both computational power and extensive storage capacity.

Quote1 Piece(MOQ)

Premium Client Discounts Available

Product SKUs

SSG-6029P-E1CR24H
  • SuperStorage 6029P-E1CR24H (Black)

Motherboard


Super X11DSC+

Processor

CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-165W
Cores
  • Up to 28 Cores
Note  BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory

Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note  2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset
  • Intel® C621 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3108; HW RAID
  • RAID 0, 1, 5, 6, 10, 50, 60
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output

Serial ATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 Type A
Video
  • 1 VGA D-Sub connector port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS

BIOS Type
  • AMI UEFI

Management

Software
  • Intel® Node Manager
  • IPMI 2.0
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watchdog

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
