Product SKUs

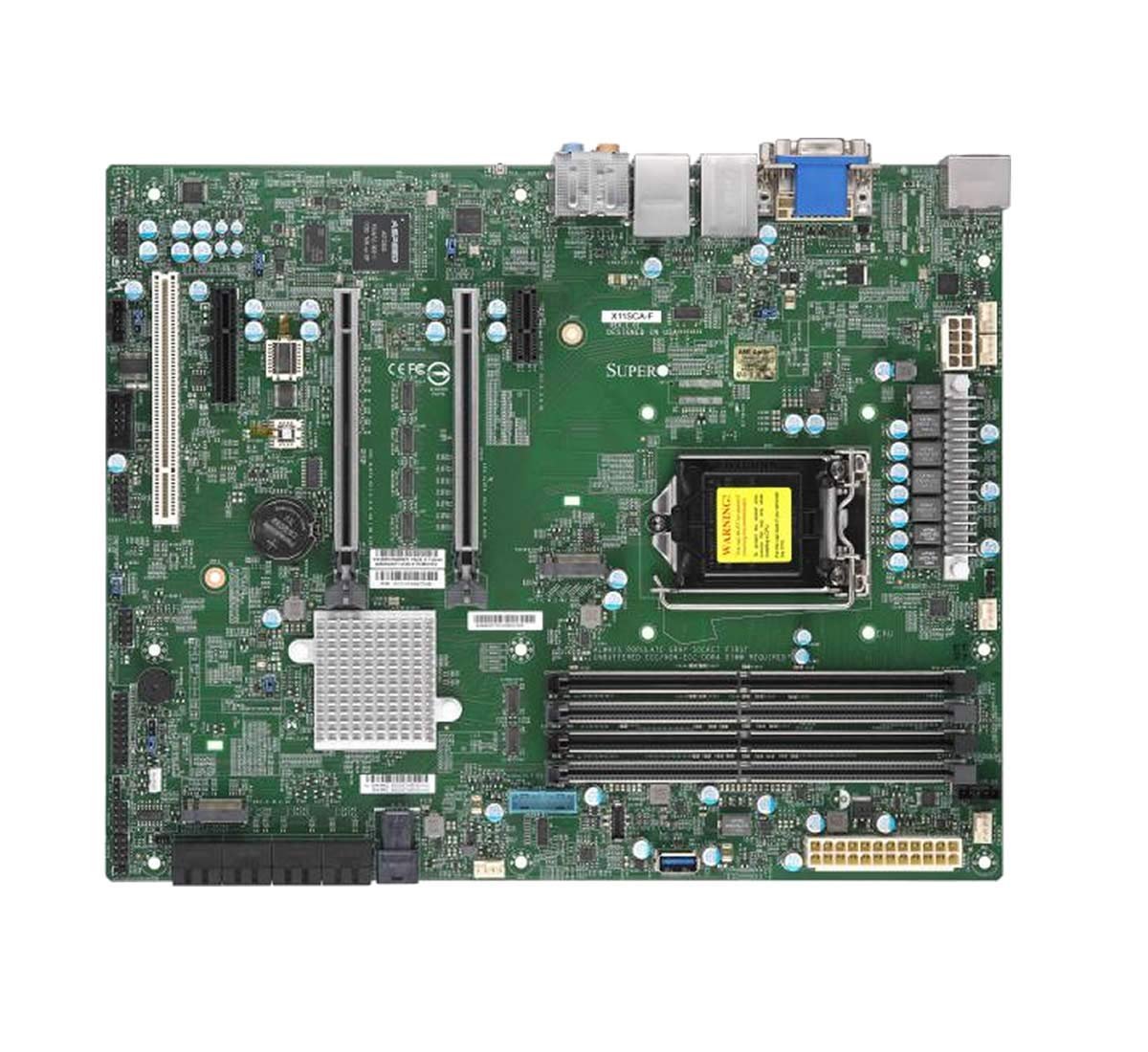

- MBD-X11SCA-F
Physical Stats
- Form Factor
ATX
- Dimension
12″ x 9.6″ (30.48cm x 24.38cm)
Processor
- CPU
Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, 8th/9th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s - Memory Type
2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
- DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
- Memory Voltage
1.2V
On-Board Devices
- Chipset
Intel C246
- SATA
Intel C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Audio
ALC 888S HD Audio
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT, Shared with IPMI
Input / Output
- LAN
2 1GbE LAN ports
- USB
2 USB 2.0 port(s) (2 via header)
4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A) - Video Output
1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI – D port(s)
- Serial Port
1 COM Port(s) (1 header)
- DOM
1 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x4,
1 PCIe 3.0 x1,
2 PCIex16 slots are running at NA/16, or 8/8
1 – 5V PCI 32bit - M.2
M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2242/2260/2280/22110
Key: M-Key
System BIOS
- BIOS Type
128MB UEFI
Management
- System Management Software
SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, Keyboard Wakeup from Soft-Off
