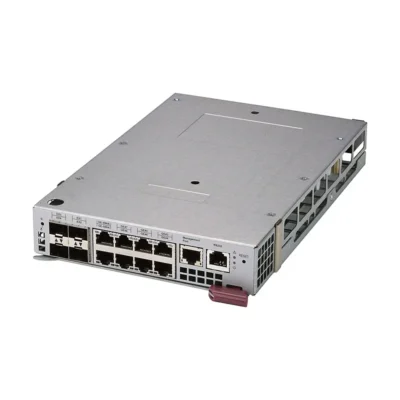

SUPERMICRO MicroBlade Switch Module (MBM-GEM-004)

The SUPERMICRO MicroBlade Switch Module (MBM-GEM-004) is a high-performance 10GbE Ethernet switch designed for MicroBlade server enclosures. This compact module delivers enterprise-grade networking with 16 internal 10GbE ports for blade connectivity and 4 external 10GbE SFP+ uplink ports for data center integration. Key features include non-blocking architecture ensuring full bandwidth utilization, hot-swappable design for zero-downtime maintenance, and advanced Layer 2/3 switching capabilities with VLAN support. The module offers exceptional power efficiency, centralized management through IPMI, and seamless integration with Supermicro’s MicroBlade ecosystem. Its space-saving design reduces cabling complexity while providing carrier-grade reliability, making it ideal for high-density computing environments requiring robust, scalable networking infrastructure with minimal footprint and operational overhead.

Quote1 Piece(MOQ)

Brand	Supermicro
Products Status	New
Enclosure Type	Plug-in module
Ports	8 x 10/100/1000 (uplink) + 4 x 10 Gigabit SFP+ (uplink)
Performance	Switching capacity: 176 Gbps \| Downlink bandwidth: 1 Gbps

Description
Additional information

General Specifications	Broadcom BCM56151 1GbE Switch 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks 40x 1Gbps downlinks 1 Console port
Switching Capacity	176Gbps
Physical Layer Features	Jumbo frames up to 9KB 10 gigabit optical Ethernet SFP+/copper 1 gigabit RJ45 Ethernet
Layer 2 Features	4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features	Storm control Flow control Port mirroring Uplink Failure Detection (UFD) MLAG
Security Features	Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists SSH, SSL Encryption Protected Ports
System Management	Industry Standard CLI Context Sensitive Help Command Completion SNMP v1/v2/v3 SSH Syslog DHCP (Client) Web-based management interface NTP RMON Blade Network Manager (BNM)*
Multicast	IGMP Snooping
Automation	Zero Touch Provisioning
Weight	3.1lbs/1.4kg
Dimensions (W x D x H)	267mm x 159mm x 36mm (10.5″ x 6.25″ x 1.4″)

Brand	Supermicro
Products Status	New
Enclosure Type	Plug-in module
Ports	8 x 10/100/1000 (uplink) + 4 x 10 Gigabit SFP+ (uplink)
Performance	Switching capacity: 176 Gbps \| Downlink bandwidth: 1 Gbps
Dimensions (WxDxH)	10.5 in x 6.3 in x 1.4 in
