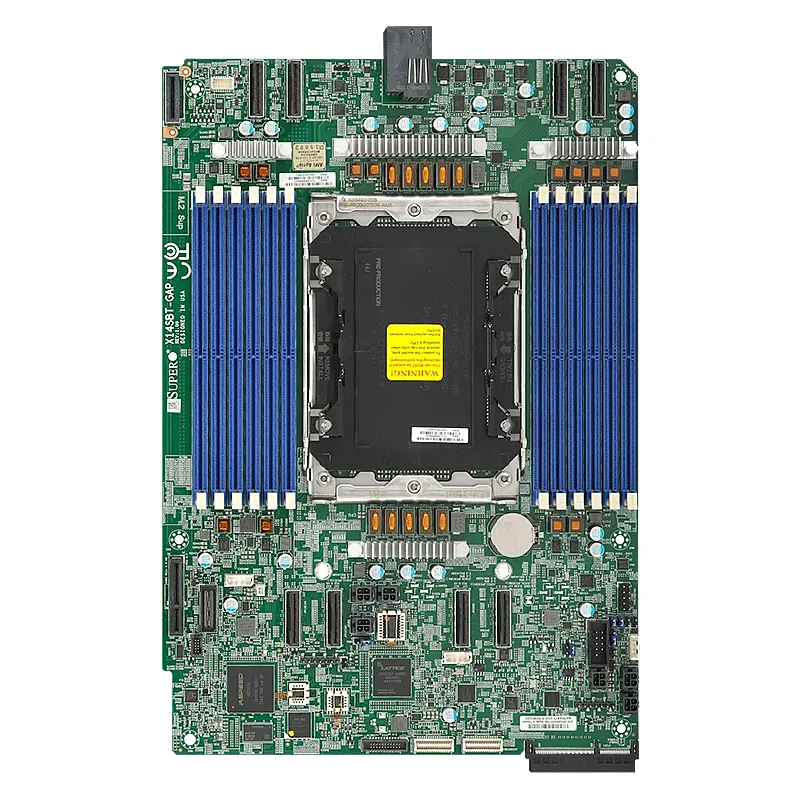

Supermicro MBD-X14SBT-GAP

* NOTE: Image may not exactly match the product

Supermicro MBD-X14SBT-GAP

The Supermicro MBD-X14SBT-GAP is a high-performance server motherboard designed for demanding enterprise applications. Built on the Intel C741 chipset, it supports 13th generation Intel Xeon processors and delivers exceptional computing power with dual-channel DDR5 memory support up to 128GB. Key features include multiple PCIe 5.0 slots for maximum expansion flexibility, integrated IPMI 2.0 for remote management, and dual 10GbE networking ports for high-speed connectivity. The board offers enterprise-grade reliability with ECC memory support, comprehensive thermal management, and Supermicro’s proven build quality. Its compact form factor makes it ideal for space-constrained environments while maintaining full server capabilities, making it perfect for edge computing, small business servers, and specialized workloads requiring professional-grade performance and reliability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorProprietary
ChipsetSystem on Chip
Products StatusNew

Product SKUs

  • MBD-X14SBT-GAP

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    8.53″ x 12.42″ (21.67cm x 31.55cm)

Processor

  • CPU
    Intel Xeon 6900-series processors with P-cores
    Single Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
  • Core
    Up to 128 (P) cores

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 3TB ECC Registered MRDIMM, DDR5-8800MT/s; Up to 3TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    8800 MT/s ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
  • DIMM Sizes
    32GB, 64GB, 128GB, 256GB
    MRDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    RDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    AIOM for LAN

Input / Output

  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    8 PCIe 5.0 x8 MCIO connector,
    1 PCIe 5.0 x8 4C customized 124-pin slim cool edge connector, Support GrandTwin Front IO module,
    1 PCIe 5.0 x8 GENZ 2C connector, Support 2x M.2 (2280,22110) via proprietary M.2 adapter
  • M.2
    M.2 Interface: 2 PCIe 5.0 x8, RAID 0 & 1
    Form Factor: 2280/22110
    Key: M-Key
    M.2 support requires an optional M.2 adapter card

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
Brand

Supermicro
Application

Server
Form Factor

Proprietary
Chipset

System on Chip
Products Status

New
Socket

LGA-1700
BIOS Type

AMI 64MB AMI UEFI
Memory Capacity

12 DIMM slotsUp to 3TB ECC Registered MRDIMM, DDR5-6400MT/s, DDR5-8800MT/s; Up to 3TB 3DS ECC Registered RDIMM
Memory Type

8800 MT/s ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
Memory Voltage

1.1V
DIMM Sizes

128GB, 256GB, 256GBMRDIMM: 32GB, 256GBRDIMM: 32GB, 32GB, 48GB, 64GB, 96GB
CPU

CPU TDP supports Up to 500W TDP, Intel Xeon 6900-series processors with P-coresSingle Socket BR (LGA-7529) supported
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimension

8.53" x 12.42" (21.67cm x 31.55cm)
Network Controllers

AIOM for LAN
M.2

M.2 Interface: 2 PCIe 5.0 x8, RAID 0 & 1Form Factor: 2280/22110Key: M-Key
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 5.0 x8 4C customized 124-pin slim cool edge connector, 1 PCIe 5.0 x8 GENZ 2C connector, 22110) via proprietary M.2 adapter, 8 PCIe 5.0 x8 MCIO connector, Support 2x M.2 (2280, Support GrandTwin Front IO module
TPM

1 TPM Header
BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
Cores

Up to 128 (P) cores
Serial Port

1 COM Port(s) (1 header)
