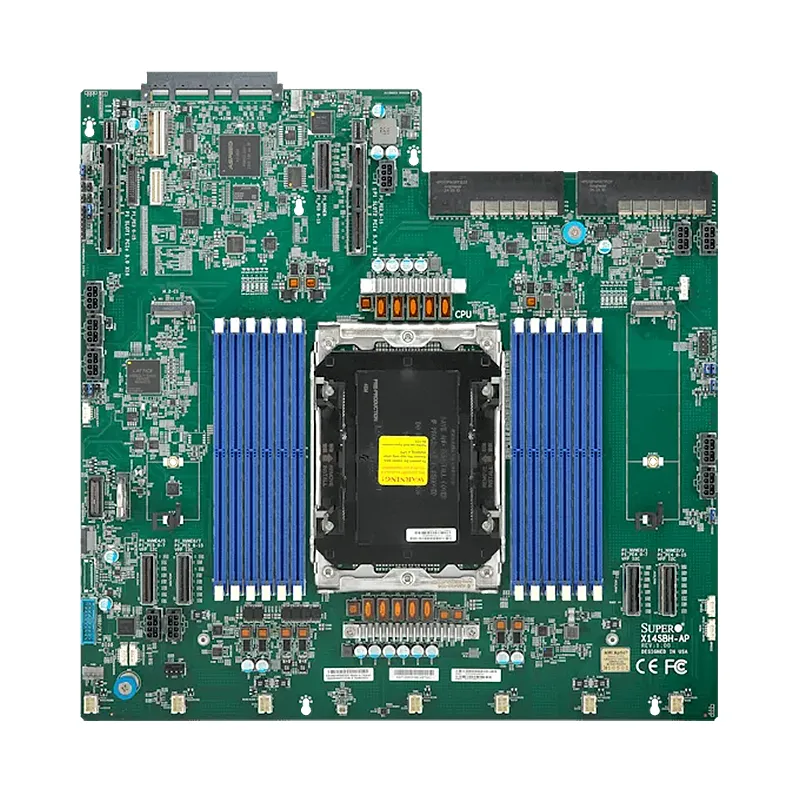

Supermicro MBD-X14SBH-AP

* NOTE: Image may not exactly match the product

Supermicro MBD-X14SBH-AP

The Supermicro MBD-X14SBH-AP is a high-performance server motherboard featuring the latest Intel Xeon Scalable processor socket (LGA 4677) with support for DDR5 memory technology. Key features include multiple PCIe 5.0 slots for maximum expansion capability, integrated IPMI 2.0 for remote management, dual 10GbE networking ports, and support for up to 2TB of DDR5 ECC memory across 8 DIMM slots. The board offers enterprise-grade reliability with redundant power options, comprehensive thermal management, and Supermicro’s proven build quality. Ideal for data centers, virtualization environments, and high-compute applications, this motherboard delivers exceptional performance per watt, future-proof connectivity, and scalable architecture that reduces total cost of ownership while maximizing operational efficiency.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM1 TPM Header1 TPM TPM 2.0 onboard
Network ControllersAIOM for LAN
M.2M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110/25110Key: M-Key

Product SKUs

  • MBD-X14SBH-AP

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    13″ x 12.89″ (33.02cm x 32.74cm)

Processor

  • CPU
    Intel Xeon 6900-series processors with P-cores
    Single Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
  • Core
    Up to 128 (P) cores

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 3TB ECC Registered MRDIMM, DDR5-8800MT/s; Up to 3TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    8800 MT/s ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
  • DIMM Sizes
    32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    MRDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    RDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    AIOM for LAN

Input / Output

  • LAN
    1 AIOM
  • USB
    3 USB 3.2 Gen1 port(s) (3 via header)
  • TPM
    1 TPM Header
    1 TPM TPM 2.0 onboard

Expansion Slots

  • PCIe
    1 PCIe 5.0 x16 AIOM,
    2 PCIe 5.0 x16 4C slots,
    5 PCIe 5.0 x8 MCIO connector
  • M.2
    M.2 Interface: 2 PCIe 5.0 x2
    Form Factor: 2280/22110/25110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
Brand

Supermicro
BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM

1 TPM Header1 TPM TPM 2.0 onboard
Network Controllers

AIOM for LAN
M.2

M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110/25110Key: M-Key
Chipset

System on Chip
DIMM Sizes

128GB, 256GB, 256GBMRDIMM: 32GB, 256GBRDIMM: 32GB, 32GB, 48GB, 64GB, 96GB
BIOS Type

AMI 64MB AMI UEFI
LAN

1 AIOM
Dimension

13" x 12.89" (33.02cm x 32.74cm)
PCIe

1 PCIe 5.0 x16 AIOM, 2 PCIe 5.0 x16 4C slots, 5 PCIe 5.0 x8 MCIO connector
USB

3 USB 3.2 Gen1 port(s) (3 via header)
Form Factor

Proprietary
Memory Type

8800 MT/s ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.1V
CPU

CPU TDP supports Up to 500W TDP, Intel Xeon 6900-series processors with P-coresSingle Socket BR (LGA-7529) supported
Memory Capacity

12 DIMM slotsUp to 3TB ECC Registered MRDIMM, DDR5-6400MT/s, DDR5-8800MT/s; Up to 3TB 3DS ECC Registered RDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 128 (P) cores
