Supermicro MBD-X14SBH

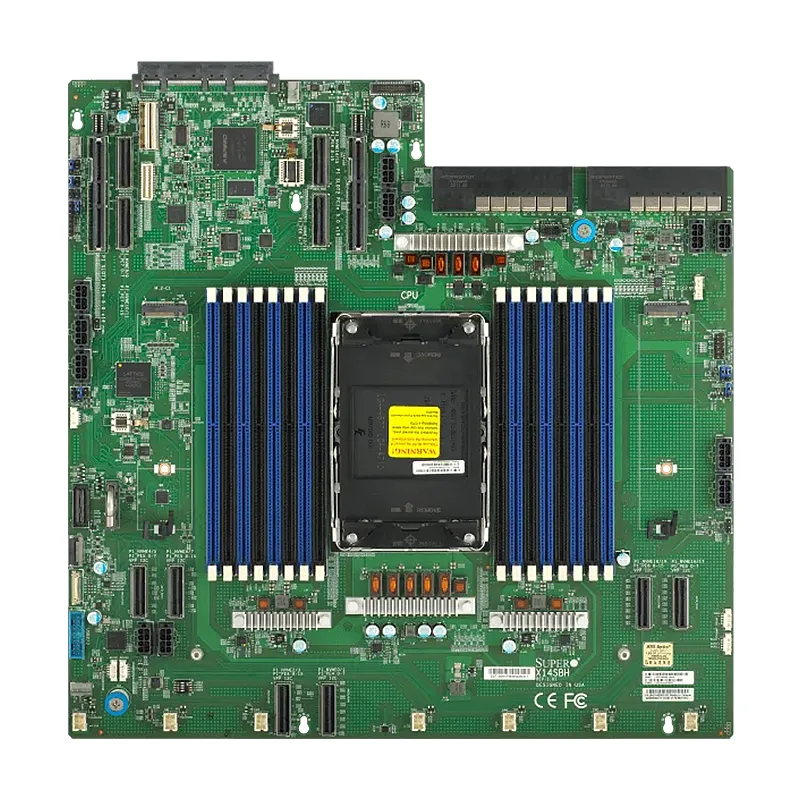

* NOTE: Image may not exactly match the product

Supermicro MBD-X14SBH

The Supermicro MBD-X14SBH is a high-performance server motherboard featuring the latest Intel Xeon Scalable processor socket, delivering exceptional computational power for enterprise workloads. Key features include support for high-speed DDR5 memory, multiple PCIe 5.0 slots for advanced expansion capabilities, and integrated dual 10GbE networking for superior connectivity. The board offers robust I/O options with multiple SATA and NVMe connections, enabling flexible storage configurations. Built with Supermicro’s renowned reliability and energy efficiency, it includes advanced thermal management and remote management capabilities through IPMI. Ideal for data centers, cloud computing, and virtualization environments, this motherboard provides scalable performance, reduced total cost of ownership, and future-proof technology integration in a compact form factor.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM1 TPM Header1 TPM TPM 2.0 onboard
Network ControllersAIOM for LAN
M.2M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110/25110Key: M-Key

Product SKUs

  • MBD-X14SBH

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    13″ x 12.89″ (33.02cm x 32.74cm)

Processor

  • CPU
    Intel Xeon 6700-series processors with E-cores
    Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
  • Core
    Up to 144 (E) cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
  • DIMM Sizes
    32GB, 64GB, 96GB, 128GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    AIOM for LAN

Input / Output

  • LAN
    1 AIOM
  • USB
    3 USB 3.2 Gen1 port(s) (3 via header)
  • TPM
    1 TPM Header
    1 TPM TPM 2.0 onboard

Expansion Slots

  • PCIe
    1 PCIe 5.0 x16 AIOM,
    2 PCIe 5.0 x16 4C slots,
    10 PCIe 5.0 x8 MCIO connector
  • M.2
    M.2 Interface: 2 PCIe 5.0 x2
    Form Factor: 2280/22110/25110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
Brand

Supermicro
BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM

1 TPM Header1 TPM TPM 2.0 onboard
Network Controllers

AIOM for LAN
M.2

M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110/25110Key: M-Key
Chipset

System on Chip
DIMM Sizes

128GB, 32GB, 64GB, 96GB
BIOS Type

AMI 64MB AMI UEFI
LAN

1 AIOM
Dimension

13" x 12.89" (33.02cm x 32.74cm)
PCIe

1 PCIe 5.0 x16 AIOM, 10 PCIe 5.0 x8 MCIO connector, 2 PCIe 5.0 x16 4C slots
USB

2 USB 3.2 Gen1 port(s) (2 via header)
Form Factor

Proprietary
Memory Type

6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.1V
CPU

CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresSingle Socket E2 (LGA-4710) supported
Memory Capacity

16 DIMM slotsUp to 2TB ECC Registered RDIMM, DDR5-6400MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 144 (E) cores
