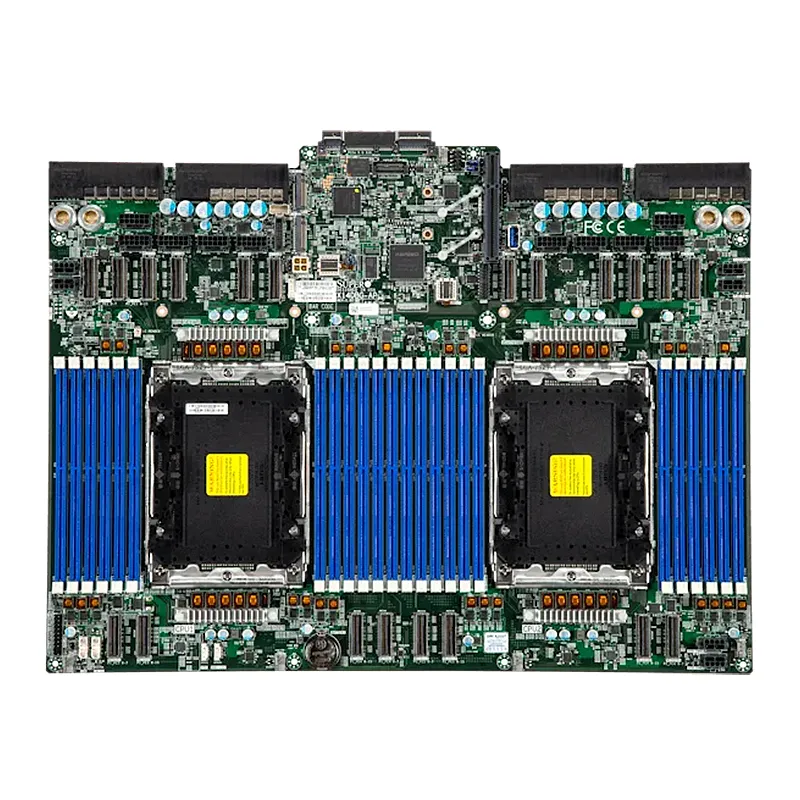

Supermicro MBD-X14DBG-AP

The Supermicro MBD-X14DBG-AP is a high-performance dual-socket server motherboard designed for enterprise and data center applications. Built on the Intel C741 chipset, it supports 5th generation Intel Xeon Scalable processors with up to 64 cores per CPU for exceptional computational power.

**Key Features:**
– Dual LGA 4677 sockets supporting Intel Xeon Scalable processors
– 32 DIMM slots supporting up to 8TB DDR5-5600 memory with ECC
– 8x PCIe 5.0 x16 slots and 2x PCIe 4.0 x8 slots for maximum expansion
– Dual 25GbE and dual 1GbE network ports for high-speed connectivity
– 16x SATA3 ports and M.2 slots for flexible storage options
– IPMI 2.0 with dedicated management port for remote administration

**Benefits:**
– Delivers exceptional performance for virtualization, AI/ML workloads, and database applications
– Massive memory capacity enables handling of large datasets and memory-intensive applications
– Extensive PCIe slots accommodate multiple GPUs, accelerators, and high-speed storage cards
– Enterprise-grade reliability with ECC memory support and comprehensive management features

**Unique Selling Points:**
– Latest DDR5 memory technology for superior bandwidth and efficiency
– PCIe 5.0 support for next-generation accelerators and storage devices
– Optimized thermal design for sustained high-performance operation
– Supermicro’s proven enterprise reliability and comprehensive validation testing

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
M.2M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key
ChipsetSystem on Chip
DIMM Sizes128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB

Product SKUs

  • MBD-X14DBG-AP

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    17″ x 14.95″ (43.18cm x 37.97cm)

Processor

  • CPU
    Intel Xeon 6900 series Processors
    Dual Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
  • Core
    Up to 128 (P) cores

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 6TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    RDIMM: 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • Network Controllers

Input / Output

  • TPM
    1 TPM TPM 2.0 onboard

Expansion Slots

  • PCIe
    1 PCIe 5.0 x16 AIOM,
    20 PCIe 5.0 x8 PCIe5.0 MCIO connector,
    1 PCIe 5.0 x8 Riser Slot
  • M.2
    M.2 Interface: 2 PCIe 5.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
Brand

Supermicro

BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9

M.2

M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key

Chipset

System on Chip

DIMM Sizes

128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB

BIOS Type

AMI 64MB AMI UEFI

Dimension

17" x 14.95" (43.18cm x 37.97cm)

PCIe

1 PCIe 5.0 x16 AIOM, 1 PCIe 5.0 x8 Riser Slot, 20 PCIe 5.0 x8 PCIe5.0 MCIO connector

Form Factor

Proprietary

Memory Type

ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)

Application

Server

Memory Voltage

1.1V

CPU

CPU TDP supports Up to 500W TDP, Intel Xeon 6900 series ProcessorsDual Socket BR (LGA-7529) supported

Memory Capacity

24 DIMM slotsUp to 6TB 3DS ECC Registered RDIMM, DDR5-6400MT/s

Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)

Core

Up to 128 (P) cores
