Product SKUs

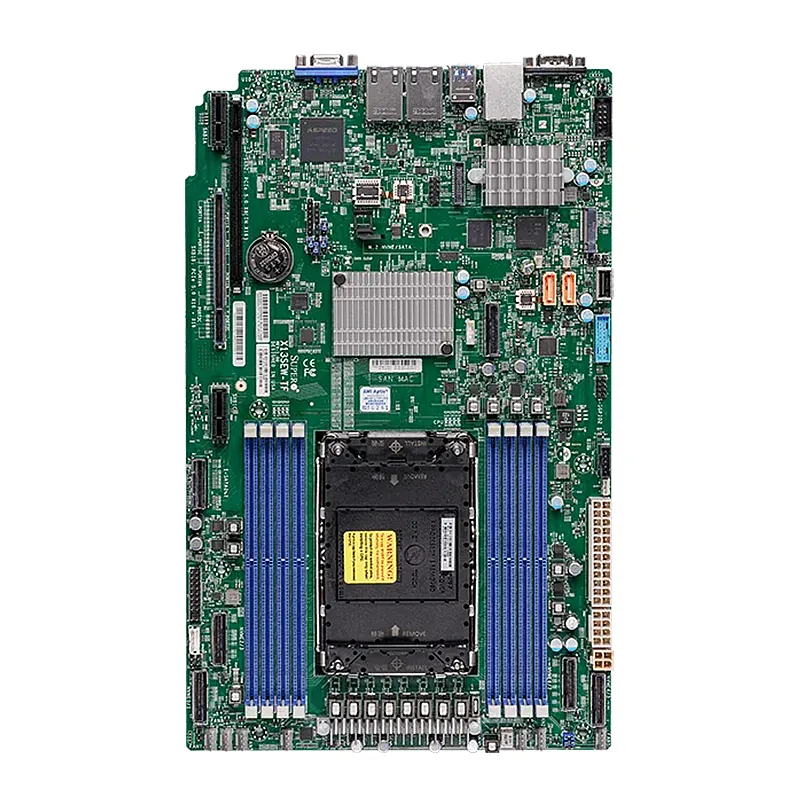

- MBD-X13SEW-TF
Physical Stats
- Form Factor
Proprietary WIO
- Dimension
8″ x 13″ (20.32cm x 33.02cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
*BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors - Core
Up to 64 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
**24GB & 48GB DIMM only support 1 DPC.
*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU. - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 Aspeed AST2600 BMC port(s)
- Network Controllers
Dual LAN with 10GBase-T with Intel X550
Input / Output
- SATA
10 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 10 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port - USB
5 USB 2.0 port(s) (2 via header; 2 rear; 1 Type A)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- DOM
2 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 5.0 x8 Right Riser (in x16) slot,
1 PCIe 5.0 x32 Left Riser Slot,
5 PCIe 5.0 x8 PCIe5.0 MCIO connector - M.2
M.2 Interface: 1 PCIe 3.0 x2
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8 or above
