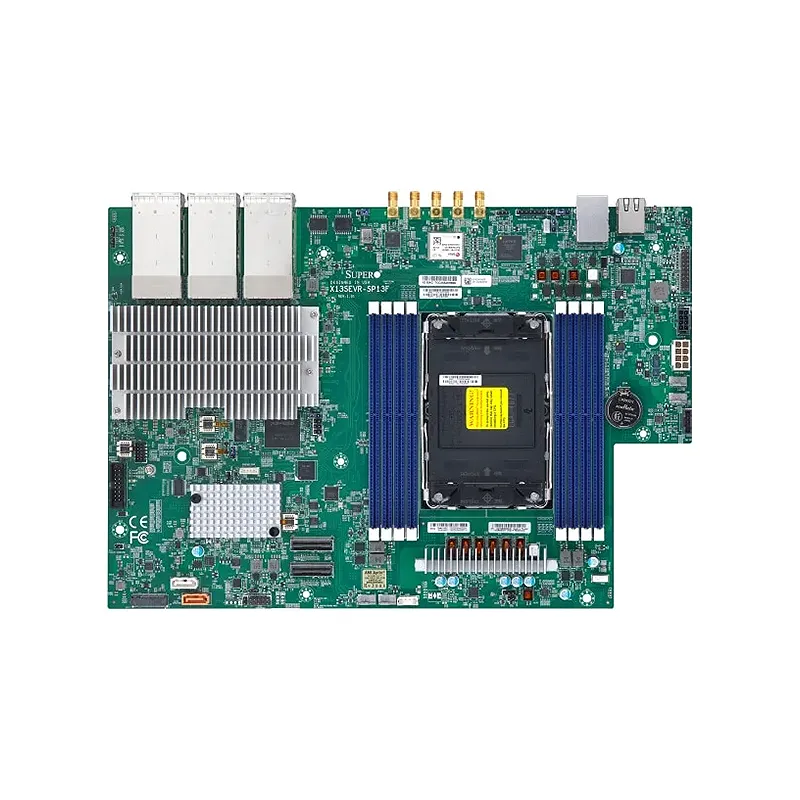

* NOTE: Image may not exactly match the product

Supermicro MBD-X13SEVR-SP13F

The Supermicro MBD-X13SEVR-SP13F is a high-performance server motherboard designed for enterprise virtualization and cloud computing applications. Built on the Intel C741 chipset, it supports 4th Gen Intel Xeon Scalable processors with up to 40 cores, delivering exceptional computational power for demanding workloads.

**Key Features:**
– Supports up to 2TB DDR5-4800 ECC memory across 8 DIMM slots
– Dual 10GbE LAN ports with Intel X710 controllers for high-speed networking
– PCIe 5.0 and 4.0 expansion slots for maximum I/O flexibility
– IPMI 2.0 with dedicated management LAN for remote administration
– Multiple storage options including M.2 NVMe and SATA connectors
– Redundant power supply support for enhanced reliability

**Benefits:**
– Optimized for virtualization platforms like VMware vSphere and Microsoft Hyper-V
– Energy-efficient design reduces operational costs
– Tool-free chassis compatibility for easy deployment and maintenance
– Enterprise-grade reliability with comprehensive hardware monitoring

**Unique Selling Points:**
– Purpose-built for single-socket virtualization environments
– Compact form factor maximizes rack density while maintaining performance
– Supermicro’s proven track record in data center solutions
– Cost-effective alternative to dual-socket configurations for mid-range virtualization needs

Ideal for organizations seeking robust virtualization infrastructure without the complexity and cost of multi-socket systems.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.5SMBIOS 3.6UEFI 2.9Plug and Play (PnP)PCI FW 3.3
TPM1 TPM Header & Chip both
Network ControllersSingle LAN with Intel i210 Gigabit Ethernet Controller12 LAN with Intel Ethernet Controller E810-CAM1
M.2M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280Key: M-Key

Product SKUs

  • MBD-X13SEVR-SP13F

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    13.94″ x 9.6″ (35.41cm x 24.38cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 225W TDP
  • Core
    Up to 32 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    Intel C741 controller for 2 SATA3 ports; RAID 0,1
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    Single LAN with Intel i210 Gigabit Ethernet Controller
    12 LAN with Intel Ethernet Controller E810-CAM1

Input / Output

  • SATA
    2 SATA3 port(s)
  • USB
    2 USB 3.2 Gen1 port(s) (2 type A)
  • Video Output
    1 Header port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header & Chip both
  • Others
    1 Dry contact
    5 SMA 1PPS & GNSS with 1 for GNSS input

Expansion Slots

  • PCIe
    2 PCIe 5.0 x8 MCIO connector, For RSC-S-68G5 to support FHHL PCIe Card
  • M.2
    M.2 Interface: 1 PCIe 4.0 x4
    Form Factor: 2280
    Key: M-Key

System BIOS

  • BIOS Type
    32MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.6
    UEFI 2.9
    Plug and Play (PnP)
    PCI FW 3.3

Management

  • System Management Software
    IPMI 2.0
  • Power Configurations
    ACPI Power Management, Power-on mode control for AC power loss recovery
Brand

Supermicro

BIOS Features

ACPI 6.5SMBIOS 3.6UEFI 2.9Plug and Play (PnP)PCI FW 3.3

TPM

1 TPM Header & Chip both

Network Controllers

Single LAN with Intel i210 Gigabit Ethernet Controller12 LAN with Intel Ethernet Controller E810-CAM1

M.2

M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280Key: M-Key

Chipset

Intel C741

DIMM Sizes

128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB

BIOS Type

32MB AMI UEFI

Video Output

1 Header port(s)

Dimension

13.94" x 9.6" (35.41cm x 24.38cm)

PCIe

2 PCIe 5.0 x8 MCIO connector, For RSC-S-68G5 to support FHHL PCIe Card

USB

2 USB 3.2 Gen1 port(s) (2 type A)

Form Factor

Proprietary

Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)

Application

Server

IPMI

ASPEED AST2600 BMC

Others

1 Dry contact5 SMA 1PPS & GNSS with 1 for GNSS input

Memory Voltage

1.1V

CPU

5th Gen Intel XeonSingle Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 225W TDP

Serial Port

1 COM Port(s) (1 header)

SATA

2 SATA3 port(s)

Memory Capacity

8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s

Error Detection

Corrects single-bit errors

Core

Up to 32 cores
