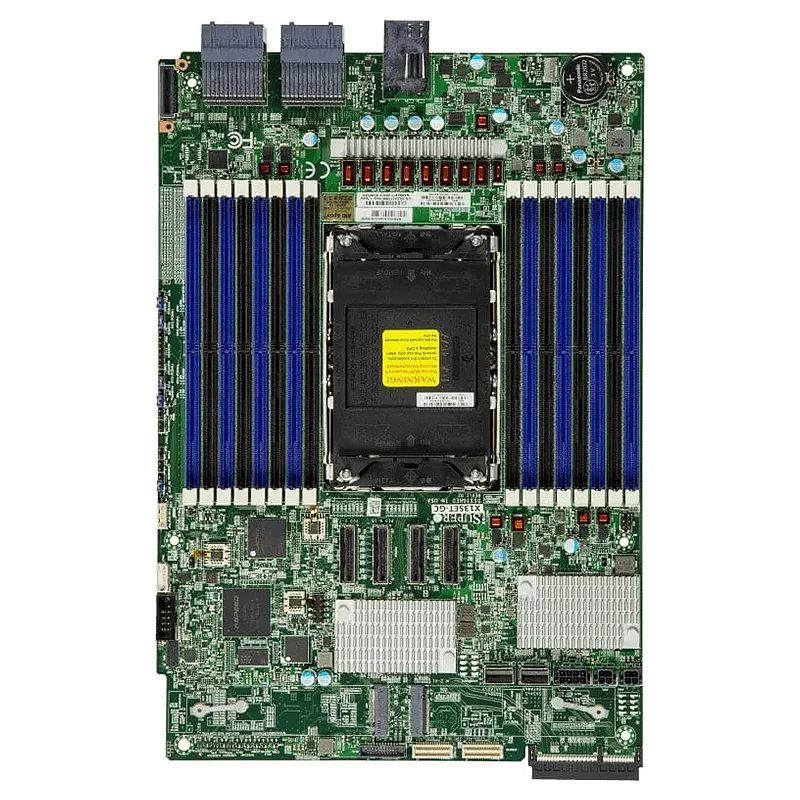

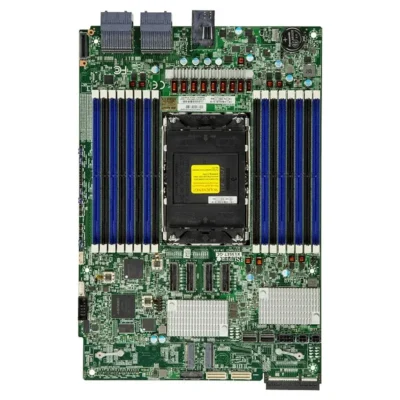

Supermicro MBD-X13SET-GC

* NOTE: Image may not exactly match the product

Supermicro MBD-X13SET-GC

The Supermicro MBD-X13SET-GC is a high-performance server motherboard featuring the Intel C741 chipset designed for 4th Gen Intel Xeon Scalable processors. This E-ATX board delivers enterprise-grade reliability with dual 10GbE ports, eight DDR5 DIMM slots supporting up to 2TB of memory, and comprehensive expansion capabilities including multiple PCIe 5.0 slots. Key advantages include advanced thermal management, IPMI 2.0 remote management, redundant power supply support, and Supermicro’s proven server-grade build quality. The board excels in data center applications, virtualization environments, and high-performance computing workloads where maximum memory capacity, network throughput, and system reliability are critical. Its unique value proposition combines cutting-edge DDR5 and PCIe 5.0 technologies with enterprise management features at a competitive price point for demanding server applications.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.4SMBIOS 3.5UEFI 2.8 or above
TPM1 TPM Header
Network ControllersAIOM for LAN
M.2M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280Key: M-Key

Product SKUs

  • MBD-X13SET-GC

Physical Stats

  • Form Factor
    Proprietary GrandTwin
  • Dimension
    8.53″ x 12.42″ (21.67cm x 31.55cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    *BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
    **24GB & 48GB DIMM only support 1 DPC.
    *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C741
  • SAS
    Broadcom 3808 SAS3 controller for 6 SAS3 (12 Gbps) ports
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    AIOM for LAN

Input / Output

  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
  • M.2
    M.2 Interface: 2 SATA/PCIe 3.0 x4
    Form Factor: 2280
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5
    UEFI 2.8 or above
Brand

Supermicro
BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8 or above
TPM

1 TPM Header
Network Controllers

AIOM for LAN
M.2

M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280Key: M-Key
Chipset

Intel C741
DIMM Sizes

128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
BIOS Type

AMI UEFI
Dimension

8.53" x 12.42" (21.67cm x 31.55cm)
Form Factor

Proprietary GrandTwin
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.1V
CPU

5th Gen Intel XeonSingle Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SAS

Broadcom 3808 SAS3 controller for 6 SAS3 (12 Gbps) ports
Serial Port

1 COM Port(s) (1 header)
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s**24GB & 48GB DIMM only support 1 DPC.*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Error Detection

Corrects single-bit errors
Core

Up to 64 cores
