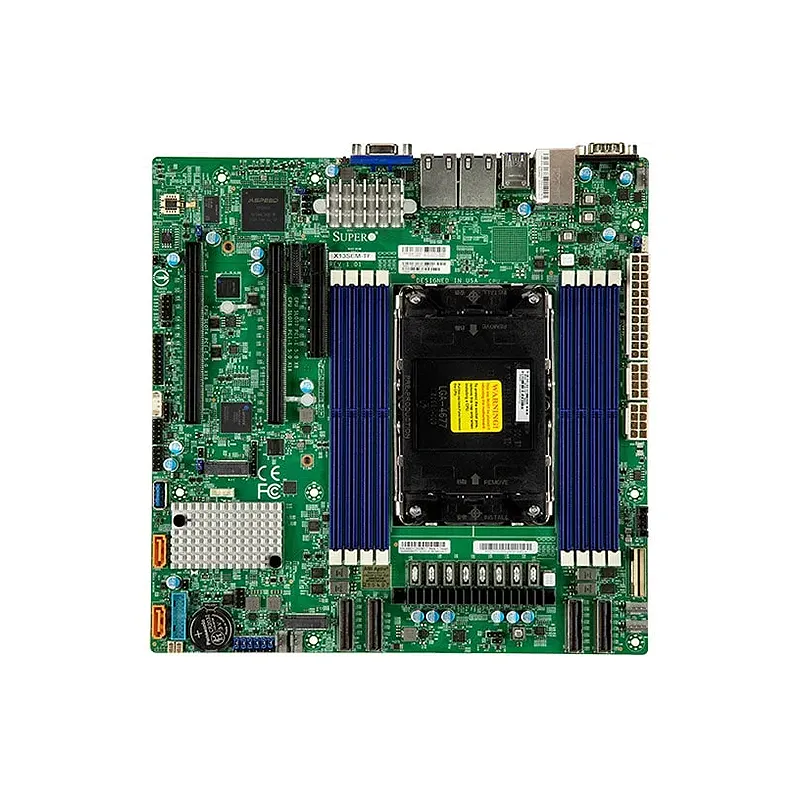

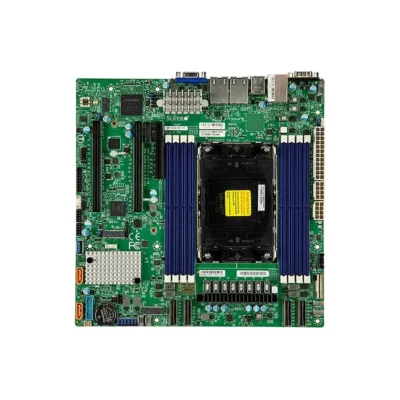

Supermicro MBD-X13SEM-TF

The Supermicro MBD-X13SEM-TF is a high-performance micro-ATX server motherboard designed for edge computing and compact server applications. Built on the Intel C741 chipset, it supports 13th and 12th generation Intel Core processors, delivering exceptional processing power in a space-efficient form factor. Key features include dual 10GbE networking ports for high-speed connectivity, multiple PCIe slots for expansion flexibility, and comprehensive I/O options including USB 3.2 and SATA connections. The board offers enterprise-grade reliability with ECC memory support, advanced thermal management, and Supermicro’s renowned build quality. Its compact design makes it ideal for edge deployments, small business servers, and applications requiring powerful computing in constrained spaces, while maintaining the scalability and performance standards expected from Supermicro’s server-grade hardware.

Quote1 Piece(MOQ)

Premium Client Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.4SMBIOS 3.5UEFI 2.8 or above
Graphics1 ASPEED AST2600 BMC port(s)
TPM1 TPM Header
Network ControllersDual LAN with 10GBase-T with Intel X550

Product SKUs

  • MBD-X13SEM-TF

Physical Stats

  • Form Factor
    microATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    *BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
    **24GB & 48GB DIMM only support 1 DPC.
    *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    Intel C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 Aspeed AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X550

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
    1 RJ45 Dedicated IPMI LAN port
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 5.0 x16,
    1 PCIe 5.0 x8,
    4 PCIe 5.0 x8 MCIO connector
  • M.2
    M.2 Interface: 2 PCIe 4.0 x2
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5
    UEFI 2.8 or above
Brand

Supermicro
BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8 or above
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X550
M.2

M.2 Interface: 2 PCIe 4.0 x2Form Factor: 2280/22110Key: M-Key
Chipset

Intel C741
DIMM Sizes

128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
BIOS Type

AMI UEFI
LAN

2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output

1 VGA D-Sub Connector port(s)
DOM

DOM
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 5.0 x8, 2 PCIe 5.0 x16, 4 PCIe 5.0 x8 MCIO connector
USB

6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor

Micro-ATX
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.1V
CPU

5th Gen Intel XeonSingle Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware

Trusted Platform Module (TPM) 2.0
Serial Port

1 COM Port(s) (1 rear)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s**24GB & 48GB DIMM only support 1 DPC.*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Error Detection

Corrects single-bit errors
Core

Up to 64 cores
