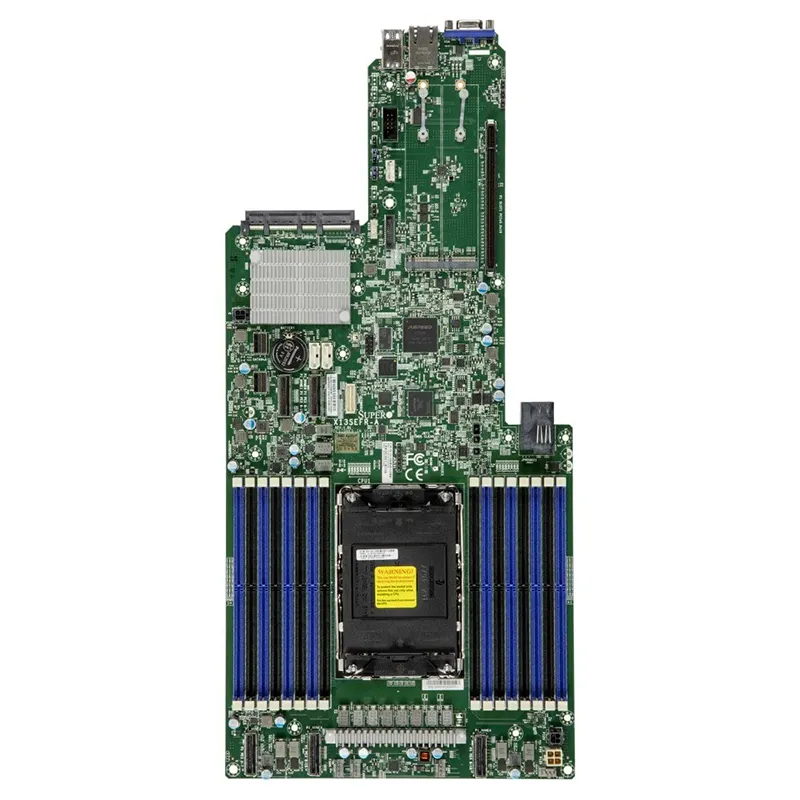

Supermicro MBD-X13SEFR-A

* NOTE: Image may not exactly match the product

Supermicro MBD-X13SEFR-A

The Supermicro MBD-X13SEFR-A is a high-performance server motherboard featuring the Intel C741 chipset and LGA1700 socket, supporting 13th and 12th generation Intel Xeon processors. Key features include dual 10GbE networking, up to 128GB DDR5 ECC memory support across four DIMM slots, and comprehensive I/O connectivity with multiple PCIe 5.0/4.0 slots. The board offers enterprise-grade reliability with IPMI 2.0 remote management, redundant power supply support, and advanced thermal monitoring. Its compact microATX form factor makes it ideal for space-constrained environments while delivering exceptional performance for edge computing, small business servers, and workstation applications. The motherboard’s energy-efficient design, robust security features, and Supermicro’s proven reliability make it a cost-effective solution for organizations requiring enterprise-class computing power in a smaller footprint.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.4SMBIOS 3.5UEFI 2.8 or above
TPM1 TPM Header
Network ControllersAIOM for LAN
M.2M.2 Interface: 2 SATA/PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key

Product SKUs

  • MBD-X13SEFR-A

Physical Stats

  • Form Factor
    Proprietary FatTwin
  • Dimension
    8.44″ x 18″ (21.44cm x 45.72cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    *BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
    **24GB & 48GB DIMM only support 1 DPC.
    *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    Intel C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    AIOM for LAN

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    1 RJ45 Dedicated IPMI LAN port
    AIOM
  • USB
    2 USB 3.2 Gen1 port(s) (2 rear)
  • Video Output
    VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 5.0 x16 Right Riser Slot,
    1 PCIe 5.0 x16 AIOM
  • M.2
    M.2 Interface: 2 SATA/PCIe 3.0 x2
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5
    UEFI 2.8 or above
Brand

Supermicro
BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8 or above
TPM

1 TPM Header
Network Controllers

AIOM for LAN
M.2

M.2 Interface: 2 SATA/PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key
Chipset

Intel C741
DIMM Sizes

128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
BIOS Type

AMI UEFI
LAN

1 RJ45 Dedicated IPMI LAN portAIOM
Video Output

VGA D-Sub Connector port(s)
Dimension

8.44" x 18" (21.44cm x 45.72cm)
PCIe

1 PCIe 5.0 x16 AIOM, 1 PCIe 5.0 x16 Right Riser Slot
USB

2 USB 3.2 Gen1 port(s) (2 rear)
Form Factor

Proprietary FatTwin
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.1V
CPU

5th Gen Intel XeonSingle Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware

Trusted Platform Module (TPM) 2.0
Serial Port

1 COM Port(s) (1 header)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s**24GB & 48GB DIMM only support 1 DPC.*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Error Detection

Corrects single-bit errors
Core

Up to 64 cores
