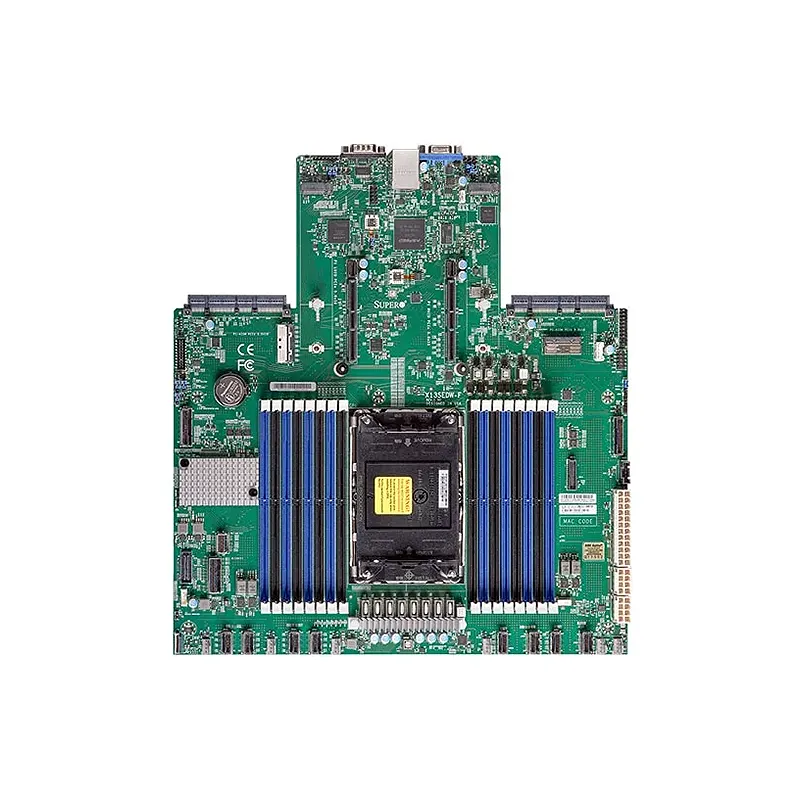

Supermicro MBD-X13SEDW-F

* NOTE: Image may not exactly match the product

Supermicro MBD-X13SEDW-F

The Supermicro MBD-X13SEDW-F is a high-performance server motherboard featuring Intel’s 13th generation Xeon E-2400 processor support with up to 8 cores. Key highlights include dual 10GbE networking for superior connectivity, support for up to 128GB ECC DDR5 memory across four DIMM slots, and comprehensive expansion capabilities with PCIe 5.0 and 4.0 slots. The board offers enterprise-grade reliability with IPMI 2.0 remote management, redundant power supply support, and hardware monitoring. Its compact microATX form factor makes it ideal for space-constrained environments while delivering workstation-class performance for virtualization, edge computing, and small business server applications. The integrated graphics, multiple SATA ports, and USB 3.2 connectivity provide versatile I/O options for diverse workloads.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorProprietary CloudDC
ChipsetIntel C741
Products StatusNew

Product SKUs

  • MBD-X13SEDW-F

Physical Stats

  • Form Factor
    Proprietary CloudDC
  • Dimension
    13″ x 13″ (33.02cm x 33.02cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    *BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
    **24GB & 48GB DIMM only support 1 DPC.
    *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    Intel C741 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 Aspeed AST2600 BMC port(s)
  • Network Controllers
    AIOM for LAN

Input / Output

  • SATA
    12 SATA3 (6Gbps) port(s)
  • LAN
    1 AIOM
    1 AIOM
  • USB
    2 USB 2.0 port(s) (2 via header)
    2 USB 3.2 Gen1 port(s) (2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 5.0 x8 AIOM,
    1 PCIe 5.0 x0 AIOM,
    2 PCIe 5.0 x16 4C slots,
    8 PCIe 5.0 x4 PCIe5.0 MCIO connector,
    1 PCIe 5.0 x8 PCIe5.0 MCIO connector
  • M.2
    M.2 Interface: 2 PCIe 3.0 x2
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5
    UEFI 2.8 or above
Brand

Supermicro
Application

Server
Form Factor

Proprietary CloudDC
Chipset

Intel C741
Products Status

New
Socket

LGA-1700
USB

2 USB 2.0 port(s) (2 via header)2 USB 3.2 Gen1 port(s) (2 rear)
BIOS Type

AMI UEFI
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s**24GB & 48GB DIMM only support 1 DPC.*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
Memory Voltage

1.1V
DIMM Sizes

128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
CPU

5th Gen Intel XeonSingle Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Error Detection

Corrects single-bit errors
SATA

12 SATA3 (6Gbps) port(s)
Dimension

13" x 13" (33.02cm x 33.02cm)
Network Controllers

AIOM for LAN
M.2

M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 5.0 x0 AIOM, 1 PCIe 5.0 x8 AIOM, 1 PCIe 5.0 x8 PCIe5.0 MCIO connector, 2 PCIe 5.0 x16 4C slots, 8 PCIe 5.0 x4 PCIe5.0 MCIO connector
TPM

1 TPM Header
BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8 or above
Cores

Up to 64 Cores
Video Output

1 VGA D-Sub Connector port(s)
LAN

1 AIOM1 AIOM
Serial Port

1 COM Port(s) (1 header)
Graphics

1 ASPEED AST2600 BMC port(s)
