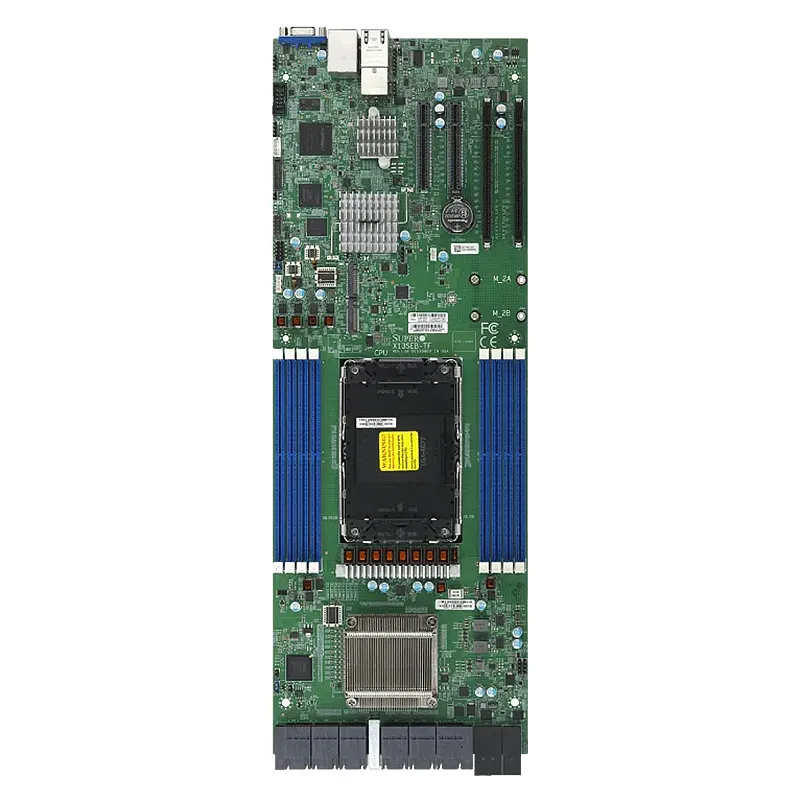

Supermicro MBD-X13SEB-TF

* NOTE: Image may not exactly match the product

Supermicro MBD-X13SEB-TF

The Supermicro MBD-X13SEB-TF is a high-performance server motherboard featuring the latest Intel Xeon Scalable processor socket (LGA4677) with support for DDR5 memory up to 1TB capacity. This enterprise-grade board delivers exceptional computing power with dual 10GbE networking, multiple PCIe 5.0 slots for maximum expansion flexibility, and comprehensive storage options including M.2 NVMe support. Built with Supermicro’s renowned reliability and energy efficiency, it offers advanced thermal management, remote management capabilities through IPMI, and robust security features. Ideal for data centers, cloud computing, and demanding enterprise applications, this motherboard provides scalable performance, reduced total cost of ownership, and future-proof architecture that adapts to evolving business needs while maintaining 24/7 operational reliability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorProprietary SBB
ChipsetIntel C741
Products StatusNew

Product SKUs

  • MBD-X13SEB-TF

Physical Stats

  • Form Factor
    Proprietary SBB
  • Dimension
    6.4″ x 17.2″ (16.256cm x 43.688cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    *BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
    *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C741
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers

Input / Output

  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
    1 RJ45 Dedicated IPMI LAN port
  • USB
    2 USB 3.1 Gen1 port(s) (2 rear)
  • Video Output
    VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 5.0 x8,
    2 PCIe 5.0 x16
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
Brand

Supermicro
Application

Server
Form Factor

Proprietary SBB
Chipset

Intel C741
Products Status

New
Socket

LGA-1700
USB

2 USB 3.1 Gen1 port(s) (2 rear)
Memory Capacity

8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Memory Voltage

1.1V
DIMM Sizes

128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
CPU

5th Gen Intel XeonSingle Socket LGA-4677 (E) supported, CPU TDP supports Up to 350W TDP
Error Detection

Corrects single-bit errors
SATA

10 SATA3 (6Gbps) port(s)
Dimension

6.4" x 17.2" (16.256cm x 43.688cm)
M.2

22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280
IPMI

ASPEED AST2600 BMC
PCIe

2 PCIe 5.0 x16, 2 PCIe 5.0 x8
TPM

1 TPM Header
Cores

Up to 64 Cores
Video Output

VGA D-Sub Connector port(s)
LAN

2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Serial Port

1 COM Port(s) (1 header)
