Product SKUs

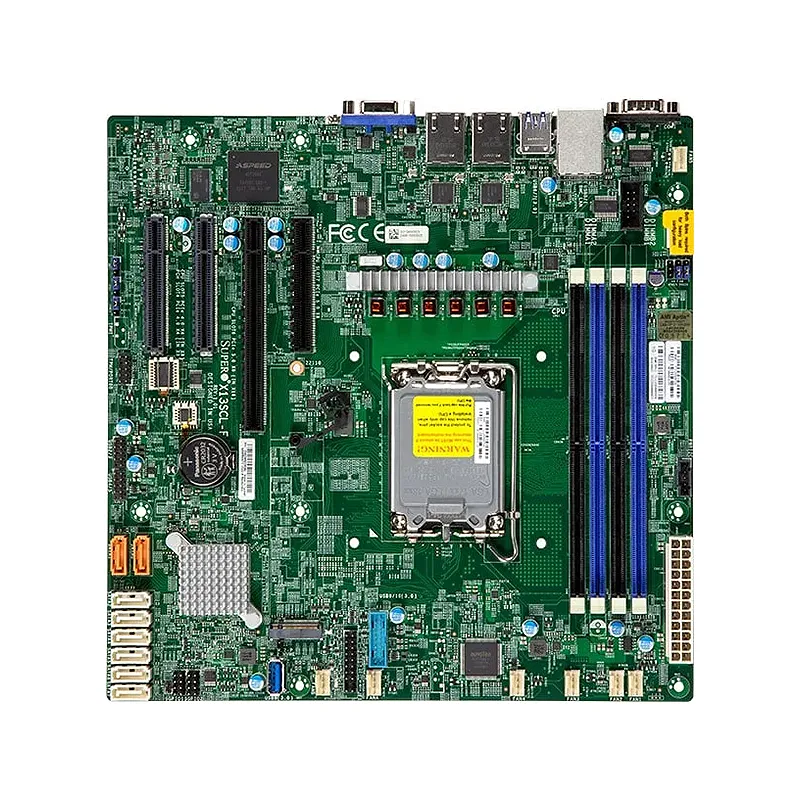

- MBD-X13SCL-F
Physical Stats
- Form Factor
microATX
- Dimension
9.6″ x 9.6″ (24.38cm x 24.38cm)
Processor
- CPU
Intel Xeon E-2400/Pentium* Processor
Single Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
*Pentium G7400 and G7400T - Core
Up to 8 cores
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s - Memory Type
4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
- DIMM Sizes
8GB, 16GB, 32GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C262
- SATA
Intel C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 Aspeed AST2600 BMC port(s)
- Network Controllers
Dual LAN with 1GbE with Intel I210
Input / Output
- SATA
8 SATA3 (6Gbps) port(s)
- LAN
1 RJ45 Dedicated IPMI LAN port
- USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- TPM
1 TPM Header
Expansion Slots
- PCIe
2 PCIe 4.0 x4 (in x8 slot),
1 PCIe 5.0 x8,
1 PCIe 5.0 x8 (in x16 slot) - M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Management
- Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
