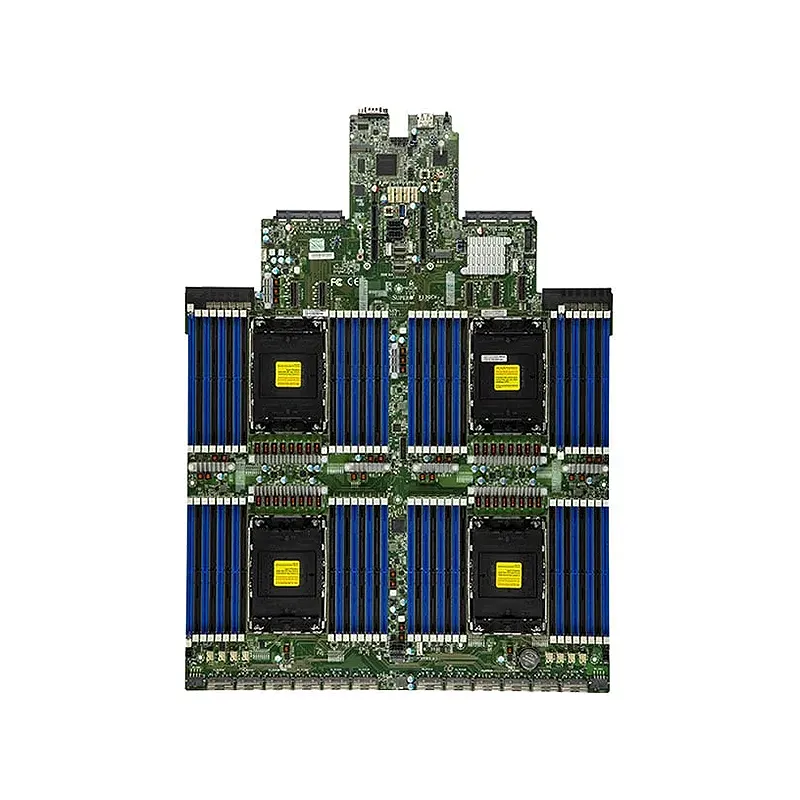

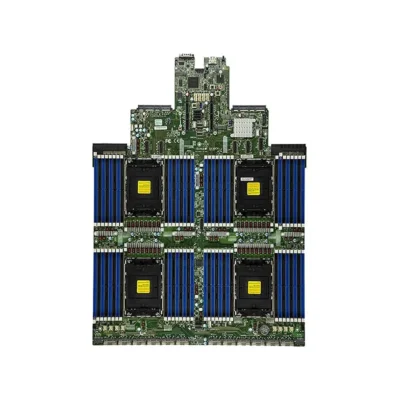

Supermicro MBD-X13QEH+

The Supermicro MBD-X13QEH is a high-performance server motherboard featuring the Intel C741 chipset and dual LGA4677 sockets supporting 4th Gen Intel Xeon Scalable processors. Key features include 32 DDR5 DIMM slots supporting up to 8TB of memory, 8x PCIe 5.0 x16 slots for maximum expansion capability, and dual 25GbE networking ports for high-speed connectivity. The board offers exceptional I/O with multiple M.2 slots, SATA ports, and USB connections. Built for enterprise workloads, it delivers superior processing power, massive memory capacity, and extensive expansion options, making it ideal for data centers, virtualization, AI/ML applications, and high-performance computing environments requiring maximum scalability and reliability.

Quote1 Piece(MOQ)

Inquiry

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GB, 256GBRDIMM: 16GB, 32GB, 64GB
BIOS Type	AMI 64MB AMI UEFI

Description
Additional information

Product SKUs

MBD-X13QEH+

Physical Stats

Form Factor
Proprietary
Dimension
16.8″ x 22.87″ (426.72cm x 580.9cm)

Processor

CPU
4th Gen Intel Xeon Scalable processors
Quad Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Core
Up to 64 cores

System Memory

Memory Capacity
64 DIMM slots
Up to 16TB 3DS ECC RDIMM, DDR5-4800MT/s
Memory Type
4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C741
Network Controllers

Input / Output

USB
2 USB port(s) (2 rear type A)
Serial Port
1 COM Port(s) (1 rear)

Expansion Slots

PCIe

System BIOS

BIOS Type
AMI 64MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GB, 256GBRDIMM: 16GB, 32GB, 64GB
BIOS Type	AMI 64MB AMI UEFI
Dimension	16.8" x 22.87" (426.72cm x 580.9cm)
USB	2 USB port(s) (2 rear type A)
Form Factor	Proprietary
Memory Type	4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
Application	Server
Memory Voltage	1.1V
CPU	4th Gen Intel Xeon Scalable processorsQuad Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Serial Port	1 COM Port(s) (1 rear)
Memory Capacity	64 DIMM slotsUp to 16TB 3DS ECC RDIMM, DDR5-4800MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 64 cores
