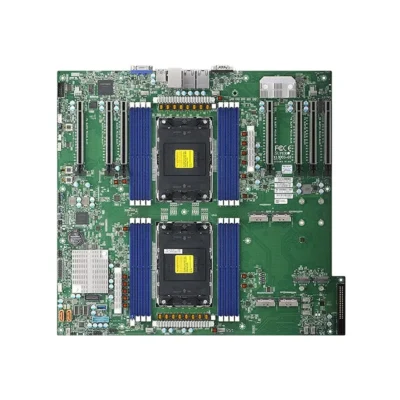

Supermicro MBD-X13DEG-QT

* NOTE: Image may not exactly match the product

Supermicro MBD-X13DEG-QT

The Supermicro MBD-X13DEG-QT is a high-performance dual-socket motherboard designed for enterprise workstations and servers requiring exceptional processing power. Built on the Intel C741 chipset, it supports dual 4th Gen Intel Xeon Scalable processors with up to 56 cores per CPU, delivering massive parallel computing capabilities for demanding applications like AI/ML, scientific computing, and virtualization.

Key features include support for up to 4TB of DDR5-4800 ECC memory across 16 DIMM slots, ensuring superior data integrity and bandwidth. The board offers extensive I/O connectivity with multiple PCIe 5.0 slots for high-speed expansion cards, dual 25GbE networking ports for ultra-fast data transfer, and comprehensive storage options including M.2 NVMe slots and SATA connectors.

The motherboard’s compact E-ATX form factor maximizes performance density while maintaining excellent thermal management through optimized component placement. Advanced management features include IPMI 2.0 with dedicated LAN for remote monitoring and control. Built with Supermicro’s renowned reliability and backed by extensive validation testing, the X13DEG-QT delivers enterprise-grade stability for mission-critical workloads while offering exceptional scalability for future growth requirements.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandSupermicro
BIOS FeaturesACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM1 TPM Header
Network ControllersDual LAN with 10GBase-T with Intel X550
M.2M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key

Product SKUs

  • MBD-X13DEG-QT

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    14.567″ x 15.866″ (37cm x 40.2996cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
    Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
  • Memory Type
    5600/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 5600MT/s
  • DIMM Sizes
    16GB, 32GB, 64GB, 96GB, 128GB, 256GB
    RDIMM: Up to 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
    2 SATA3 (6 Gbps) ports; RAID 0,1
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X550

Input / Output

  • USB
    7 USB 3 port(s) (1 type A; 2 headers; 1 rear type C; 3 rear type A)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    7 PCIe 5.0 x16
  • M.2
    M.2 Interface: 2 PCIe 5.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 2.8/3.5
    UEFI 2.8A
    Plug and Play (PnP)
    PCI FW 3.2
Brand

Supermicro
BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X550
M.2

M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key
Chipset

Intel C741
DIMM Sizes

128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96GB
BIOS Type

AMI 32MB AMI UEFI
Video Output

1 VGA D-Sub Connector port(s)
Dimension

14.567" x 15.866" (37cm x 40.2996cm)
PCIe

7 PCIe 5.0 x16
USB

7 USB 3 port(s) (1 type A; 2 headers; 1 rear type C; 3 rear type A)
Form Factor

Proprietary
Memory Type

5600/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 5600MT/s
Application

Server
Memory Voltage

1.1V
CPU

5th Gen Intel XeonDual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

1, 102 SATA3 (6 Gbps) ports; RAID 0, 5, 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection

Detects double-bit errors (using ECC memory)
Core

Up to 64 cores
