| Brand | Supermicro |
|---|---|
| Application | Server |
| Form Factor | Proprietary |
| Chipset | Intel C741 |
| Products Status | New |
| Socket | LGA-4677 |
| BIOS Type | AMI 32MB AMI UEFI |
| Memory Capacity | 32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-5600MT/s |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC) |
| Memory Voltage | 1.1V |
| DIMM Sizes | 128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB |
| CPU | 5th Gen Intel XeonDual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| SATA | Intel C741 controller for 8 SATA3 ports |
| Dimension | 15" x 17" (38.1cm x 43.18cm) |
| M.2 | 2280Key: M-Key, M.2 Interface: 2 PCIe 3.0 x2Form Factor: 22110 |
| PCIe | 1 PCIe 5.0 x16 AIOM, 12 PCIe 5.0 x8 PCIe5.0 MCIO connector |
| BIOS Features | ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2 |
| Cores | Up to 64 Cores |
* NOTE: Image may not exactly match the product

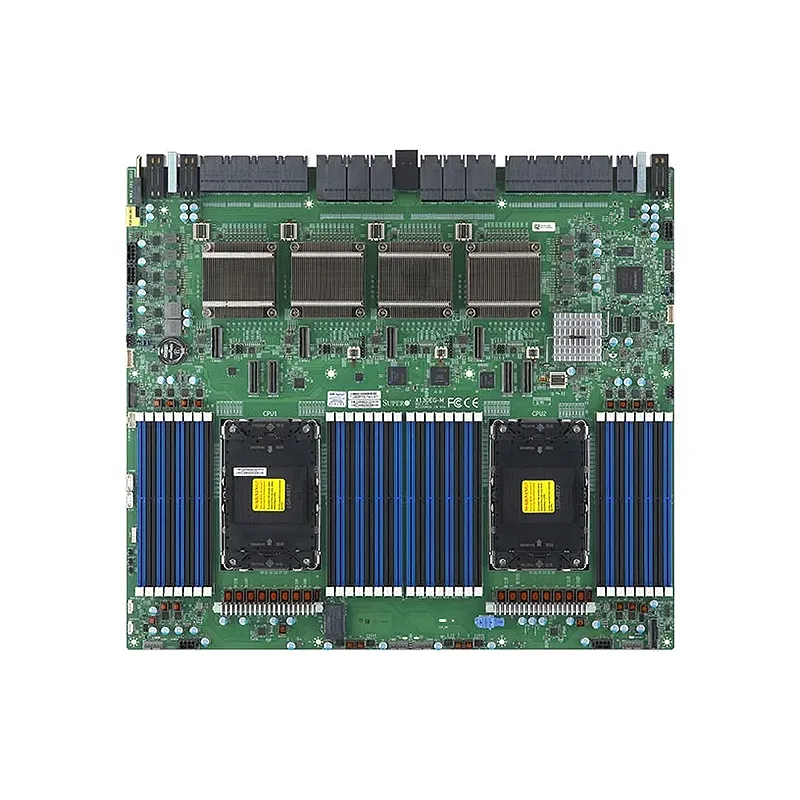

Supermicro MBD-X13DEG-M
The Supermicro MBD-X13DEG-M is a high-performance micro-ATX server motherboard designed for demanding enterprise applications. Built on the Intel C741 chipset, it supports 4th Gen Intel Xeon Scalable processors with up to 40 cores, delivering exceptional computational power in a compact form factor.
**Key Features:**
– Supports up to 2TB DDR5-4800 ECC memory across 8 DIMM slots
– Dual 10GbE LAN ports for high-speed networking
– Multiple PCIe 5.0 and 4.0 expansion slots for maximum flexibility
– IPMI 2.0 with dedicated management port for remote administration
– Comprehensive storage options including M.2 NVMe and SATA connectors
**Benefits:**
– Space-efficient design ideal for edge computing and compact server deployments
– Enterprise-grade reliability with ECC memory support and robust power delivery
– Future-proof connectivity with latest PCIe 5.0 and DDR5 technologies
– Reduced total cost of ownership through integrated management features
**Unique Selling Points:**
– Rare combination of high-end Xeon scalability in micro-ATX format
– Supermicro’s proven server-grade engineering and quality
– Optimized for virtualization, AI workloads, and high-density computing environments
– Comprehensive I/O options typically found only in larger form factors
