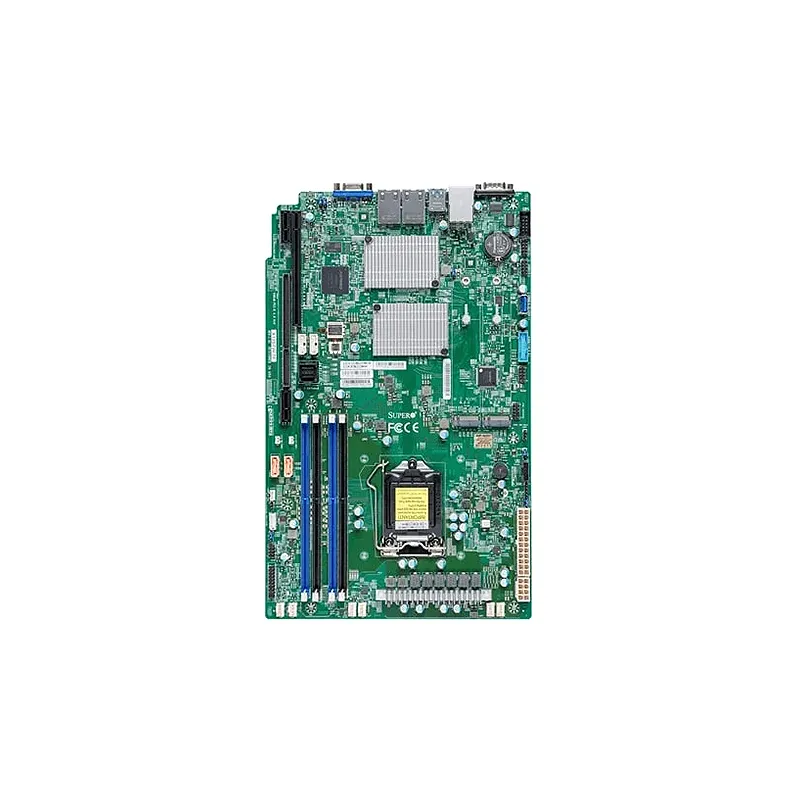

Supermicro MBD-X12STW-TF

* NOTE: Image may not exactly match the product

Supermicro MBD-X12STW-TF

The Supermicro MBD-X12STW-TF is a high-performance mini-ITX motherboard designed for compact workstations and edge computing applications. Built on Intel’s C252 chipset, it supports 12th generation Intel Xeon W processors, delivering exceptional processing power in a space-efficient form factor. Key features include dual 10GbE networking ports for high-speed connectivity, support for up to 128GB DDR4 ECC memory, and multiple PCIe slots for expansion flexibility. The board offers comprehensive I/O options including USB 3.2, SATA 6Gb/s ports, and M.2 slots for NVMe storage. Its unique selling points include enterprise-grade reliability with ECC memory support, advanced thermal management for sustained performance, and IPMI 2.0 for remote management capabilities. This motherboard is ideal for professionals requiring workstation-class performance in compact systems, edge servers, or specialized industrial applications where space is premium but performance cannot be compromised.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorProprietary WIO
ChipsetIntel C256
Products StatusNew

Product SKUs

  • MBD-X12STW-TF

Physical Stats

  • Form Factor
    Proprietary WIO
  • Dimension
    8″ x 13″ (20.32cm x 33.02cm)

Processor

  • CPU
    10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
    Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores, 16 threads

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s SDRAM
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C256
  • SATA
    Intel C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with Intel X550 10GBase-T Ethernet Controller

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    1 USB 3.2 Gen2 port(s) (1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 Left Riser Slot,
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    Double Height Connector

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 3.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Proprietary WIO
Chipset

Intel C256
Products Status

New
Socket

LGA-1200
USB

6 USB 2.0 port(s) (4 via header; 2 rear)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)1 USB 3.2 Gen2 port(s) (1 type A)
BIOS Type

256MB UEFI
Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
Memory Type

3200/2933/2666 MT/s SDRAM
Memory Voltage

1.2V
DIMM Sizes

16GB, 32GB, 4GB, 8GB
CPU

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, CPU TDP supports Up to 95W TDP
Error Detection

Corrects single-bit errors
SATA

8 SATA3 (6Gbps) port(s)
Dimension

8" x 13" (20.32cm x 33.02cm)
Network Controllers

Dual LAN with Intel X550 10GBase-T Ethernet Controller
M.2

M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 4.0 x16 Left Riser Slot
TPM

1 TPM Header
BIOS Features

ACPI 6.0SMBIOS 3.3Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Cores

16 threads, Up to 8 cores
Video Output

1 VGA port(s)
LAN

2 RJ45 10 Gigabit Ethernet LAN ports
Serial Port

2 COM Port(s) (1 header; 1 rear)
Graphics

1 ASPEED AST2600 BMC port(s)
