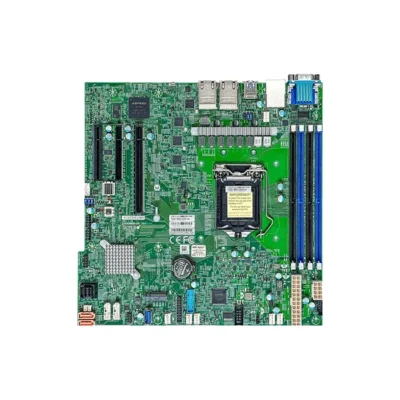

Supermicro MBD-X12STH-LN4F

* NOTE: Image may not exactly match the product

Supermicro MBD-X12STH-LN4F

The Supermicro MBD-X12STH-LN4F is a high-performance server motherboard featuring Intel’s 12th generation Xeon W-1300 and Core processor support with LGA1700 socket. Key highlights include quad 10GbE LAN ports for exceptional network throughput, dual M.2 slots for NVMe storage, and support for up to 128GB DDR4 ECC memory. The board offers enterprise-grade reliability with IPMI 2.0 remote management, dual BIOS protection, and comprehensive I/O including multiple PCIe 4.0 slots. Its compact micro-ATX form factor makes it ideal for space-constrained environments while delivering workstation-class performance for demanding applications like virtualization, content creation, and network-intensive workloads. The integrated quad 10GbE networking eliminates the need for additional network cards, reducing costs and complexity.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
ApplicationServer
Form FactorMicro-ATX
ChipsetIntel C256
Products StatusNew

Product SKUs

  • MBD-X12STH-LN4F

Physical Stats

  • Form Factor
    Micro-ATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores, 16 threads

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s SDRAM
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C256
  • SATA
    Intel C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Quad LAN with Intel Ethernet Controller I210

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • LAN
    4 RJ45 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x4 (in x8 slot),
    1 PCIe 4.0 x16,
    1 PCIe 4.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 2.7
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Micro-ATX
Chipset

Intel C256
Products Status

New
Socket

LGA-1200
USB

6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
BIOS Type

256MB UEFI
Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
Memory Type

3200/2933/2666 MT/s SDRAM
Memory Voltage

1.2V
DIMM Sizes

16GB, 32GB, 4GB, 8GB
CPU

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, CPU TDP supports Up to 95W TDP
Error Detection

Corrects single-bit errors
SATA

8 SATA3 (6Gbps) port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
Network Controllers

Quad LAN with Intel Ethernet Controller I210
M.2

M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 4.0 x16, 1 PCIe 4.0 x4 (in x8 slot)
TPM

1 TPM Header
BIOS Features

ACPI 6.0SMBIOS 2.7Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Cores

16 threads, Up to 8 cores
Video Output

1 VGA port(s)
LAN

4 RJ45 Gigabit Ethernet LAN ports
Serial Port

2 COM Port(s) (1 header; 1 rear)
Graphics

1 ASPEED AST2600 BMC port(s)
