Product SKUs

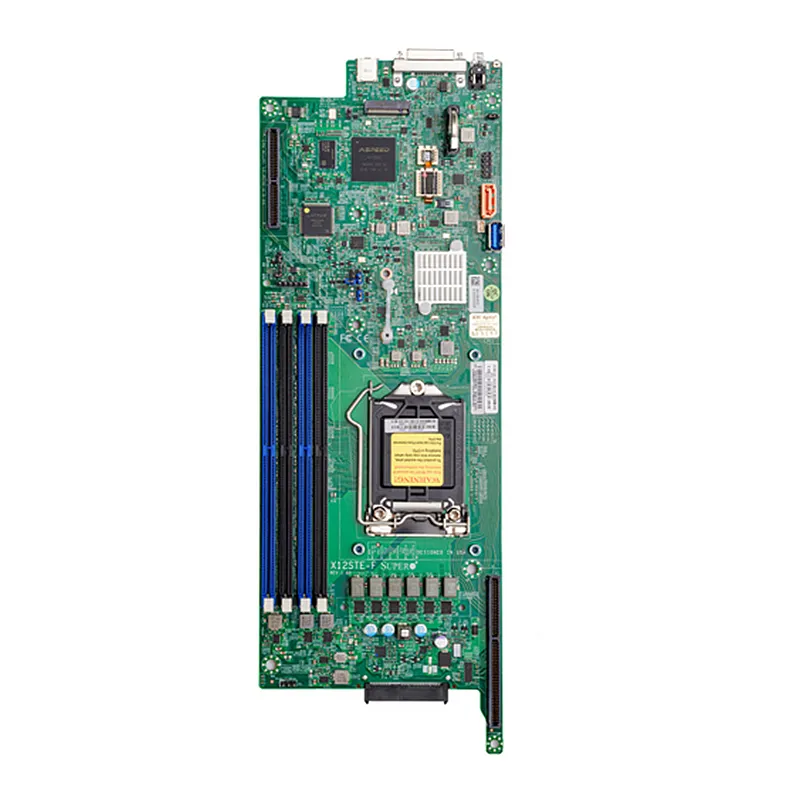

- MBD-X12STE-F
Physical Stats
- Form Factor
Proprietary
- Dimension
4.6″ x 13.09″ (11.7cm x 33.24cm)
Processor
- CPU
Intel Pentium, Intel Xeon E-2300 Processor
Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s
- DIMM Sizes
4GB, 8GB, 16GB, 32GB
- Memory Voltage
1.2V
- Error Detection
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C256
- SATA
Intel C256 controller for 7 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Single LAN with ASPEED AST2600 BMC
Input / Output
- SATA
6 SATA3 port(s)
- USB
3 USB port(s) (2 type A Via KVM connector; 1 type C)
- Video Output
1 VGA port(s) Via KVM connector
- Serial Port
1 COM Port(s) (1 Serial Port Via KVM connector)
- DOM
1 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x8 (Micro Low Profile),
1 PCIe 4.0 x8 for Add-On-Module (AOM) - M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
256MB SPI Flash with AMI BIOS
- BIOS Features
ACPI 6.0 or later
Plug and Play (PnP)
BIOS rescue hot keys
SMBIOS 3.0 or later
Management
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
